MAKINO A-51NX
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MAKINO
Model:
A-51NX
Condition:
Not Specified
Year:
2015
Stock #:
35630
Status:
Sold
Description:
MAKINO A-51NX
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

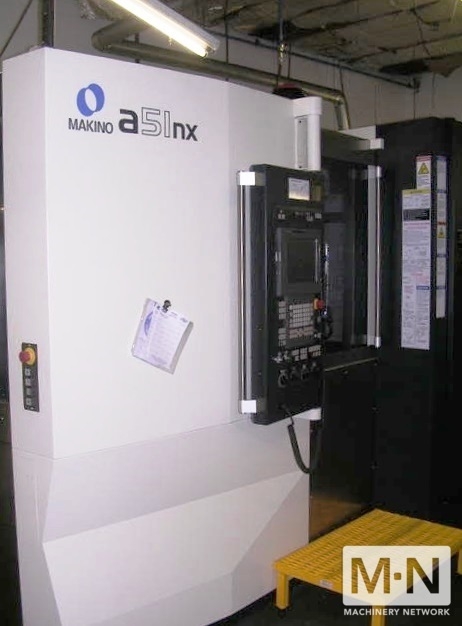

(1) USED MAKINO a-51nx 4-AXIS CNC HORIZONTAL MACHINING CENTER
** 1,000 HOURS / BUILT 2014 - DELIVERED AND INSTALLED IN 2015 **
SPECIFICATIONS:
PALLET SIZE:...........................15.7" X 15.7" (2)
X-AXIS TRAVEL:.........................22"
Y-AXIS TRAVEL:.........................25"
Z-AXIS TRAVEL:.........................25"
SPINDLE SPEED:.........................14,000 RPM
SPINDLE TAPER:.........................CT 40
TABLE INDEXING:........................001 DEGREE (4 AXIS)
TOOL CAPACITY:.........................60 ATC
RAPID TRAVERSE:........................2,362 IPM
CURRENT ELECTRICAL ARRANGEMENT:........440/480/3/60
EQUIPPED WITH:

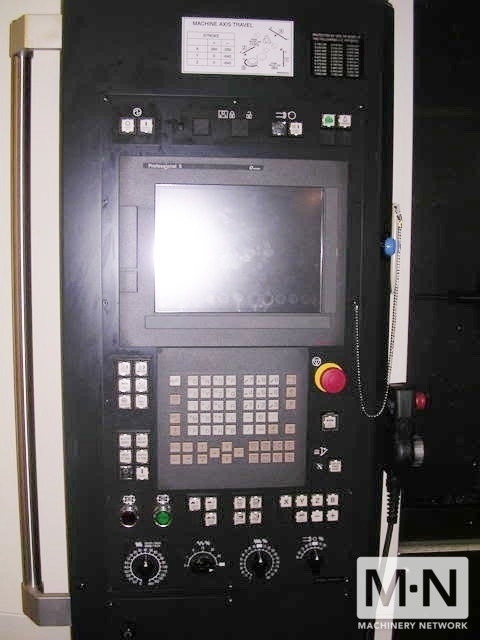

MAKINO FANUC PROFESSIONAL 5 CONTROL
CAT-40 SPINDLE INTERFACE
JIS RETENTION STUD
DD MOTOR ROTARY TABLE

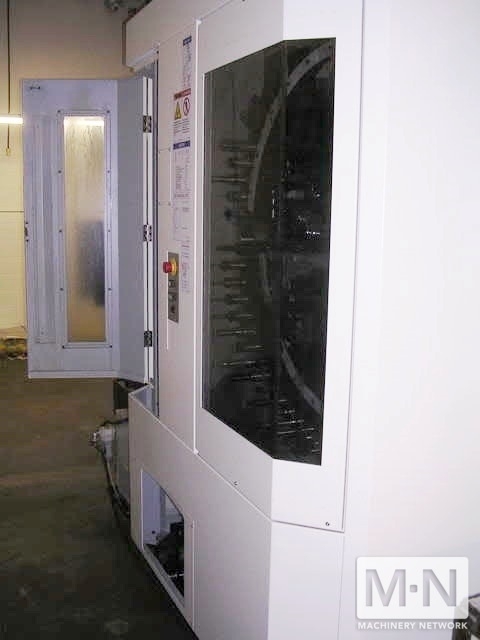

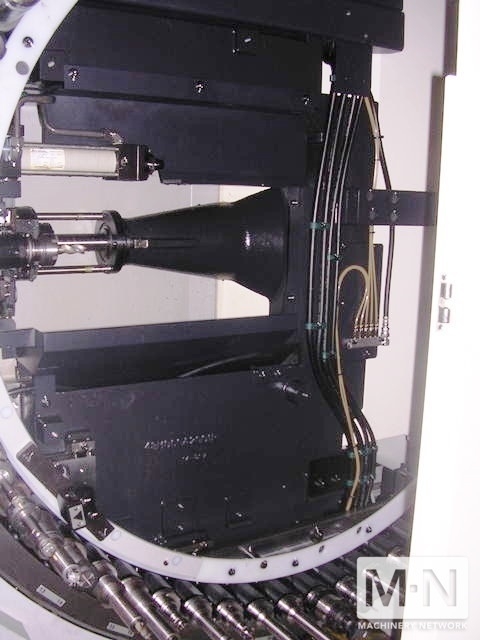

60 POSITION TOOL CHANGER
48 WORK OFFSETS
ATC DOOR INTERLOCK
RIGID TAP
AUTO PALLET CHANGER
AUTO SPLASH GUARD
AIR DRYER
AUTO LUBE
HELICAL INTERPOLATION
CHIP CONVEYOR
TOMBSTONES ( AVAILABLE AT EXTRA COST )
FLOOD COOLANT
RENISHAW PROBE
MISCELLANEOUS TOOLING ( AVAILABLE AT EXTRA COST )
NONLINEAR INTERPOLATION TYPE POSITIONING
PROGRAM STORAGE TO 1050 FT. (320 M) (128 KB)
REGISTERED PROGRAM NUMBER: 63
DATA CENTER 4 MB
TOOL OFFSETS PAIRS (TOTAL): 99
TOOL OFFSET MEMORY TYPE A
CUSTOM MACRO (COMMON VARIABLES: 100)
ECO MODE FUNCTIONS
GI.4 CONTROL
PALLET CLAMP CONFIRMATION FUNCTION
400 MM TAPPED HOLE PALLET SPECIFICATION (FOR 2 PALLETS)
24 OF M16 TAPS
EIGHT (8) NOZZLE COOLANT
OVERHEAD SHOWER COOLANT SYSTEM
22 NOZZLES
TERRACE WASHING COOLANT
300 PSI THROUGH SPINDLE COOLANT AND AIR
50/60HZ 30L/MIN
WATER SOLUBLE COOLANT
WATER-BASED COOLANT IS RECOMMENDED TO AVOID CAUSING A FIRE.
30000 LIFT-UP CHIP CONVEYOR
REAR (LEFT) DISCHARGE LIFT-UP CONVEYOR. TANK CAPACITY 515L (136 GALLONS)
AUTOMATIC SPLASH GUARD
LED LIGHT (1 PC.)
OPERATOR DOOR LOCK (OPERATION MODE)
AIR DRYER
AUTOMATIC FIRE EXTINGUISHER INTERFACE
AUTOMATIC FIRE EXTINGUISHER AND POWER SUPPLY ARE PREPARED AND CARRIED OUT.
PORTABLE MANUAL PULSE GENERATOR WITH HANDLE ENABLE BUTTON
SIGNAL LIGHT 3-LAYER
INDICATE COLOR IN THE ALLOTTED SPACE (WITHOUT INDICATION:YELLOW, RED AND)
LANGUAGE (ENGLISH)
PRO.5 SCREEN (ENGLISH)
MANUAL SET MAKINO (ENGLISH)
FANUC ELECTRONIC MANUAL (ENGLISH/JAPANESE)
OPERATION PANEL (ENGLISH)
LEGEND PLATE (ENGLISH)
** 1,000 HOURS / BUILT 2014 - DELIVERED AND INSTALLED IN 2015 **
SPECIFICATIONS:
PALLET SIZE:...........................15.7" X 15.7" (2)
X-AXIS TRAVEL:.........................22"
Y-AXIS TRAVEL:.........................25"
Z-AXIS TRAVEL:.........................25"
SPINDLE SPEED:.........................14,000 RPM
SPINDLE TAPER:.........................CT 40
TABLE INDEXING:........................001 DEGREE (4 AXIS)
TOOL CAPACITY:.........................60 ATC
RAPID TRAVERSE:........................2,362 IPM
CURRENT ELECTRICAL ARRANGEMENT:........440/480/3/60
EQUIPPED WITH:
MAKINO FANUC PROFESSIONAL 5 CONTROL
CAT-40 SPINDLE INTERFACE
JIS RETENTION STUD
DD MOTOR ROTARY TABLE
60 POSITION TOOL CHANGER
48 WORK OFFSETS
ATC DOOR INTERLOCK
RIGID TAP
AUTO PALLET CHANGER
AUTO SPLASH GUARD
AIR DRYER
AUTO LUBE
HELICAL INTERPOLATION
CHIP CONVEYOR
TOMBSTONES ( AVAILABLE AT EXTRA COST )
FLOOD COOLANT
RENISHAW PROBE
MISCELLANEOUS TOOLING ( AVAILABLE AT EXTRA COST )
NONLINEAR INTERPOLATION TYPE POSITIONING
PROGRAM STORAGE TO 1050 FT. (320 M) (128 KB)
REGISTERED PROGRAM NUMBER: 63
DATA CENTER 4 MB
TOOL OFFSETS PAIRS (TOTAL): 99
TOOL OFFSET MEMORY TYPE A
CUSTOM MACRO (COMMON VARIABLES: 100)
ECO MODE FUNCTIONS
GI.4 CONTROL
PALLET CLAMP CONFIRMATION FUNCTION
400 MM TAPPED HOLE PALLET SPECIFICATION (FOR 2 PALLETS)
24 OF M16 TAPS
EIGHT (8) NOZZLE COOLANT
OVERHEAD SHOWER COOLANT SYSTEM
22 NOZZLES
TERRACE WASHING COOLANT
300 PSI THROUGH SPINDLE COOLANT AND AIR
50/60HZ 30L/MIN
WATER SOLUBLE COOLANT
WATER-BASED COOLANT IS RECOMMENDED TO AVOID CAUSING A FIRE.
30000 LIFT-UP CHIP CONVEYOR
REAR (LEFT) DISCHARGE LIFT-UP CONVEYOR. TANK CAPACITY 515L (136 GALLONS)
AUTOMATIC SPLASH GUARD
LED LIGHT (1 PC.)
OPERATOR DOOR LOCK (OPERATION MODE)
AIR DRYER
AUTOMATIC FIRE EXTINGUISHER INTERFACE
AUTOMATIC FIRE EXTINGUISHER AND POWER SUPPLY ARE PREPARED AND CARRIED OUT.
PORTABLE MANUAL PULSE GENERATOR WITH HANDLE ENABLE BUTTON
SIGNAL LIGHT 3-LAYER
INDICATE COLOR IN THE ALLOTTED SPACE (WITHOUT INDICATION:YELLOW, RED AND)
LANGUAGE (ENGLISH)
PRO.5 SCREEN (ENGLISH)
MANUAL SET MAKINO (ENGLISH)
FANUC ELECTRONIC MANUAL (ENGLISH/JAPANESE)
OPERATION PANEL (ENGLISH)
LEGEND PLATE (ENGLISH)
