MORI SEIKI MV35/40
Type:
Vertical Machining Centers
Manufacturer:
MORI SEIKI
Model:
MV35/40
Condition:
Not Specified
Stock #:
36491
Status:
Sold
Description:
30" X 13.8" Travels 6,000 rpm Fanuc 6M Control
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

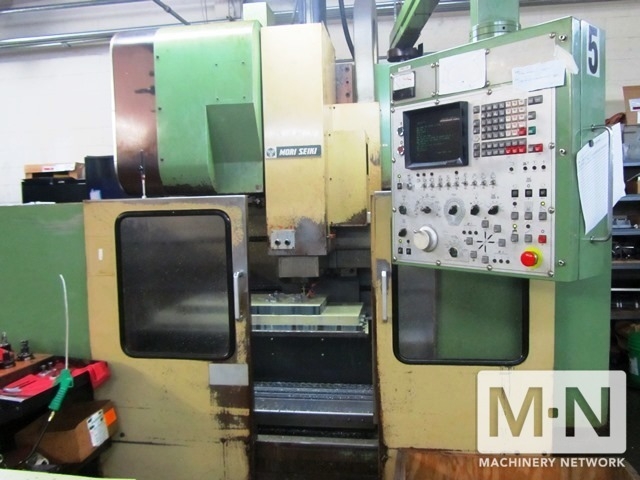

USED MORI MV35/40 VERTICAL MACHINING CENTER
WITH FANUC 6M CNC CONTROL
SPECIFICATIONS
TABLE DIMENSIONS ------------------------------- 43.3" x 13.8"
X-AXIS -------------------------------------------------- 30"
Y-AXIS -------------------------------------------------- 13.8"
Z-AXIS -------------------------------------------------- 17.7"
DIST. SPINDLE NOSE TO TABLE TOP ---------- 5.91" - 23.62"
DIST. SPINDLE CENTER - COLUMN FRONT-- 15"
DIST. TABLE CENTER COLUMN FRONT ------9.843" - 21.85"
DIST. TABLE TOP TO FLOOR -------------------- 31.5"
T-SLOTS x DIMENSION x PITCH ---------------- 3 x 18 x 100
ALLOWABLE LOAD ON TABLE ---------------- 1,102 LBS.
SPINDLE HOLE TAPER ---------------------------- #40
SPINDLE FRONT BEARING DIA. --------------- 2.559"
SPINDLE MOTOR ----------------------------------- 7.4 HP/10.1 HP
OVERALL MACHINE HEIGHT ------------------ 98.4"
MACHINE DIMENSIONS ------------------------- 204.8" x 133.5"
MACHINE WEIGHT --------------------------------14,550 LBS.
MIN. AXES MOVEMENT ------------------------ .0001"
SPINDLE SPEED ----------------------------------- 170 - 6,000 RPM
SPINDLE SPEED CHANGE --------------------- 1 RPM INCREMENT
RAPID FEED --------------------------------------- 472"/MIN.
CUTTING FEED ---------------------------------- .01 - 141 IN./MIN.
JOG FEED ------------------------------------------ 0-80 IN./MIN.
TOOL SHANK SHAPE -------------------------- BT40
ATC CYCLE TIME ------------------------------ 13 SEC.
TOOL LOADING POCKET PITCH ---------- 4.3"
MAX. TOOL DIA. ------------------------------- 4.9"
MAX. TOOL LENGTH ------------------------- 9.8"
MAX. TOOL WEIGHT ------------------------- 22 LBS.
COOLANT TANK CAPACITY -------------- 30 GALLONS
VOLTAGE --------------------------------------- 220/3/60
LOAD -------------------------------------------- 25.0 KVA
EQUIPPED WITH

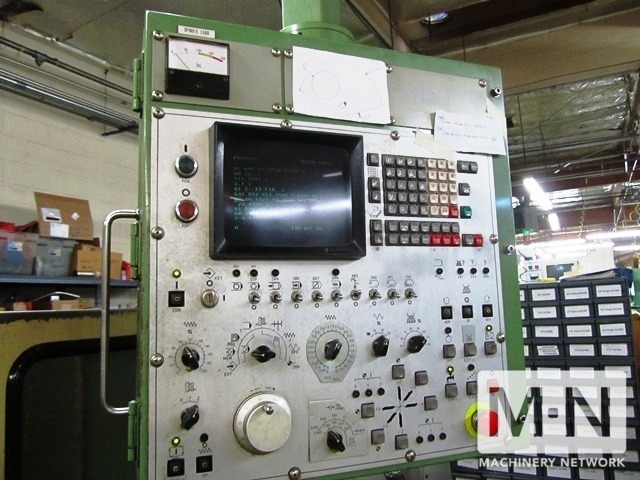

FANUC 6M CONTROL

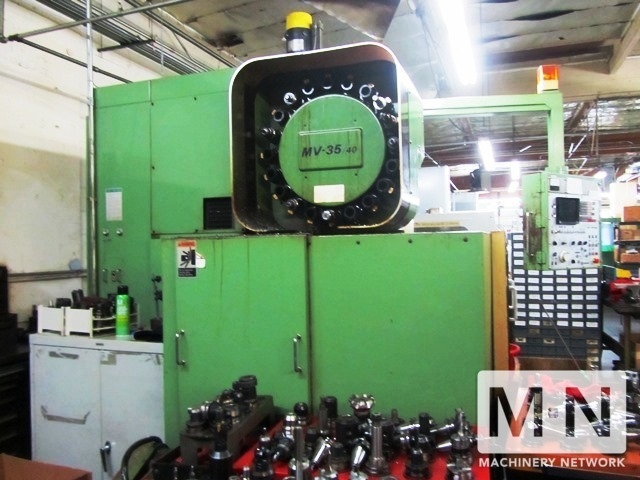

20 TOOL ATC
CHIP CONVEYOR
AUTOMATIC WAY LUBE SYSTEM
All available Manuals
Under Power Ready to Inspect
Location: Los Angeles, CA
WITH FANUC 6M CNC CONTROL
SPECIFICATIONS
TABLE DIMENSIONS ------------------------------- 43.3" x 13.8"
X-AXIS -------------------------------------------------- 30"
Y-AXIS -------------------------------------------------- 13.8"
Z-AXIS -------------------------------------------------- 17.7"
DIST. SPINDLE NOSE TO TABLE TOP ---------- 5.91" - 23.62"
DIST. SPINDLE CENTER - COLUMN FRONT-- 15"
DIST. TABLE CENTER COLUMN FRONT ------9.843" - 21.85"
DIST. TABLE TOP TO FLOOR -------------------- 31.5"
T-SLOTS x DIMENSION x PITCH ---------------- 3 x 18 x 100
ALLOWABLE LOAD ON TABLE ---------------- 1,102 LBS.
SPINDLE HOLE TAPER ---------------------------- #40
SPINDLE FRONT BEARING DIA. --------------- 2.559"
SPINDLE MOTOR ----------------------------------- 7.4 HP/10.1 HP
OVERALL MACHINE HEIGHT ------------------ 98.4"
MACHINE DIMENSIONS ------------------------- 204.8" x 133.5"
MACHINE WEIGHT --------------------------------14,550 LBS.
MIN. AXES MOVEMENT ------------------------ .0001"
SPINDLE SPEED ----------------------------------- 170 - 6,000 RPM
SPINDLE SPEED CHANGE --------------------- 1 RPM INCREMENT
RAPID FEED --------------------------------------- 472"/MIN.
CUTTING FEED ---------------------------------- .01 - 141 IN./MIN.
JOG FEED ------------------------------------------ 0-80 IN./MIN.
TOOL SHANK SHAPE -------------------------- BT40
ATC CYCLE TIME ------------------------------ 13 SEC.
TOOL LOADING POCKET PITCH ---------- 4.3"
MAX. TOOL DIA. ------------------------------- 4.9"
MAX. TOOL LENGTH ------------------------- 9.8"
MAX. TOOL WEIGHT ------------------------- 22 LBS.
COOLANT TANK CAPACITY -------------- 30 GALLONS
VOLTAGE --------------------------------------- 220/3/60
LOAD -------------------------------------------- 25.0 KVA
EQUIPPED WITH
FANUC 6M CONTROL
20 TOOL ATC
CHIP CONVEYOR
AUTOMATIC WAY LUBE SYSTEM
All available Manuals
Under Power Ready to Inspect
Location: Los Angeles, CA
