MORI SEIKI NMV-3000
Type:
Vertical Machining Centers
Manufacturer:
MORI SEIKI
Model:
NMV-3000
Condition:
Not Specified
Year:
2010
Stock #:
33401
Status:
Sold
Description:

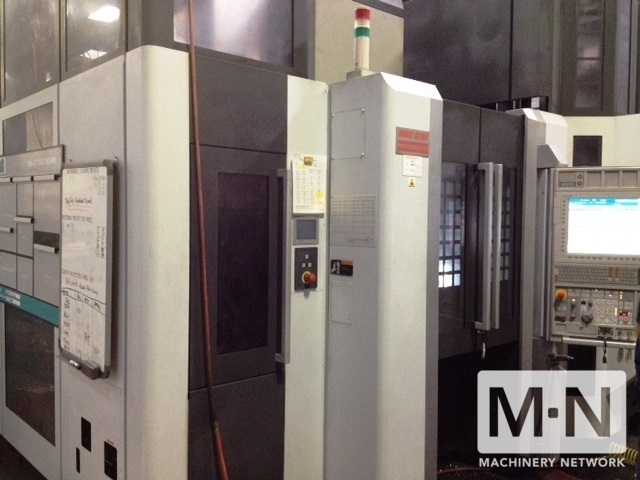

MORI SEIKI NMV-3000, MSX-711V MAPPS IV CONTROL, 19"x13"x20" B&C AXIS, 20K RPM,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

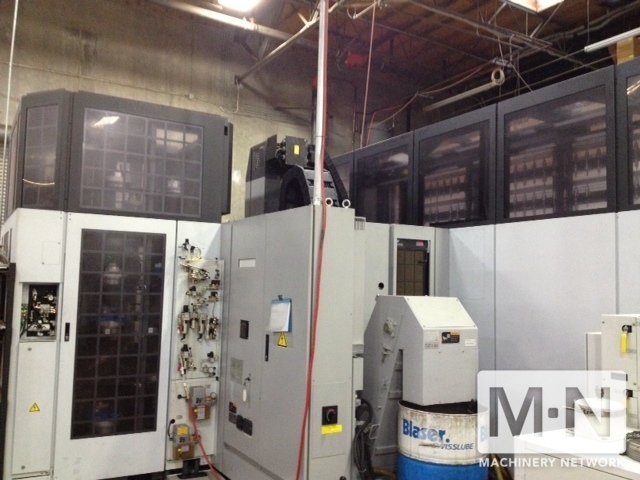

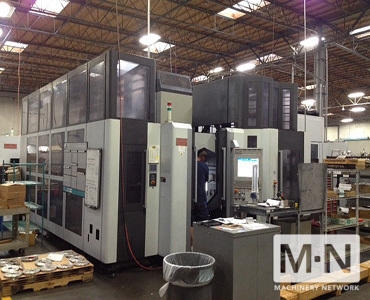

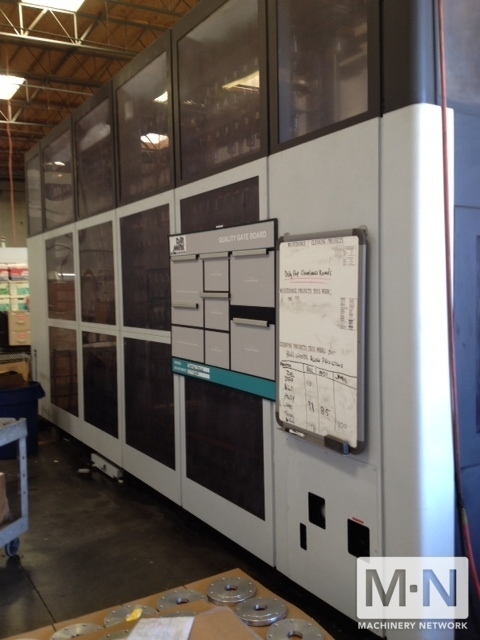

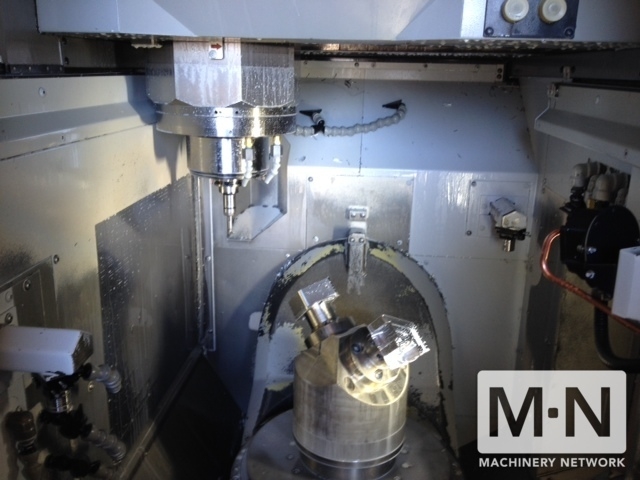

(1) USED MORI SEIKI NMV 3000 DCG 5-AXIS 34 AWC PALLET SYSTEM
NEW 2010

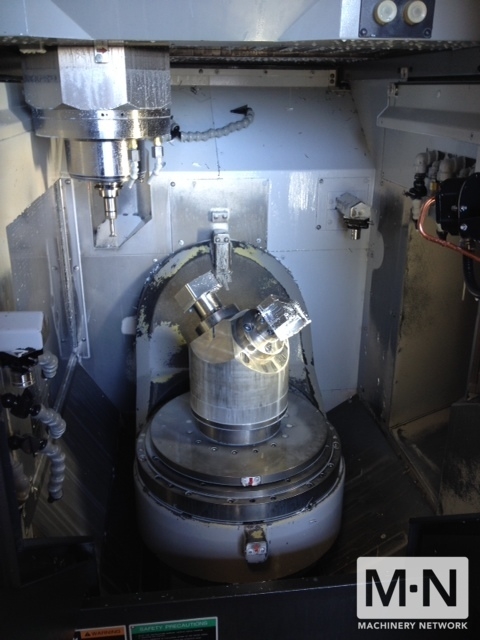

SPECIFICATIONS: TABLE SIZE (2): .............. 11.8" X 11.8" TABLE TRAVEL X-AXIS: ...................... 19" Y-AXIS: ...................... 13" Z-AXIS: ...................... 20.1" B-AXIS: ...................... 340,000 DEG C-AXIS: ...................... 360,000 DEG TABLE SURFACE TO SPINDLE: .... 5.9" - 26" TABLE LOAD CAPACITY: ......... 2,640 LBS RAPID TRAVERSE RATES: ........ 1968, 1574 X,Y,Z IPM CUTTING FEED RATES: .......... 1968 & 1574 IPM SPINDLE NOSE: ................ CT 40 TAPER (DUAL CONTACT) SPINDLE SPEED: ............... 20,000 RPM TOOL MAGAZINE: ............... 320 ATC MAX TOOL LENGTH/WEIGHT: ...... 11.8" / 17.60 LBS MAX TOOL DIAMETER: ........... 3.5" TOOL CHANGE TIME: ............ 1.8 SEC MAIN MOTOR: .................. 30 HP MACHINE DIMENSIONS: .......... 92" X 147" X 129"

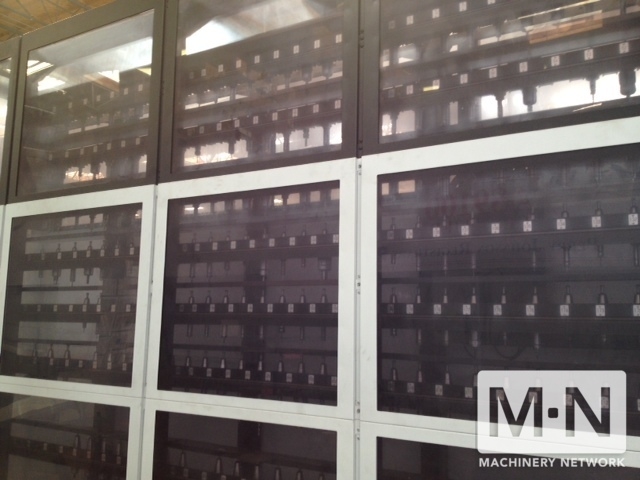

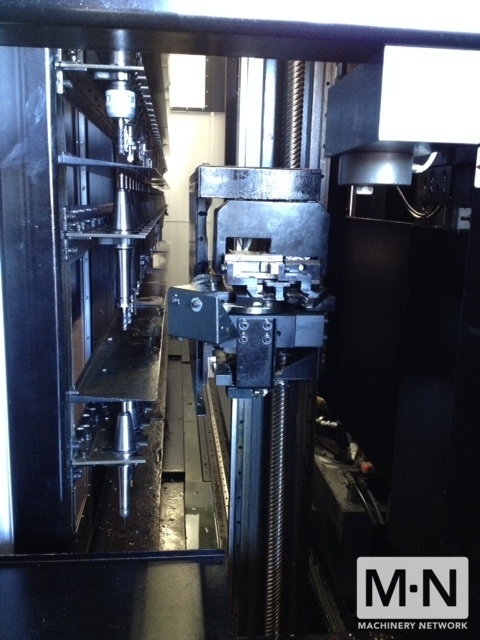

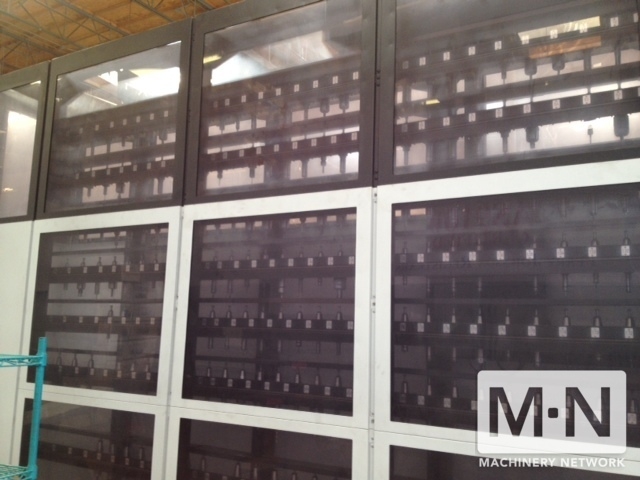

EQUIPPED WITH: MSX-711V MAPPS IV CONTROL HIGH-OUTPUT SPINDLE 20K RPM AWC 34 PALLETS (TAPPED PALLET) TOOL STORAGE - 320 (CAT) RACK TYPE SHOWER COOLANT THRU SPINDLE COOLANT CHIP CONVEYOR (REAR DISCHARGE, SCRAPPER & DRUM FILTER) 5-AXIS CUTTER COMP IN-MACHINE MEASURING SYSTEM (RENISHAW) TOOL LIFE MANAGEMENT INVERSE TIME FEED PROGRAM NUMBER 8-DIDGET 0 CODE PART PROGRAM LENGTH (8MB) REGISTERABLE PROGRAMS 1,000 (IN TOTAL) COOL JET 70-36 HIGH PRESSURE COOLANT SYSTEM DATA SERVER
NEW 2010
SPECIFICATIONS: TABLE SIZE (2): .............. 11.8" X 11.8" TABLE TRAVEL X-AXIS: ...................... 19" Y-AXIS: ...................... 13" Z-AXIS: ...................... 20.1" B-AXIS: ...................... 340,000 DEG C-AXIS: ...................... 360,000 DEG TABLE SURFACE TO SPINDLE: .... 5.9" - 26" TABLE LOAD CAPACITY: ......... 2,640 LBS RAPID TRAVERSE RATES: ........ 1968, 1574 X,Y,Z IPM CUTTING FEED RATES: .......... 1968 & 1574 IPM SPINDLE NOSE: ................ CT 40 TAPER (DUAL CONTACT) SPINDLE SPEED: ............... 20,000 RPM TOOL MAGAZINE: ............... 320 ATC MAX TOOL LENGTH/WEIGHT: ...... 11.8" / 17.60 LBS MAX TOOL DIAMETER: ........... 3.5" TOOL CHANGE TIME: ............ 1.8 SEC MAIN MOTOR: .................. 30 HP MACHINE DIMENSIONS: .......... 92" X 147" X 129"
EQUIPPED WITH: MSX-711V MAPPS IV CONTROL HIGH-OUTPUT SPINDLE 20K RPM AWC 34 PALLETS (TAPPED PALLET) TOOL STORAGE - 320 (CAT) RACK TYPE SHOWER COOLANT THRU SPINDLE COOLANT CHIP CONVEYOR (REAR DISCHARGE, SCRAPPER & DRUM FILTER) 5-AXIS CUTTER COMP IN-MACHINE MEASURING SYSTEM (RENISHAW) TOOL LIFE MANAGEMENT INVERSE TIME FEED PROGRAM NUMBER 8-DIDGET 0 CODE PART PROGRAM LENGTH (8MB) REGISTERABLE PROGRAMS 1,000 (IN TOTAL) COOL JET 70-36 HIGH PRESSURE COOLANT SYSTEM DATA SERVER
