MORI SEIKI DV5100
Type:
Vertical Machining Centers
Manufacturer:
MORI SEIKI
Model:
DV5100
Condition:
Not Specified
Year:
2014
Stock #:
34387
Status:
Sold
Description:
41"X20"X30", 53.1" X 23.6" TABLE, 40 TAPER, 30 TOOLS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

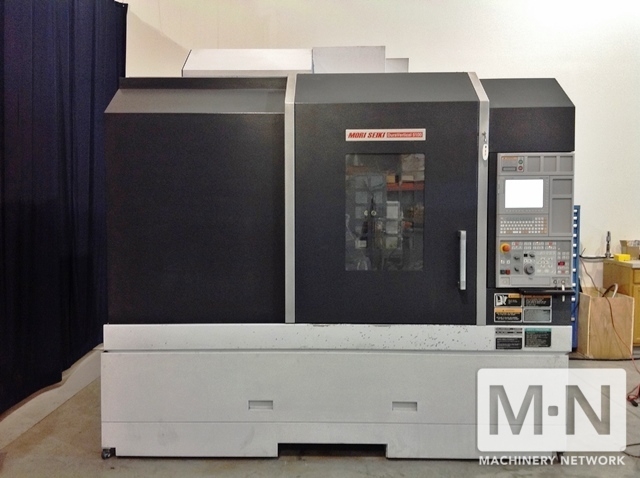

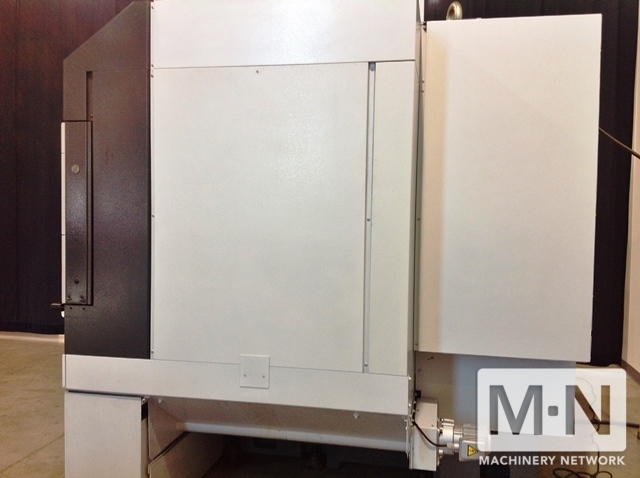

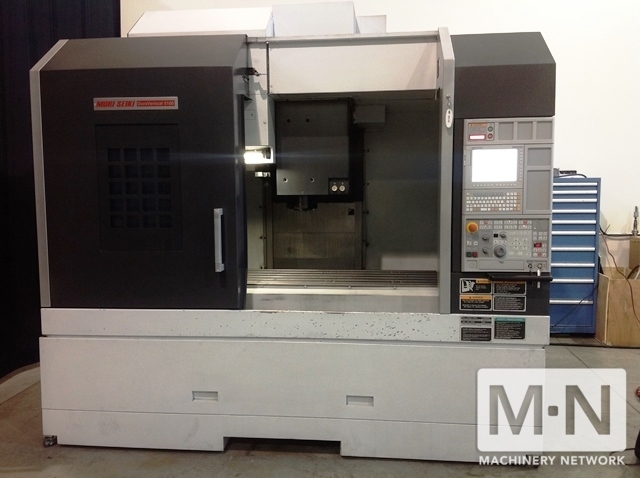

(1) USED MORI SEIKI DV 5100 CNC VERTICAL MACHINING CENTER
NEW 2014
*ONLY 995 CUTTING HOURS
SPECIFICATIONS:
X-AXIS TRAVEL: .............................41.3"
Y-AXIS TRAVEL: .............................20.9"
Z-AXIS TRAVEL: .............................20.1"
TABLE WORKING SURFACE: .....................53.1" X 23.6"
TABLE LOADING CAPACITY: ....................2,200 LBS
MAXIMUM SPINDLE SPEED: .....................12,000 RPM
SPINDLE TAPER: ............................#40
SPINDLE BEARING DIAMETER: ..................2.8"
RAPID TRAVERSE RATE:
X,Y, AXES: .................................1,417.3 IPM
Z-AXES: ....................................787.4 IPM
CUTTING FEEDRATE: ........................1-236.2 IPM
TOOL STORAGE CAPACITY: ......................30
MAXIMUM TOOL DIAMETER WITH ADJACENT TOOLS: ..3.1"
MAXIMUM TOOL DIAMETER WITHOUT ADJACENT TOOL: 4.9"
MAXIMUM TOOL LENGTH: ........................11.8"
MAXIMUM TOOL MASS: ..........................17.6 LB
AUTOMATIC TOOL CHANGER: .....................30
TOOL CHANGING TIME-TOOL TO TOOL: ............1.3 SEC
TOOL CHANGING TIME-CHIP TO CHIP: ............4.0 SEC
SPINDLE DRIVE MOTOR: ........................20/17.3/15HP
ELECTRICAL POWER SUPPLY: ....................23.3 KVA
COMPRESSED AIR SUPPLY: ......................72.5 PSI, 52.8 GPM
COOLANT TANK: ...............................79.2 GAL
MACHINE HEIGHT: .............................105.3"
FLOOR SPACE: ................................107.9" X 91.1"
MACHINE WEIGHT: .............................14,080 LB
EQUIPPED WITH:
THROUGH-SPINDLE COOLANT SYSTEM
CHIP CONVEYOR
SIGNAL TOWER 3 LAYERS LED TYPE
SERVO AMPLIFIER
NEW 2014
*ONLY 995 CUTTING HOURS
SPECIFICATIONS:
X-AXIS TRAVEL: .............................41.3"
Y-AXIS TRAVEL: .............................20.9"
Z-AXIS TRAVEL: .............................20.1"
TABLE WORKING SURFACE: .....................53.1" X 23.6"
TABLE LOADING CAPACITY: ....................2,200 LBS
MAXIMUM SPINDLE SPEED: .....................12,000 RPM
SPINDLE TAPER: ............................#40
SPINDLE BEARING DIAMETER: ..................2.8"
RAPID TRAVERSE RATE:
X,Y, AXES: .................................1,417.3 IPM
Z-AXES: ....................................787.4 IPM
CUTTING FEEDRATE: ........................1-236.2 IPM
TOOL STORAGE CAPACITY: ......................30
MAXIMUM TOOL DIAMETER WITH ADJACENT TOOLS: ..3.1"
MAXIMUM TOOL DIAMETER WITHOUT ADJACENT TOOL: 4.9"
MAXIMUM TOOL LENGTH: ........................11.8"
MAXIMUM TOOL MASS: ..........................17.6 LB
AUTOMATIC TOOL CHANGER: .....................30
TOOL CHANGING TIME-TOOL TO TOOL: ............1.3 SEC
TOOL CHANGING TIME-CHIP TO CHIP: ............4.0 SEC
SPINDLE DRIVE MOTOR: ........................20/17.3/15HP
ELECTRICAL POWER SUPPLY: ....................23.3 KVA
COMPRESSED AIR SUPPLY: ......................72.5 PSI, 52.8 GPM
COOLANT TANK: ...............................79.2 GAL
MACHINE HEIGHT: .............................105.3"
FLOOR SPACE: ................................107.9" X 91.1"
MACHINE WEIGHT: .............................14,080 LB
EQUIPPED WITH:
THROUGH-SPINDLE COOLANT SYSTEM
CHIP CONVEYOR
SIGNAL TOWER 3 LAYERS LED TYPE
SERVO AMPLIFIER
