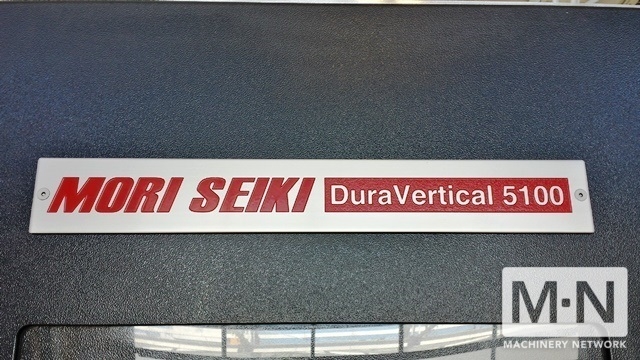

MORI SEIKI DURA VERTICAL 5100

Type:

Vertical Machining Centers

Manufacturer:

MORI SEIKI

Model:

DURA VERTICAL 5100

Condition:

Not Specified

Year:

2012

Stock #:

34659

Status:

Sold

Description:

41"x20"x20", CAT 40

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

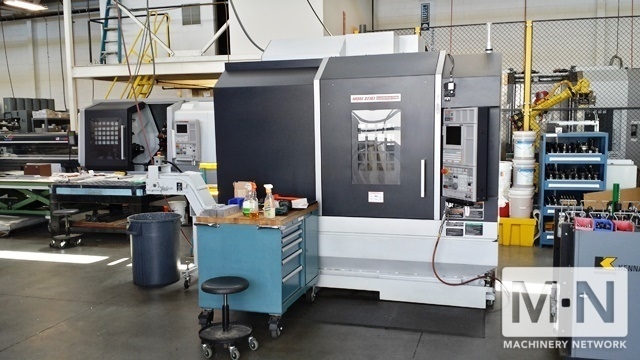

(1) USED MORI-SEIKI DURA VERTICAL 5100 CNC VERTICAL MACHINING CENTER NEW 2012 ONLY 839 Cut Hours !!!!

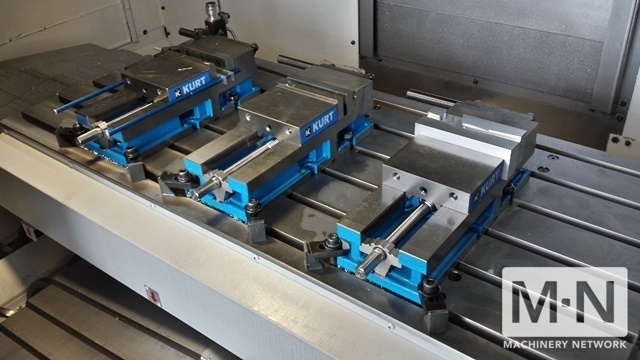

SPECIFICATIONS: TABLE SIZE: .................... 53.100 X 23.600 MAX WEIGHT OF WORK PIECE: ...... 2200 X-AXIS TRAVEL: ................. 41.300" Y-AXIS TRAVEL: ................. 20.900" Z-AXIS TRAVEL: ................. 20.100" MAIN SPINDLE: .................. FIXED DIRECTION: ..................... VERTICAL TAPER: ......................... CAT 40 TOP RPM: ....................... 10,000 Spindle Horse Power ............ 20

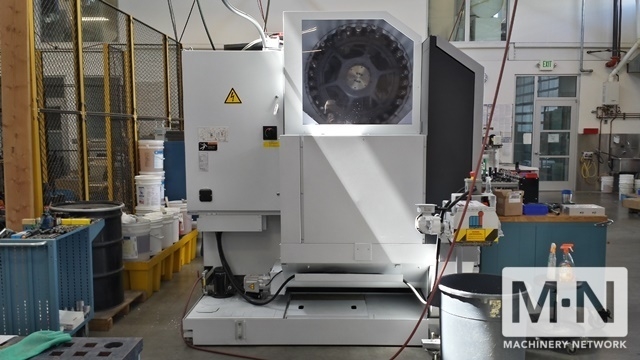

PRIMARY TOOL CARRIER: .......... ATC ARM CT TYPE # OF TOOLS: .................... 30 MAX TOOL LENGTH: ............... 11.810 MAX TOOL DIAMETER: ............. 3.100 MAX TOOL WEIGHT: ............... 17.60 MACHINE DIMENSIONS: ............ 75" X 91" X 105" MACHINE WEIGHT: ................ 14,080 LBS

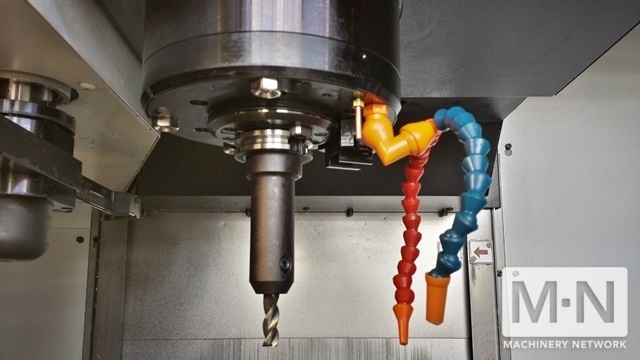

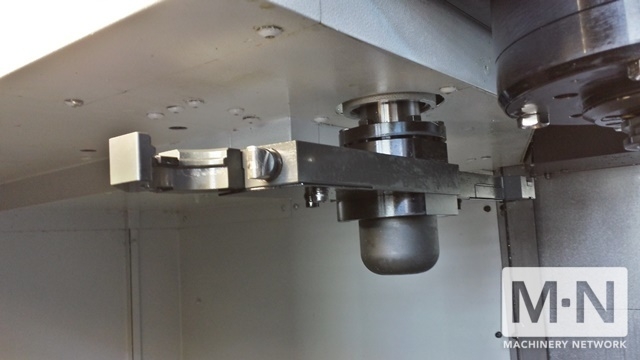

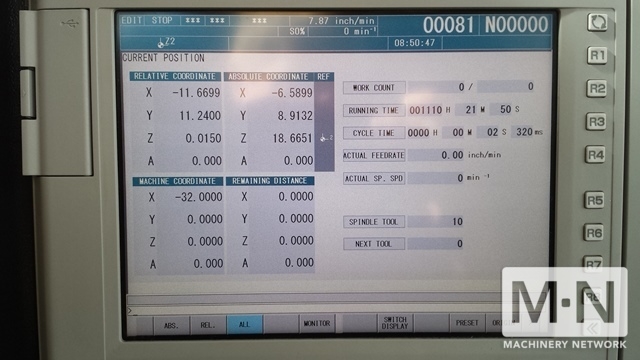

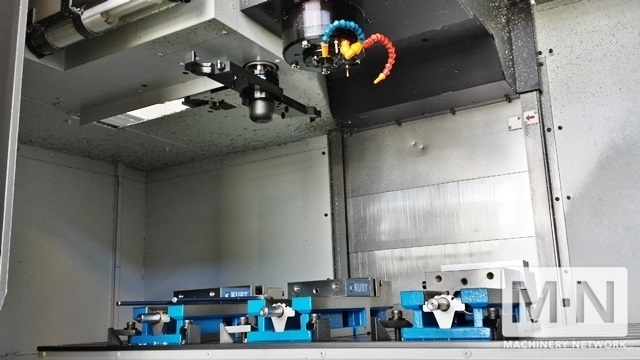

EQUIPPED WITH: MSX-504 IV CONTROL COOLJET HIGH PRESSURE COOLANT SYSTEM HIGH SPEED SPINDLE 12,000 MIN-1, 15/11KW SERVO AMPLIFIER AND NC PARTS FOR DDRT-200, 260, 300 FAST DATA SERVER + MEMORY CARD FOR DATA SERVER AI CONTOUR CONTROL I IN-MACHINE MEASURING SYSTEM (TABLE) TOUCH SENSOR

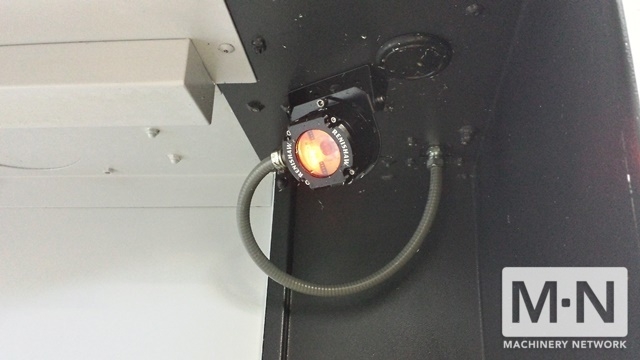

ATC ARM CT TYPE MORI COOL SILVER PAINT SIGNAL TOWER IN-MACHINE MEASURING SYSTEM (SPINDLE) OPTICAL TYPETOUCH SENSOR 51522-A MAYFRAN CHIP CONVEYOR CTS
