MORI SEIKI MV40B
Type:
Vertical Machining Centers
Manufacturer:
MORI SEIKI
Model:
MV40B
Condition:
Not Specified
Stock #:
36481
Status:
Sold
Description:
30"X13"X17"
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

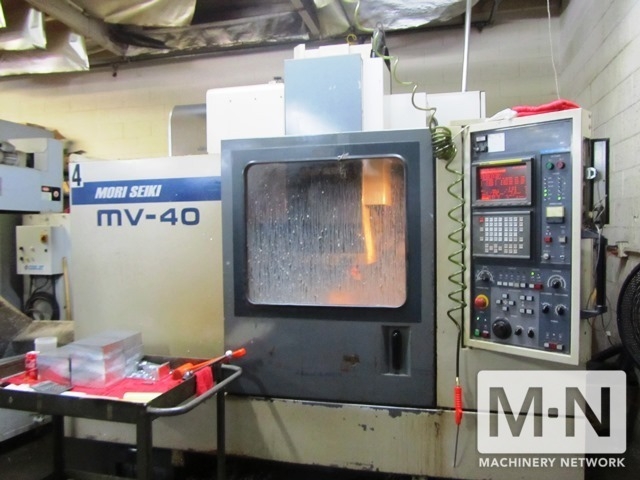

(1) USED MORI MV40B VERTICAL MACHINING CENTER
WITH FANUC OM CNC CONTROL
SPECIFICATIONS:
TRAVELS:
X-AXIS 31.5"
Y-AXIS 16.1"
Z-AXIS 20.1"
TABLE SIZE 43.3" X 17.7"
SPINDLE SPEED 30 - 8000 RPM
SPINDLE TAPER BT 40
SPINDLE NOSE TO TABLE TOP 5.9" - 26"
SPINDLE MOTOR 10 / 7.5 HP AC
TOOLS 20
TABLE LOAD CAPACITY 1540 LBS.
RAPID TRAVERSE RATES (X & Y / Z) 787 / 590 IPM
TOOL CHANGE TIME (T - T / C - C) 1.5 / 5.2 SECONDS
MAX TOOL DIAMETER 3.1" / 4.9"
MAX TOOL LENGTH 9.8"
MAX TOOL WEIGHT 17.6 LBS.
MACHINE DIMENSIONS (L X W X H) 97.6" X 88.6" X 109.1"
MACHINE WEIGHT 13,310 LBS.

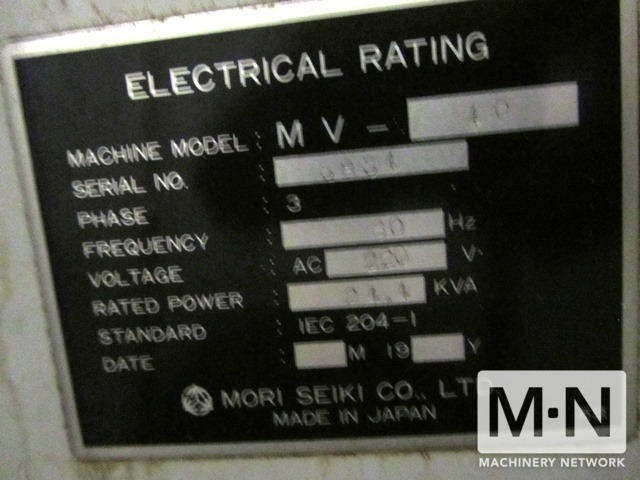

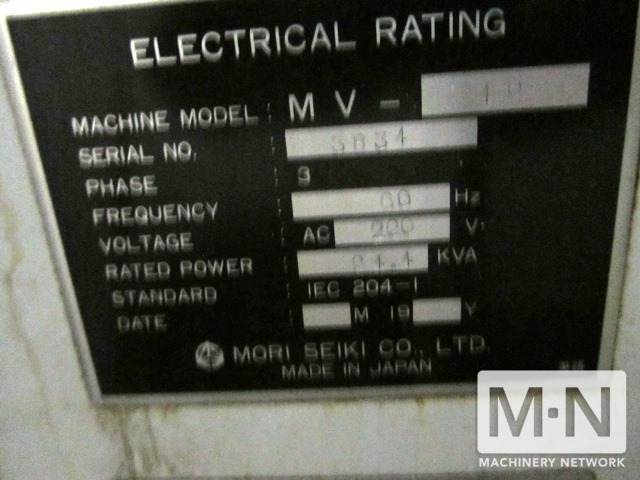

WIRED = 220V, 3PH, 60HZ
EQUIPPED WITH:

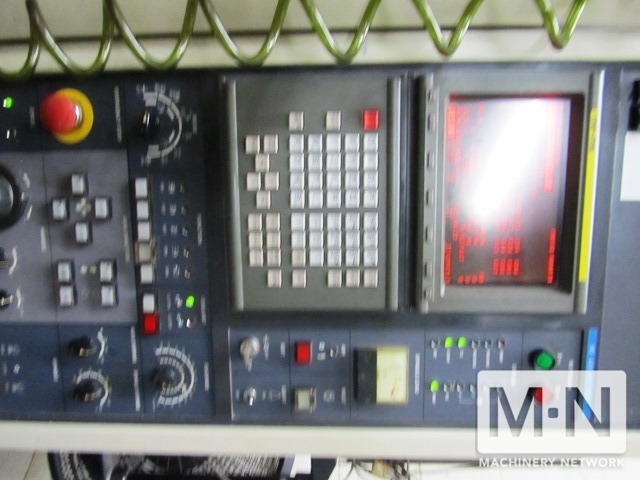

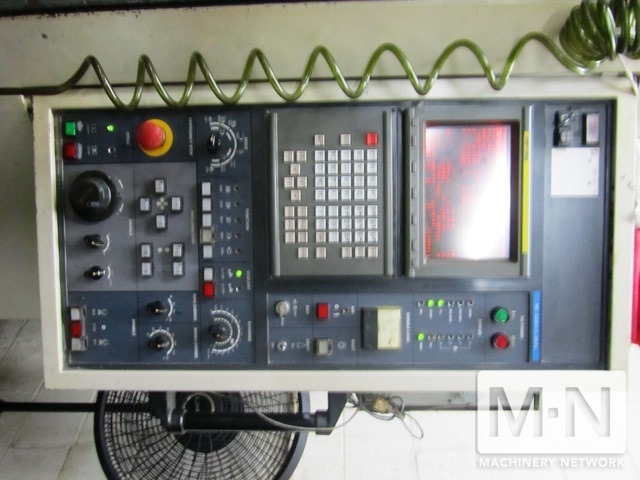

MORIC MF-M4 (FANUC 0-M) CNC CONTROL
9" MONOCHROME CRT
FULL ENCLOSURE
TWO GEAR RANGE HEADSTOCK
HEAVY DUTY BOX WAY CONSTRUCTION
COOLANT CHIP BOX
ALL AVAILABLE MANUALS
UNDER POWER READY TO INSPECT
LOCATION: LOS ANGELES, CA
WITH FANUC OM CNC CONTROL
SPECIFICATIONS:
TRAVELS:
X-AXIS 31.5"
Y-AXIS 16.1"
Z-AXIS 20.1"
TABLE SIZE 43.3" X 17.7"
SPINDLE SPEED 30 - 8000 RPM
SPINDLE TAPER BT 40
SPINDLE NOSE TO TABLE TOP 5.9" - 26"
SPINDLE MOTOR 10 / 7.5 HP AC
TOOLS 20
TABLE LOAD CAPACITY 1540 LBS.
RAPID TRAVERSE RATES (X & Y / Z) 787 / 590 IPM
TOOL CHANGE TIME (T - T / C - C) 1.5 / 5.2 SECONDS
MAX TOOL DIAMETER 3.1" / 4.9"
MAX TOOL LENGTH 9.8"
MAX TOOL WEIGHT 17.6 LBS.
MACHINE DIMENSIONS (L X W X H) 97.6" X 88.6" X 109.1"
MACHINE WEIGHT 13,310 LBS.
WIRED = 220V, 3PH, 60HZ
EQUIPPED WITH:
MORIC MF-M4 (FANUC 0-M) CNC CONTROL
9" MONOCHROME CRT
FULL ENCLOSURE
TWO GEAR RANGE HEADSTOCK
HEAVY DUTY BOX WAY CONSTRUCTION
COOLANT CHIP BOX
ALL AVAILABLE MANUALS
UNDER POWER READY TO INSPECT
LOCATION: LOS ANGELES, CA
