TOYODA FA400

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

TOYODA

Model:

FA400

Condition:

Not Specified

Year:

1999

Stock #:

35656

Status:

Sold

Description:

Toyoda FA 400 3 Machine Cell System

Location:

Washington, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

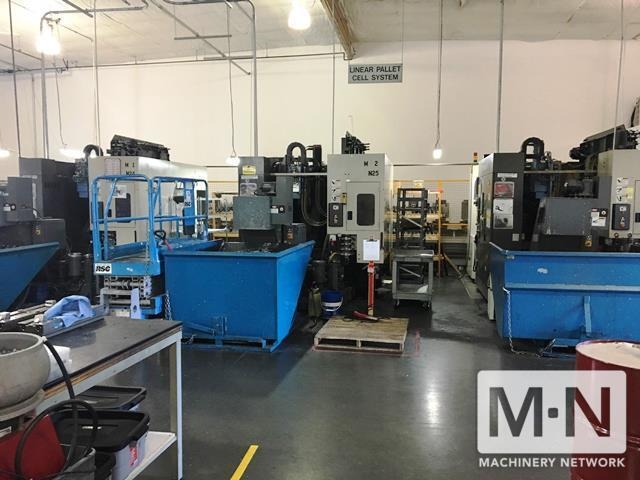

(3) MACHINE CELL SYSTEM. 3 INDIVIDUAL TOYODA FA 400 MACHINES WITH A 24 PALLET SYSTEM.

MASSIVE PRICE REDUCTION! MUST MOVE THIS MONTH!
UNDER POWER AND AVAILABLE FOR INSPECTION
MFG. 1999

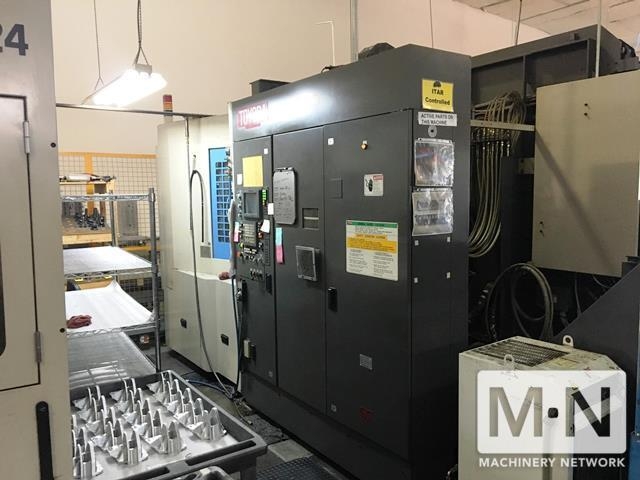

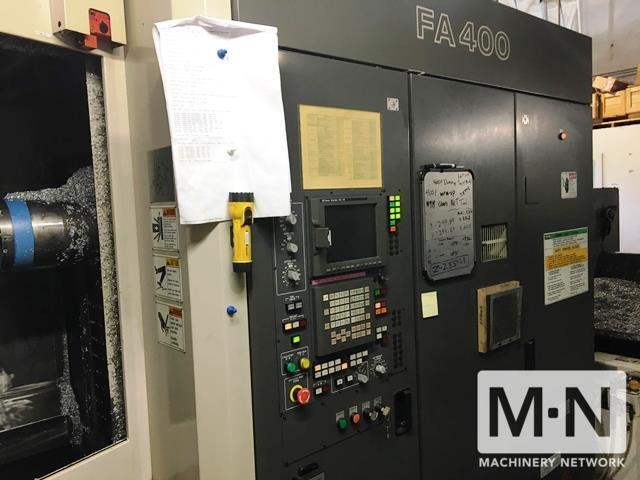

(1) TOYODA FA-400 HORIZONTAL MACHINING CENTER WITH 120 ATC, 1 DEGREE, 14,000 RPM SPINDLE, TURBO MICRO-FINE CHIP CONVEYOR, RIGID TAP, HELICAL 48 WORK OFFSETS, 1280 METERS MEMORY, OP SUPPORT OPTION 20A, TOUCH PROBE, 20 PALLET LINEAR SYSTEM, 2 LOAD/UNLOAD STATIONS, CELL CONTROLLER,

(2) TOYODA FA-400 HORIZONTAL MACHINING CENTER WITH 120 ATC, 1 DEGREE, 14,000 RPM SPINDLE, TURBO MICRO-FINE CHIP CONVEYOR, RIGID TAP, HELICAL 48 WORK OFFSETS, 1280 METERS MEMORY, OP SUPPORT OPTION 20A, TOUCH PROBE,

(3) TOYODA FA-400 HORIZONTAL MACHINING CENTER WITH 120 ATC, 1 DEGREE, 14,000 RPM SPINDLE, TURBO MICRO-FINE CHIP CONVEYOR, RIGID TAP, HELICAL 48 WORK OFFSETS, 1280 METERS MEMORY, OP SUPPORT OPTION 20A, TOUCH PROBE,

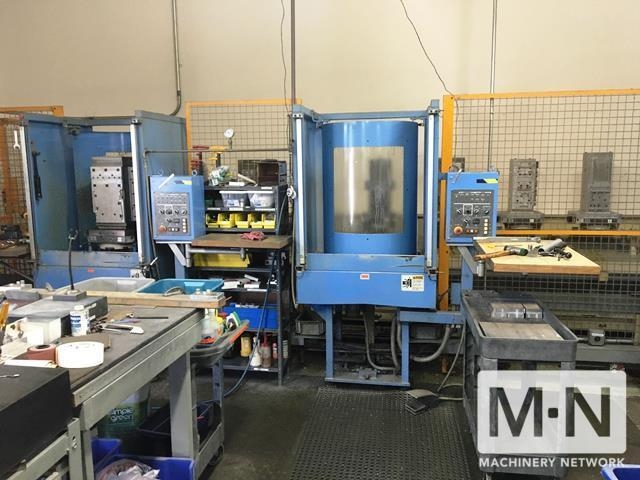

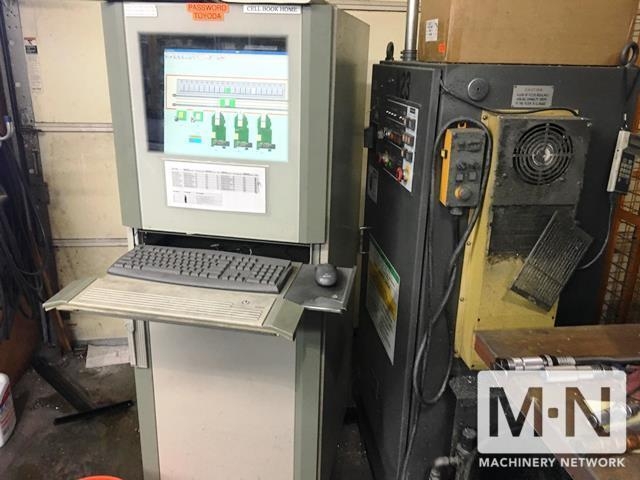

(4) CELL CONTROLLER UPGRADE, ETHERNET DNC, 2,048 (2MEG) PROGRAM STORAGE MEMORY UPGRADE, 4 FACE MACHINING BUTTONS AT LOADING STATION WITH CELL CONTROLLER SOFTWARE UPGRADE, CURRENT PALLET NUMBER TRANSFERRED TO CNC MACRO VARIABLE WITH CELL CONTROLLER SOFTWARE UPGRADE, SBI TYPE SUBPROGRAM CALL

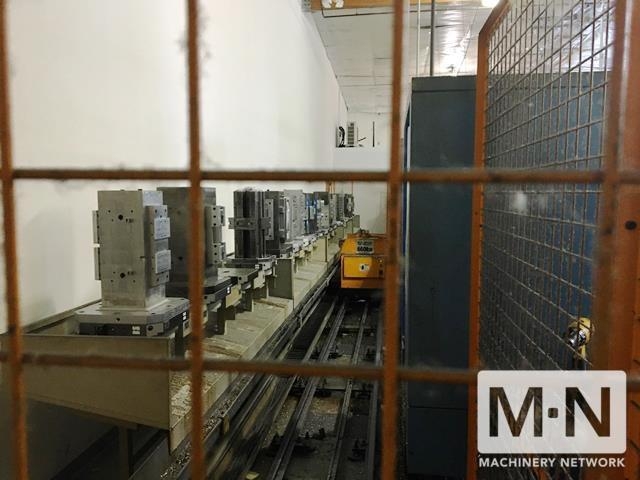

(5) 24 TOTAL PALLETS

(6) TOMBSTONES:

A.(8) MID-STATE 10” STEEL TOMBSTONES

B.(6) ABBOT 8” ALUMINUM TOMBSTONES

C.(4) CUSTOM “T”-SHAPE ALUMINUM TOMBSTONES

D.(4) TOOLEX RWS 6008 8-STATION VISE TOMBSTONES

(7) 150-200 VARIOUS CAT40 TOOL HOLDERS.

(8) (1 SET) Y-AXIS LINER GUIDES (NEW REPLACEMENT SET READY FOR INSTALL)

(9) (1 SET) Z-AXIS BALL SCREWS (NEW REPLACEMENT SET READY FOR INSTALL)

SPECIFICATIONS:
X-AXIS TRAVEL.............................................19.7"
Y-AXIS TRAVEL.............................................19.7"
Z-AXIS TRAVEL.............................................23.6"
B-AXIS TRAVEL.............................................0.001 DEGREE
RAPID TRAVERSE RATE - X, Y & Z-AXES.......................1968 IPM
PALLET HEIGHT FROM FLOOR..................................43.3"
SPINDLE NOSE TO ROTARY TABLE CENTER.......................4.9" - 28.5"
SPINDLE NOSE TO TOP FACE OF PALLET........................2.0" - 21.7"
SPINDLE SPEED RANGE.......................................14,000 RPM
SPINDLE DRIVE MOTOR.......................................30/25 HP
SPINDLE TAPER.........................................CAT 40
AUTOMATIC TOOL CHANGER CAPACITY...........................40 TOOLS
MAX. TOOL SIZE (DIAMETER X LENGTH)........................3.94" X 11.81"
MAX. TOOL WEIGHT..........................................17.6 LBS
TOOL CHANGE TIME - CHIP TO CHIP...........................2.5 SECONDS
APPROX. FLOOR SPACE REQUIREMENT (PER INDIVIDUAL MACHINE)..79" X 168"
APPROX. MACHINE WEIGHT (PER INDIVIDUAL MACHINE)...........25,000 LBS
