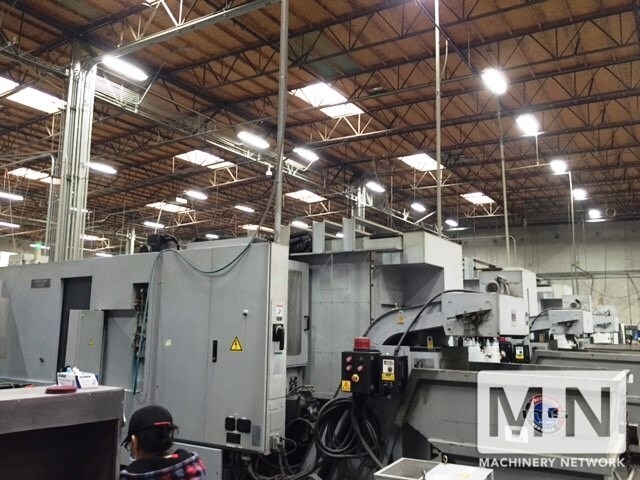

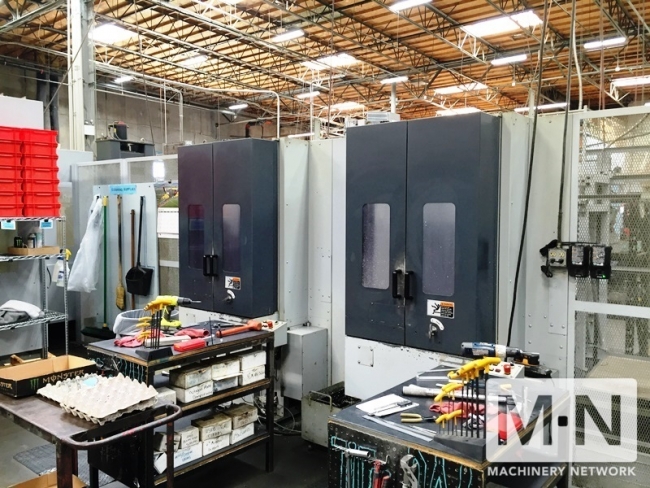

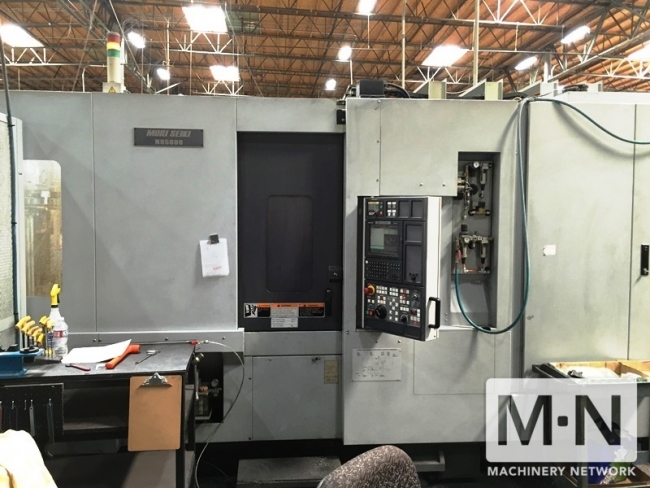

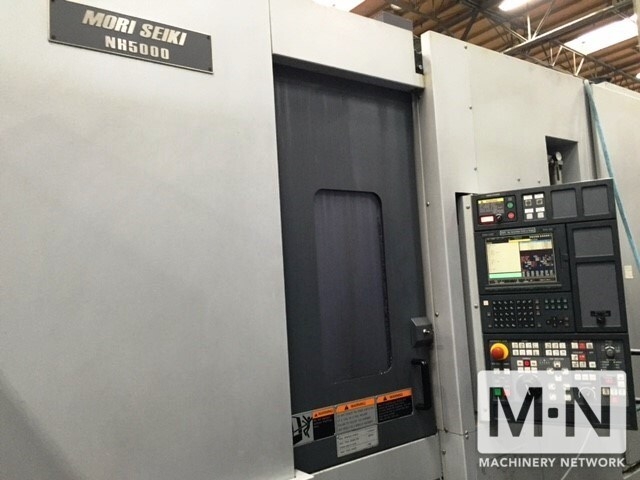

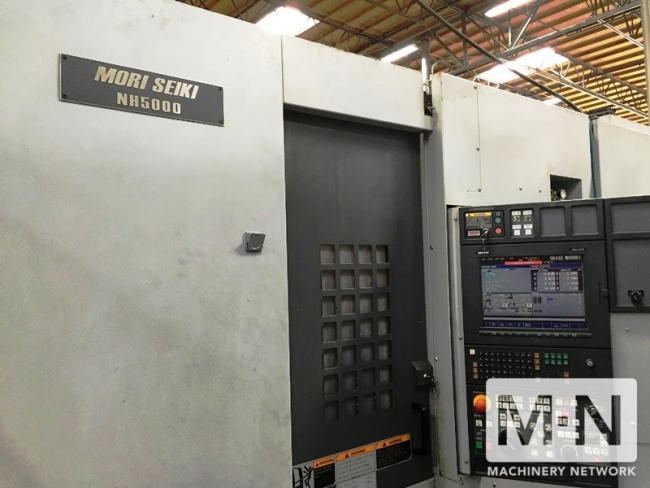

MORI SEIKI NH5000/40

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MORI SEIKI

Model:

NH5000/40

Condition:

Not Specified

Stock #:

35403

Status:

Sold

Description:

MORI (FANUC) MSG-501, 28"X23"x26", 14K RPM, 240 ATC

Videos:

Product Video #1

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

Tooling/Fixturing Included with machine: (3) USED MORI SEIKI NH5000 DCG
MFG. 2006 & 2002

GENERAL SPECIFICATIONS:
Spindle Speeds......................................14,000 RPM
TRAVEL:
X-AXIS TRAVEL (LONGITUDINAL MOVEMENT OF COLUMN) .....28.8"
Y-AXIS TRAVEL (VERTICAL MOVEMENT OF SPINDLE HEAD)....23.6"
Z-AXIS TRAVEL (CROSS MOVEMENT OF TABLE)..............26.4"
DISTANCE FROM PALLET SURFACE TO SPNDLE CENTER .......2.0-25.6"
DISTANCE FROM TABLE CENTER TO SPINDLE GAUGE PLANE ...3.9-30.3"
TABLE:
PALLET WORKING SURFACE ..............................19.7" X 19.7"
PALLET LOADING CAPACITY .............................1,100 LBS
MAX. WORKPIECE SWING DIAMETER .......................28.7"
MAX. WORKPIECE HEIGHT ...............................35.4"
PALLET SURFACE CONFIGURATION ........................4"
PALLET INDEXING TIME ................................90 SEC.

EQUIPPED WITH:
MORI (FANUC) MSG-501

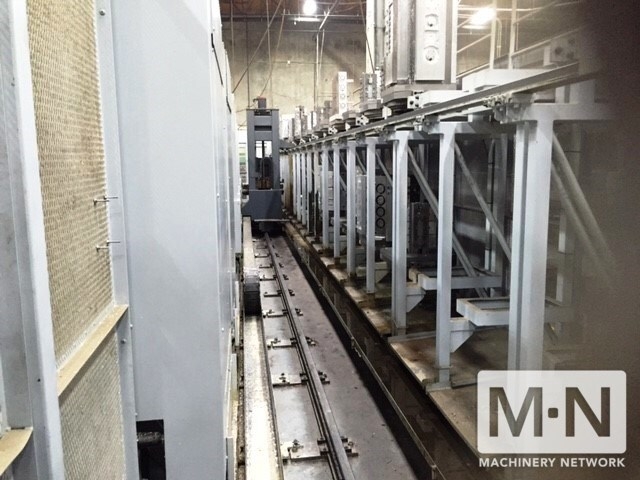

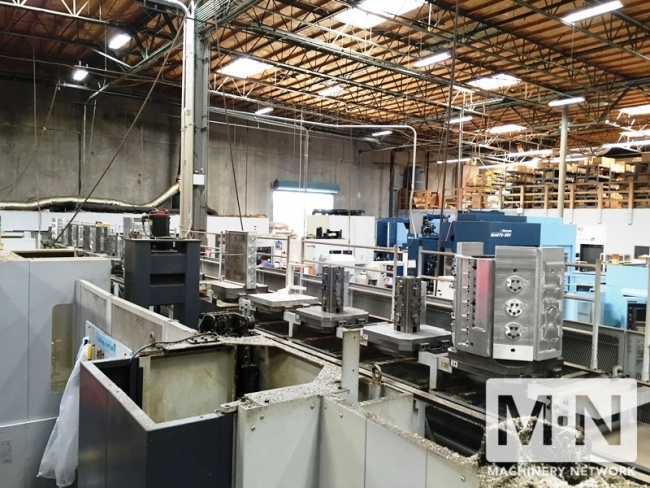

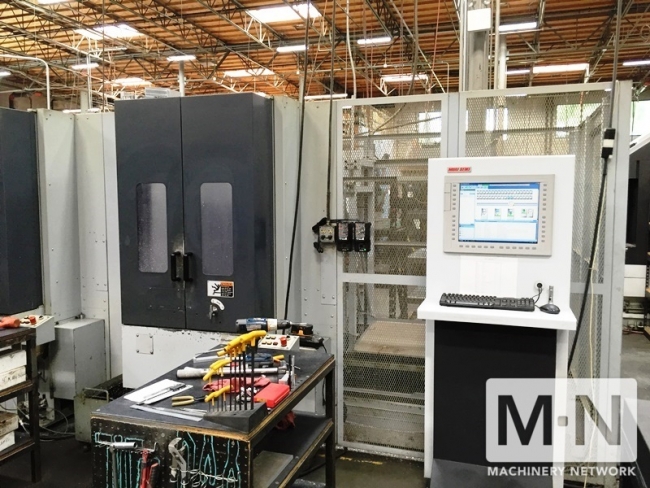

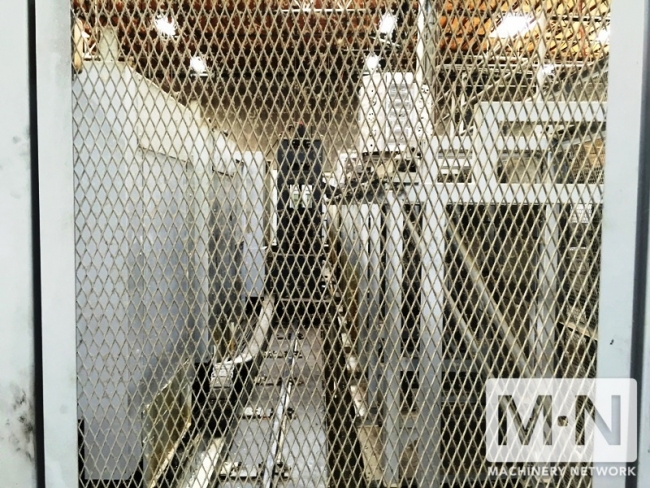

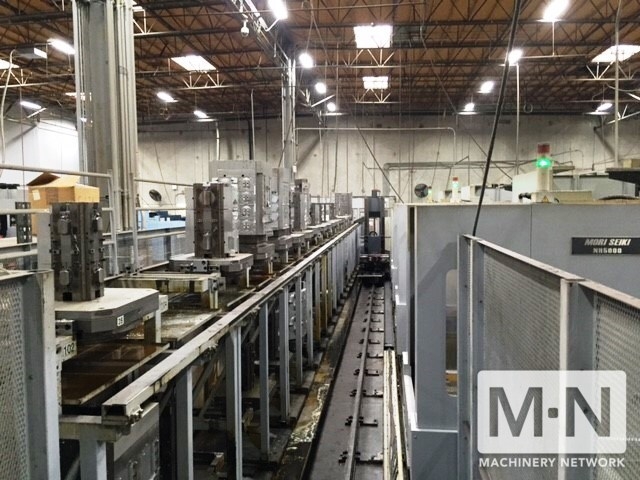

2 TIER PALLET STACKER WITH 38 TOTAL PALLETS
2 LOAD/UNLOAD BAYS
C.T.S.

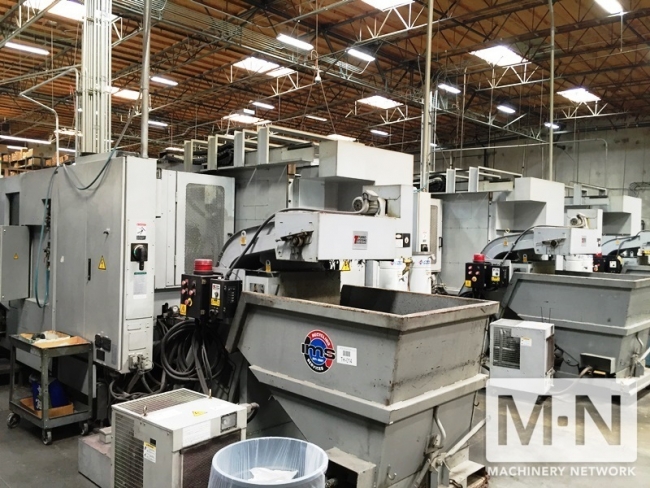

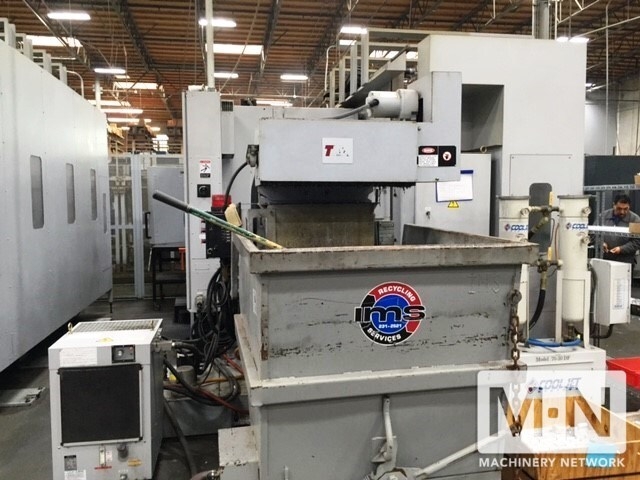

CHIP CONVEYOR
FULL 4TH AXIS TABLE W/ INDUCTOSYN SCALE
TOUCH SENSOR(RENISHAW SPINDLE PROBE MP-10) W/ A.T.C.
TABLE SENSOR
(400 PAIRS) ADDITIONAL TOOL OFFSET
WORK COORDINATE SYSTEM (300 SYSTEMS)
INTERRUPTION TYPE CUSTOM MACRO
LOAD MONITORING FUNCTION C
OPTIONAL BLOCK SKIP
PART PROGRAM STORAGE LENGTH 2,560 METERS
PROGRAM RESTART
PROGRAMMABLE MIRROR IMAGE
HPCC W/ DATA SERVER & ATC CARD
SINGLE DIRECTIONAL POSITIONING
TOOL LIFE MANAGEMENT
LPP INTERFACE MODIFIED
240 ATC W/ RACK TYPE
ADDTL. M FUNCTION 8-SET FOR HMC

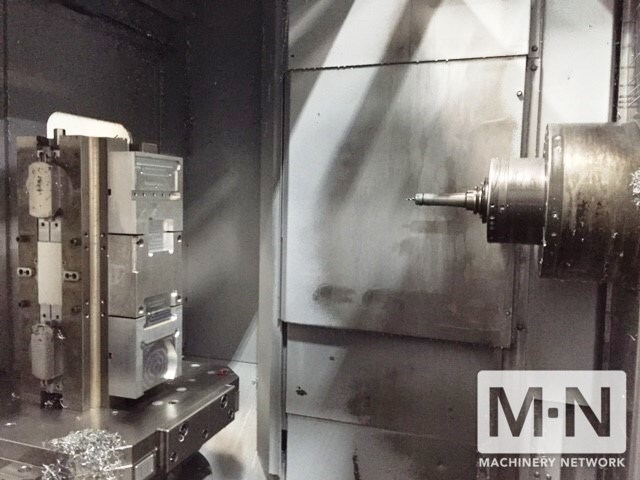

Fixturing: Kurt 6.0” Vise towers – 13 pcs Kurt 4.0” Vise Towers – 11 pcs Misc Plate tombstones (3x octagon, 3x square, 1x triangle, 4x rectangle, 1x cross column, ):12 pcs total Tool holders: 300 total tool holders, mostly Lyndex Nikken SK holders
