MORI SEIKI NH-4000
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MORI SEIKI
Model:
NH-4000
Condition:
Not Specified
Year:
2008
Stock #:
35219
Status:
Sold
Description:
4TH, 120 ATC, probe, HP CTS
Location:
Missouri, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

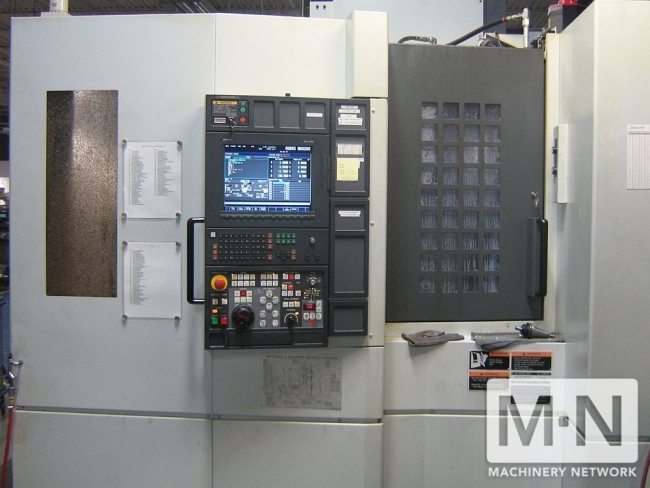

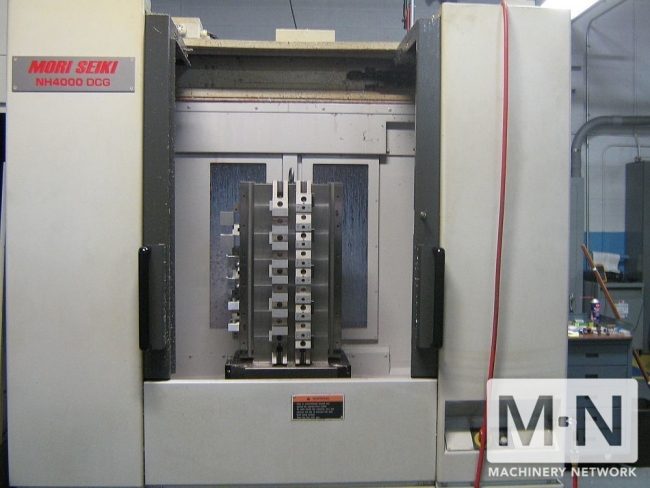

(1) Used Mori-Seiki NH-4000 DCG 4-Axis Horizontal Machining Center
New 2008
Specifications:
Pallet Size:.......................... 15.75” X 15.75”
Travels - X axis .................. 22.05"
- Y axis .................. 22.05"
- Z axis .................. 24.8”
- B axis................... 360,000 psotion, .001 deg
Max. Pallet Load: ............... 880lbs
Pallet Change Time: ........... 6 Seconds
Max. Spindle Speed ............ 14,000 RPM
Spindle Motor ..................... 25 HP
Spindle Taper ...................... CT-40
Rapids: ................................. 1,968.5 IPM
Max. Cutting Feed Rate: ......0-1,968.5 IPM
ATC capacity ....................... 120 tools
Equipped With:
MSX-501 Control
Renishaw laser probe
1000 PSI through spindle coolant
200 Tool Offsets
Tool Life Management
Chip Conveyor
4 additional pallets
New 2008
Specifications:
Pallet Size:.......................... 15.75” X 15.75”
Travels - X axis .................. 22.05"
- Y axis .................. 22.05"
- Z axis .................. 24.8”
- B axis................... 360,000 psotion, .001 deg
Max. Pallet Load: ............... 880lbs
Pallet Change Time: ........... 6 Seconds
Max. Spindle Speed ............ 14,000 RPM
Spindle Motor ..................... 25 HP
Spindle Taper ...................... CT-40
Rapids: ................................. 1,968.5 IPM
Max. Cutting Feed Rate: ......0-1,968.5 IPM
ATC capacity ....................... 120 tools
Equipped With:
MSX-501 Control
Renishaw laser probe
1000 PSI through spindle coolant
200 Tool Offsets
Tool Life Management
Chip Conveyor
4 additional pallets
