MORI SEIKI NH4000

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MORI SEIKI

Model:

NH4000

Condition:

Not Specified

Year:

2009

Stock #:

36492

Status:

Sold

Description:

22"x22"X14", 14K RPM, CAT40, 60 TOOLS,

Location:

Massachusetts, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

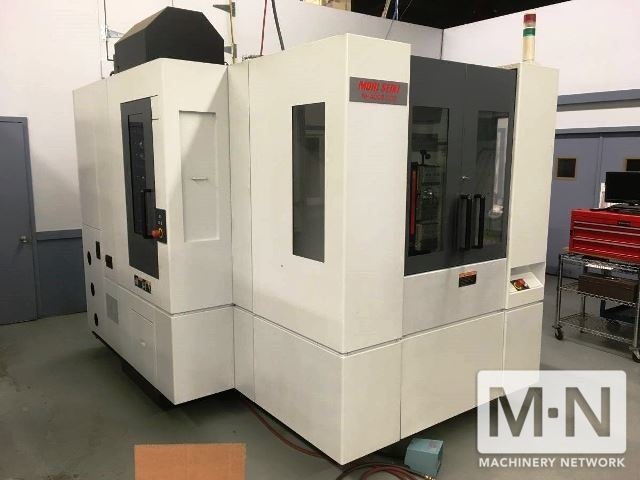

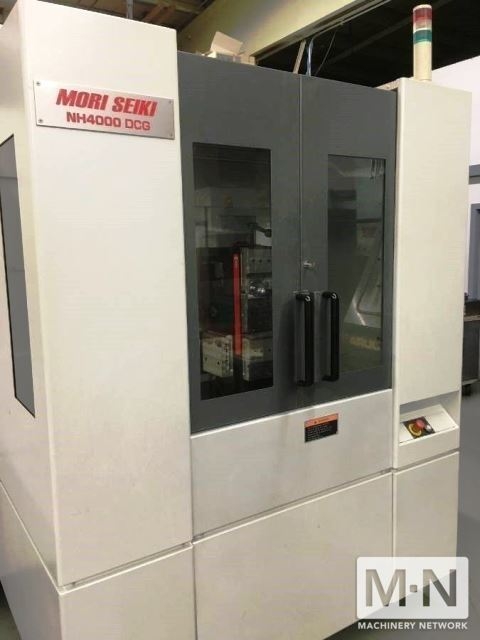

(1) USED MORI SEIKI NH4000 DCG CNC HORIZONTAL MACHINING CENTER. ONLY 2,000 HRS

SPECIFICATIONS:
TRAVELS:
--X: 22"
--Y: 22"
--Z: 26"
PALLET SIZE: 15.7" (2)
PALLET INDEX: .001 DEGREE
SPINDLE SPEED: 14,000 RPM
SPINDLE TAPER: CAT40 TAPER
ATC: 60 TOOLS
SPINDLE MOTOR: 20 / 15 HP
SPINDLE CENTER TO TABLE TOP: 2.4" - 24.4"
SPINDLE NOSE TO TABLE CENTER: 2.8" - 28.7"
RAPID TRAVERSE RATES: 2362 IPM
TOOL CHANGE TIME (T - T / C - C): 0.9 / 2.8 SECONDS
PALLET CHANGE TIME: 8 SECONDS
PALLET LOAD CAPACITY: 880 LBS.
MAX WORKPIECE DIA / HEIGHT: 24.8" / 34.6"
MAX TOOL DIAMETER: 2.7" / 6.6"
MAX TOOL LENGTH: 17.7"
MAX TOOL WEIGHT: 17.6 LBS.
MACHINE DIMENSIONS (L X W X H): 165.9" X 107.1" X 98.9"
MACHINE WEIGHT: 16,720 LBS.

EQUIPPED WITH:

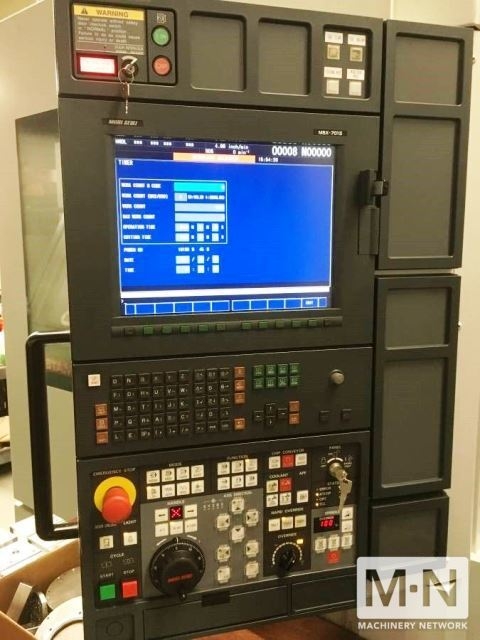

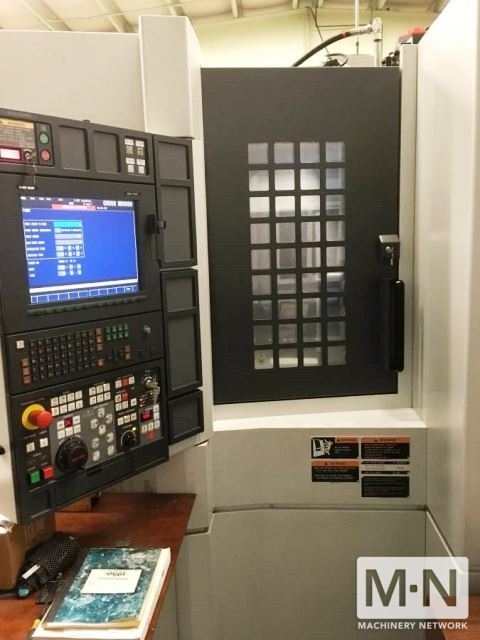

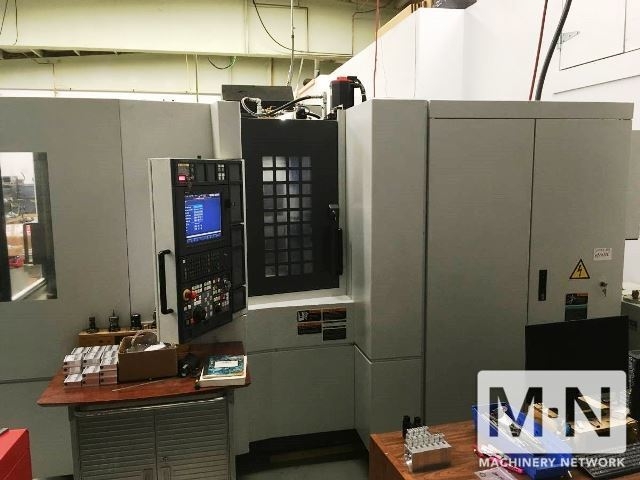

MORI SEIKI / FANUC MSX-701III COLOR CRT CONTROL
FOURTH AXIS ROTARY TABLE

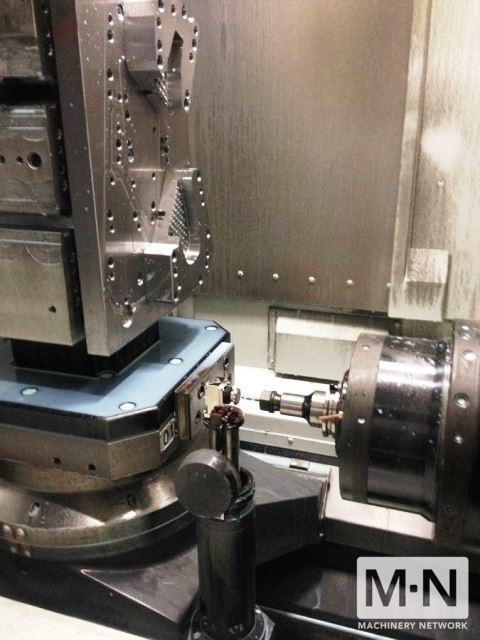

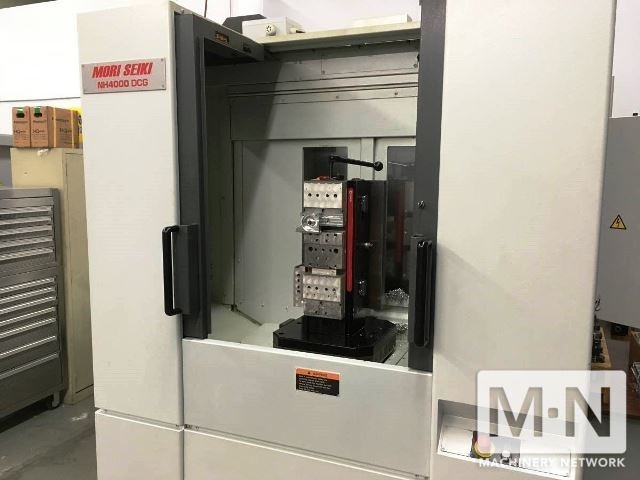

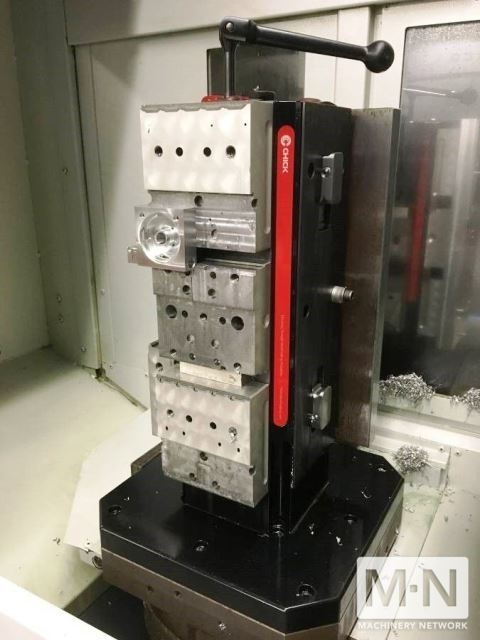

(2) CHICK ML1550 MULTI-LOCK 4-SIDED DOUBLE LOCK VICE TOMBSTONES CHICK SYSTEM IS QUICK-SWITCH EVERYTHING WITH ALL KINDS OF VICE CONFIGURATIONS AND FACE PLATES AVAILABLE.
REMOTE MANUAL PULSE GENERATOR
THREE COLOR STATUS LIGHT
CENTRAL COOLANT TROUGH
HELICAL INTERPOLATION
RIGID TAPPING
SHOWER COOLANT

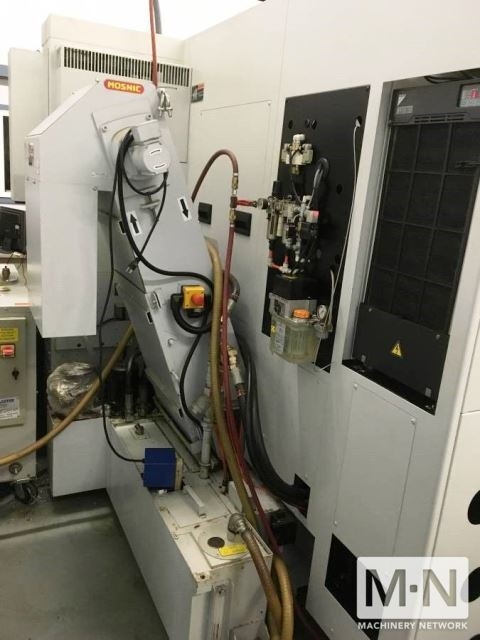

HIGH RISE, CHIP CONVEYOR.

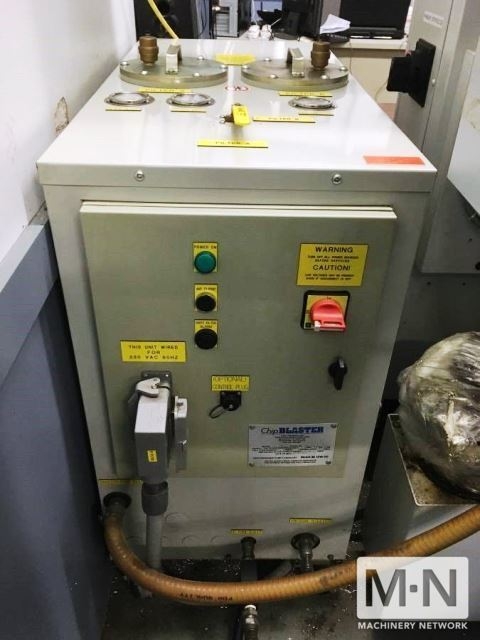

CHIP BLASTER 300PSI THROUGH SPINDLE FLANGE COOLANT.
INCLUDES 20+ BALANCED TOOL HOLDERS AND PULL STUDS.
RENISHAW TOOL SETTER
MAPPS CONVERSATIONAL PROGRAMMING
ETHERNET, USB, PCMCIA AND 50MB USER MEMORY AREA
ALL AVAILABLE MANUALS

UNDER POWER READY TO INSPECT
