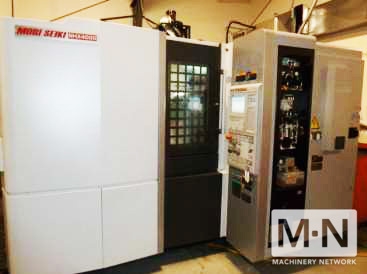

MORI SEIKI NHX-4000

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MORI SEIKI

Model:

NHX-4000

Condition:

Not Specified

Year:

2013

Stock #:

34052

Status:

Sold

Description:

MORI SEIKI NHX-4000,

Location:

Arizona, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED MORI-SEIKI NHX-4000 CNC HORIZONTAL MACHINING CENTER
NEW 2013

SPECIFICATIONS:
PALLET SIZE (2 PALLETS)/INDEXING TIME .....15.75" X 15.75" / 1 S
PALLET INDEXING / TABLE LOAD ..............1.°/880 LBS
TRAVELS: X-AXIS TRAVEL ....................22.047"
Y-AXIS TRAVEL .............................22.047"
Z-AXIS TRAVEL .............................25.9842"
SPINDLE: SPINDLE SPEEDS MIN-MAX .........50-12,000 RPM
SPINDLE TAPER .............................40 TAPER-BIG PLUS
MAIN MOTOR (30 MIN / CONTINUOUS) ........ .40 / 25 HP
SPINDLE CENTER TO TABLE TOP ............. .3.9" - 28.7"
TOOL CHANGER: TOOL CHANGER POSITIONS ......60 ATC
TOOL CHANGE TIME (TOOL-TO-TOOL/CHIP-TO-CHIP)...9 / 2.3 SEC.
RAPIDS: RAPID TRAVERSE (X, Y & Z ) ...... .2,362 IPM
FEED RATE .................................2,362 IPM
DIMENSIONS: FLOOR SPACE (L X W.............1. 70" X 107" X 103"
WEIGHT (APPROX.) ..........................2. 5,000 LBS

EQUIPPED WITH:
RIGID TAPPING
HIGH PRESSURE COOLANT THROUGH SPINDLE (500 PSI)
ETHERNET PORT
DIRECT SCALE FEEDBACK FOR X, Y, AND Z AXES
RS-232 PORT
MAPPS IV
HIGH SPED MACHINING
LOAD MONITORING FUNCTION
2,580 METERS OF MEMORY
HIGH TORQUE SPINDLE
BIG PLUS SPINDLE
SPINDLE CHILLER
PALLET EDGE LOCATOR
CHIPBLASTER HIGH PRESSURE COOLANT SYSTEM
COOLANT FILTRATION SYSTEM
RS-232 PORT
300 COORDINATE SYSTEMS
TOOL LIFE MANAGEMENT
LOAD MONITORING FUNCTION
SHOWER COOLANT
NOTE: ONLY 3,000 POWER ON HOURS
