MAKINO V33
Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
V33
Condition:
Not Specified
Year:
2000
Stock #:
34135
Status:
Sold
Description:
MAKINO V33
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

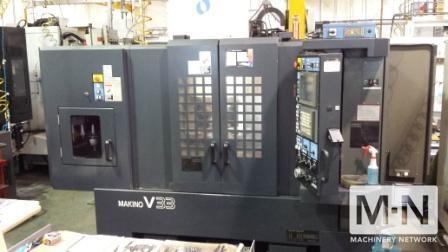

(1) USED MAKINO V33 VERTICAL DIE-MOLD MILLING AND MACHINING CENTER
NEW 2000
NEW BALL SCREWS & NEW SERVO
ALL MAINTENANCE PERFORMED BY MAKINO
MACHINE HAS BEEN OWNED SINCE BRAND NEW
SPECIFICATIONS:
NUM. OF AXES: ............................3
WORK SUPPORT: ............................BED
COLUMN CONSTRUCTION: SINGLE COLUMN STYLE:.TRAVELLING

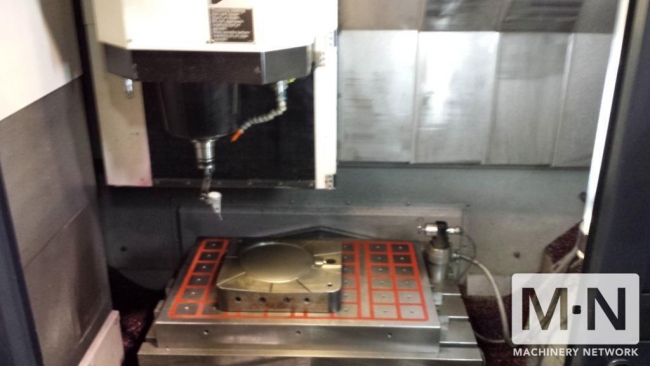

TABLE/WORK SUPPORT
TABLE SIZE L X W (IN.) ...................29.500 X 15.700
MAX. WORKPIECE WEIGHT (LBS) ..............660 LBS.
SPINDLE(S)
NUM. MAIN SPINDLES .......................1
ORIENTATION ..............................VERTICAL
TAPER ...................................#40
TOP RPM ..................................20,000 OPT: 30,000
HORSE POWER (30 MIN RATING) ..............20 HP
# SPEED RANGES ...........................1
TYPE .....................................FIXED

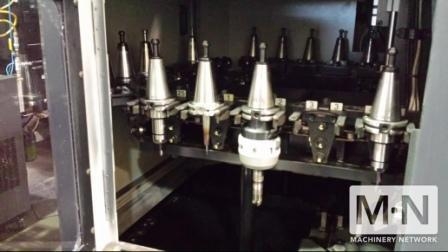

NUMBER OF TOOLS ..........................25 ATC OPT. 40
TOOL CHANGE TIME C-TO-C (SEC) ............7.00 SEC TOOL-TO-TOOL
MAX. TOOL LENGTH (IN.) ...................9.840
MAX. TOOL DIAMETER (IN.) .................3.140 (W/ EMPTY ADACENT POCKETS)
MAX. TOOL WEIGHT .........................15.50
NUMBER OF AXES: 3
TRAVEL MAX FEED RAPID RATE
X1 STD. 23.600 IN. 787 IPM 787 IPM
Y1 STD. 15.700 IN. 787 IPM 787 IPM
Z1 STD. 13.700 IN. 787 IPM 787 IPM
WEIGHTS AND MEASURES
MACHINE DIMENSIONS (L X W X H)(IN.) 90 X 80 X 118
MACHINE WEIGHT (LBS) 16,060
SPINDLE NOSE TO TABLE (MAX) 19.600
SPINDLE NOSE TO TABLE (MIN) 5.900
SPINDLE CENTER TO COLUMN 18.100
NEW 2000
NEW BALL SCREWS & NEW SERVO
ALL MAINTENANCE PERFORMED BY MAKINO
MACHINE HAS BEEN OWNED SINCE BRAND NEW
SPECIFICATIONS:
NUM. OF AXES: ............................3
WORK SUPPORT: ............................BED
COLUMN CONSTRUCTION: SINGLE COLUMN STYLE:.TRAVELLING
TABLE/WORK SUPPORT
TABLE SIZE L X W (IN.) ...................29.500 X 15.700
MAX. WORKPIECE WEIGHT (LBS) ..............660 LBS.
SPINDLE(S)
NUM. MAIN SPINDLES .......................1
ORIENTATION ..............................VERTICAL
TAPER ...................................#40
TOP RPM ..................................20,000 OPT: 30,000
HORSE POWER (30 MIN RATING) ..............20 HP
# SPEED RANGES ...........................1
TYPE .....................................FIXED
NUMBER OF TOOLS ..........................25 ATC OPT. 40
TOOL CHANGE TIME C-TO-C (SEC) ............7.00 SEC TOOL-TO-TOOL
MAX. TOOL LENGTH (IN.) ...................9.840
MAX. TOOL DIAMETER (IN.) .................3.140 (W/ EMPTY ADACENT POCKETS)
MAX. TOOL WEIGHT .........................15.50
NUMBER OF AXES: 3
TRAVEL MAX FEED RAPID RATE
X1 STD. 23.600 IN. 787 IPM 787 IPM
Y1 STD. 15.700 IN. 787 IPM 787 IPM
Z1 STD. 13.700 IN. 787 IPM 787 IPM
WEIGHTS AND MEASURES
MACHINE DIMENSIONS (L X W X H)(IN.) 90 X 80 X 118
MACHINE WEIGHT (LBS) 16,060
SPINDLE NOSE TO TABLE (MAX) 19.600
SPINDLE NOSE TO TABLE (MIN) 5.900
SPINDLE CENTER TO COLUMN 18.100
