MAKINO SNC 106-A30

Type:

Vertical Machining Centers

Manufacturer:

MAKINO

Model:

SNC 106-A30

Condition:

Not Specified

Year:

1998

Stock #:

30491

Status:

Sold

Description:

39.37"X, 23.62"Y, 15.75"Z

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

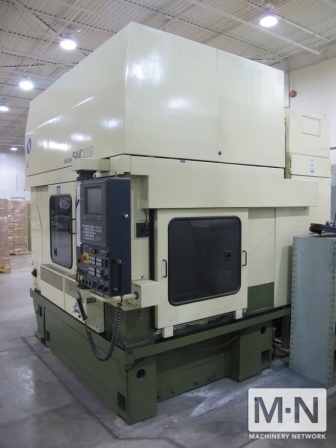

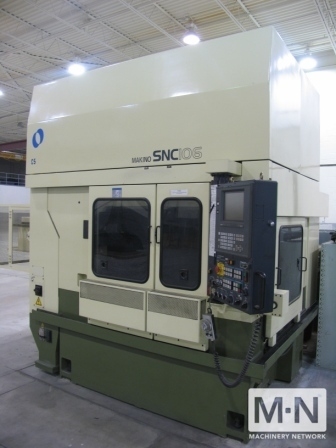

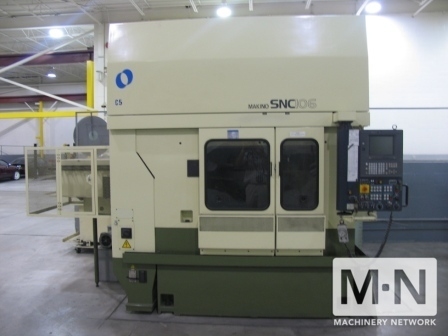

(1) USED MAKINO SNC 106-A30, VERTICAL MACHINING CENTER
New 1998 Specifications:
X AXIS TRAVEL 39.37"
Y AXIS TRAVEL 23.62"
Z AXIS TRAVEL 15.75"

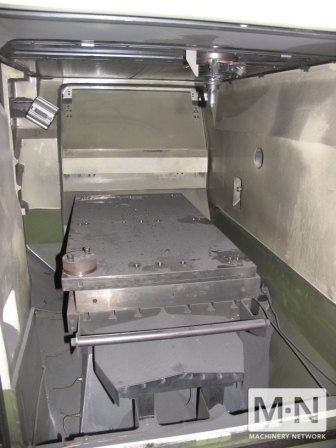

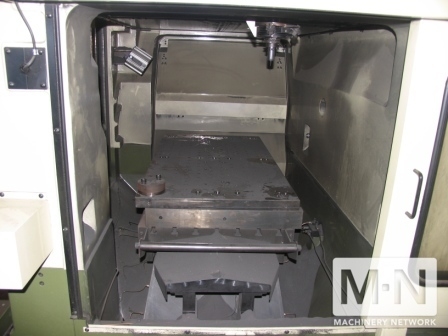

TABLE SIZE 43.3"L x 23.62"W
MAX TABLE LOAD CAPACITY 2,205 LBS
PALLET TRANSFER LIFT AUTOMATIC
PALLET TRANSFER MANUAL
DISTANCE FROM SPINDLE GAGE TO TABLE 11.8 - 27.5"
SPINDLE SPEED 200-15,000 RPM
SPINDLE TAPER HOLE 40 SPINDLE TAPER
SPINDLE DRIVE MOTOR 5 HP
SPINDLE TOOL POWER CLAMP DISC SPRING CLAMP AIR HYDRAULIC UNCLAMP
SPINDLE ORIENTATION ELECTRIC SERVO TYPE
ATC 30
MACHINE HEIGHT 112"
APPROX MACHINE WEIGHT 16,500 LBS
TYPE OF TOOL SHANK 40T (JIS B6339)
TYPE OF RETENTION KNOB (SPECIAL) MAS P403T-1 (30 DEG)
TOOL STORAGE CAPACITY 5 TOOLS
TOOL CHANGER TIME 15 SEC
MAX TOOL DIAMETER 3.5"
MAX TOOL LENGTH 11.8"

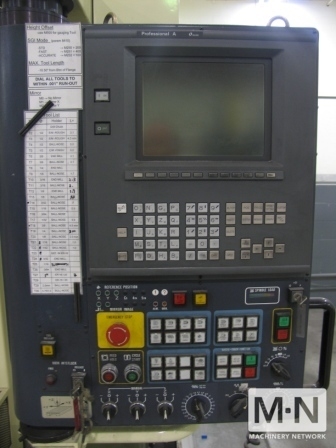

MAX TOOL WEIGHT 17.6 LBS Equipped With: -PROFESSIONAL A CONTROL-PRO 3 (FANUC 16-M)
-SEALED ENCLOSURE WITH INTEGRATED VACUUM SYSTEM
-FACTORY INSTALLED PALLET CHANGER
-NC SYSTEM, DLOG (D NET PC) SYSTEM
-TABLE LOAD UNLOAD, MANUAL SHUTTLE SYSTEM
-AMANO HI-PERFORMANCE DUST COLLECTION SYSTEM
-AIR FLOW RATE WITH A MAX OF 14000L/MIN
-FILTER IS 2 PIECES CARTRIDGE TYPE (AUTOMATIC REVERSE FLUSHING)
-HOPPER CAPACITY OF 56 L
