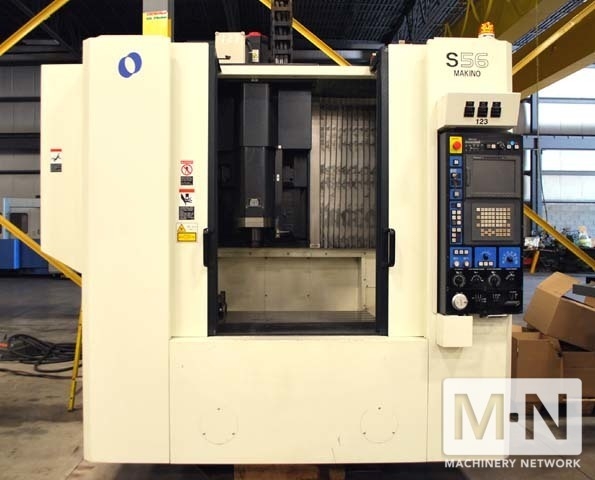

MAKINO S56
Type:
Vertical Machining Centers
Manufacturer:
MAKINO
Model:
S56
Condition:
Not Specified
Year:
2004
Stock #:
29245
Status:
Sold
Description:
MAKINO
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAKINO MODEL S56 VERTICAL MACHINING CENTER
NEW 2004
SPECIFICATIONS
TABLE SIZE: 39.4" X 19.7"
TRAVELS
X-AXIS: 35.4"
Y-AXIS: 19.7"
Z-AXIS: 17.7"
SPINDLE TAPER: CT-40
SPINDLE: 130-13,000 RPM
RAPID TRAVERSE: 1,574 IPM
CUTTING FEED RATE: 1,574 IPM
MAXIMUM WORK PIECE: 39.4"X 19.7"X17.7"
MAXIMUM PAYLOAD: 1323 LBS
ATC CAPACITY: 20 (TWIN ARM STYLE)
TOOL TO TOOL: 1.2 SEC.
CHIP TO CHIP: 4.5 SEC.
MAXIMUM TOOL LENGTH: 11.81"
MAXIMUM TOOL DIAMETER: 5.12"
MAXIMUM TOOL WEIGHT: 17.6 LBS
WEIGHT, APPROX.: 15,000 LBS
ELECTRICS: 230V, 3 PH, 60 CYCLE
TRANSFORMER FOR 440V
EQUIPPED WITH
PROFESSIONAL 3 CNC CONTROL WITH SUPER GEOMETRIC
INTELLIGENCE SERVO CONTROL FOR HIGH VELOCITY 3D
INTERPOLATION
BLUM LASER TYPE TOOL LENGTH MEASUREMENT
SPINDLE CHILLER
AIR DRYER
CHIP CONVEYOR
COOLANT FLASH PUMP
BRIDGE TYPE CASTING CONSTRUCTION
NEW 2004
SPECIFICATIONS
TABLE SIZE: 39.4" X 19.7"
TRAVELS
X-AXIS: 35.4"
Y-AXIS: 19.7"
Z-AXIS: 17.7"
SPINDLE TAPER: CT-40
SPINDLE: 130-13,000 RPM
RAPID TRAVERSE: 1,574 IPM
CUTTING FEED RATE: 1,574 IPM
MAXIMUM WORK PIECE: 39.4"X 19.7"X17.7"
MAXIMUM PAYLOAD: 1323 LBS
ATC CAPACITY: 20 (TWIN ARM STYLE)
TOOL TO TOOL: 1.2 SEC.
CHIP TO CHIP: 4.5 SEC.
MAXIMUM TOOL LENGTH: 11.81"
MAXIMUM TOOL DIAMETER: 5.12"
MAXIMUM TOOL WEIGHT: 17.6 LBS
WEIGHT, APPROX.: 15,000 LBS
ELECTRICS: 230V, 3 PH, 60 CYCLE
TRANSFORMER FOR 440V
EQUIPPED WITH
PROFESSIONAL 3 CNC CONTROL WITH SUPER GEOMETRIC
INTELLIGENCE SERVO CONTROL FOR HIGH VELOCITY 3D
INTERPOLATION
BLUM LASER TYPE TOOL LENGTH MEASUREMENT
SPINDLE CHILLER
AIR DRYER
CHIP CONVEYOR
COOLANT FLASH PUMP
BRIDGE TYPE CASTING CONSTRUCTION
