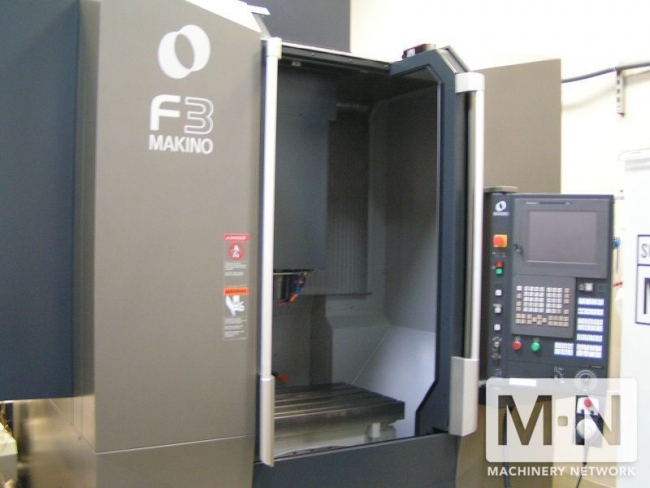

MAKINO F3

Type:

Vertical Machining Centers

Manufacturer:

MAKINO

Model:

Condition:

Not Specified

Year:

2013

Stock #:

34113

Status:

Sold

Description:

MAKINO VMC F3, 25.6" X 19.7" X 17.7",

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

Makino F3
Date of Mfg: Jan 2013

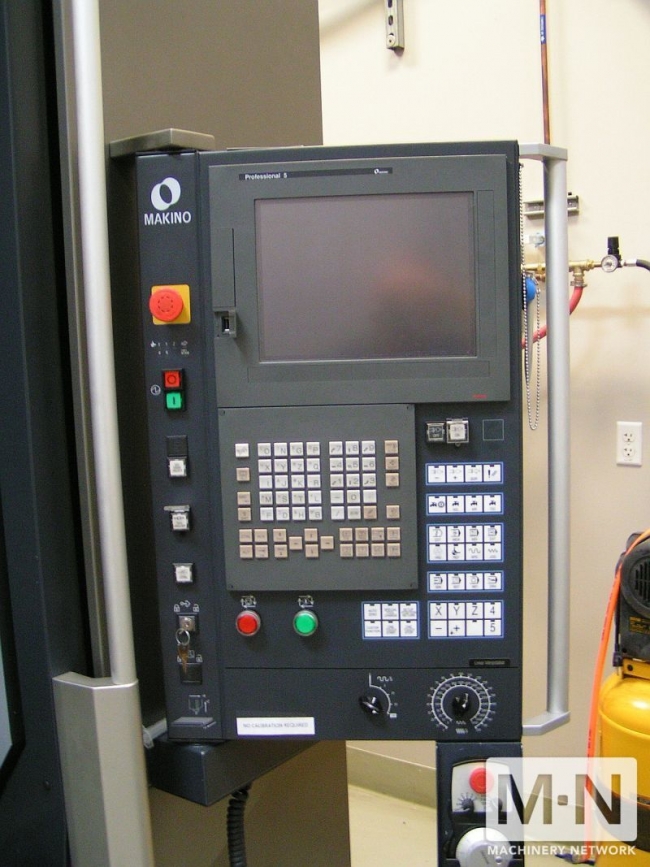

Controller: Makino Professional 5
Hours on machine:
Energized time: 4133 hours
Operation time: 2074
Cutting time: 2062
Spindle spin time: 2595
Table Size 33.5" x 19.7"
X 25.6"
Y 19.7"
Z 17.7"
Spindle RPM 20000
Rapid Traverse 787 ipm
Cutting Feedrate 787 ipm
Maximum Workpiece 25.6" x 19.7" x 17.7"
Maximum Payload 1,432 lbs
ATC Capacity 30
Tool to Tool
Chip to Chip
Maximum Tool Length 11.8"
Maximum Tool Diameter 4.72"
Maximum Tool Weight 17.6 lbs
Standard Features

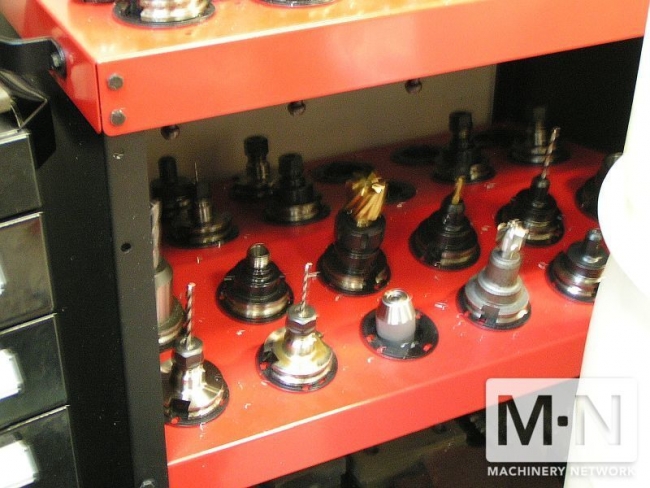

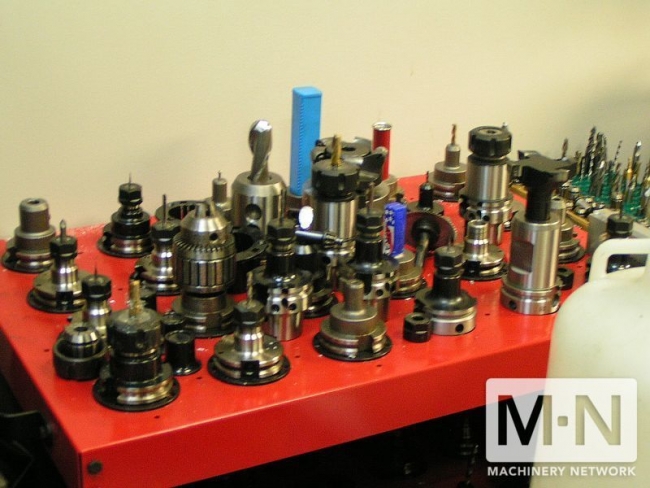

* 20,000-rpm, HSK-63A Spindle
* Scale Feedback for X-, Y- and Z-Axes

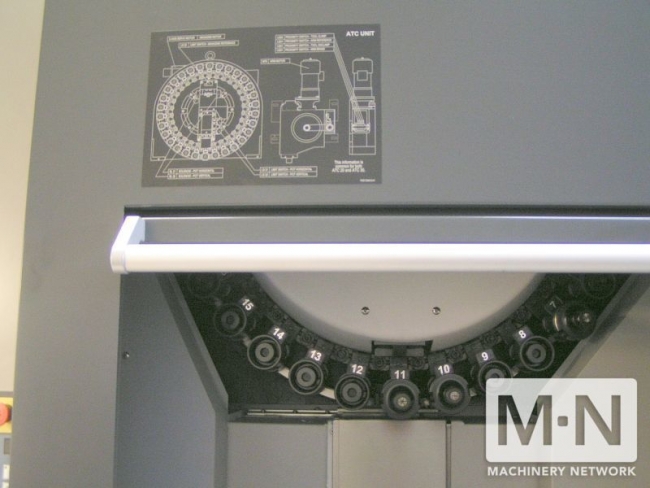

* Thirty (30)-Tool Magazine
* ATC Shutter
* Automatic Air Blow

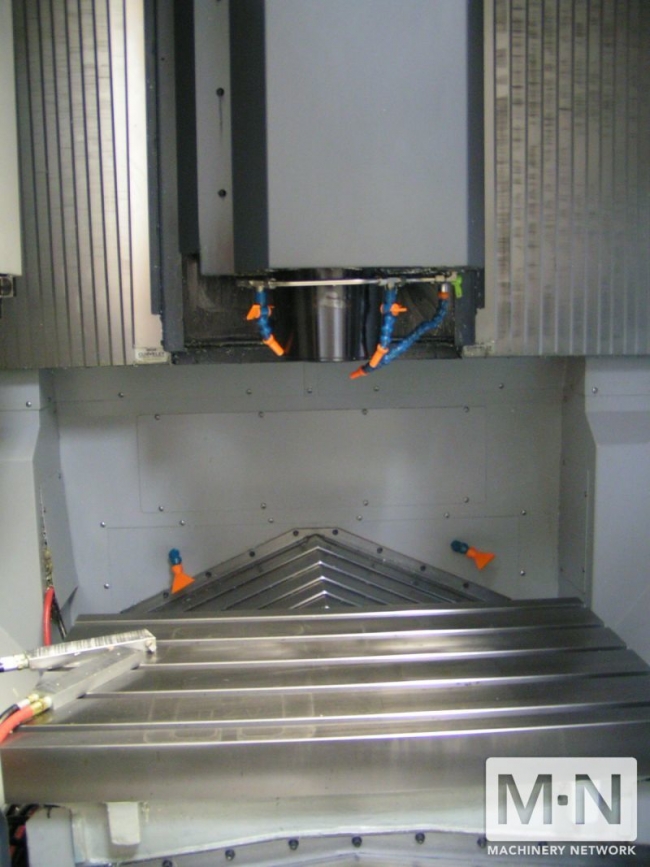

* Nozzle Coolant

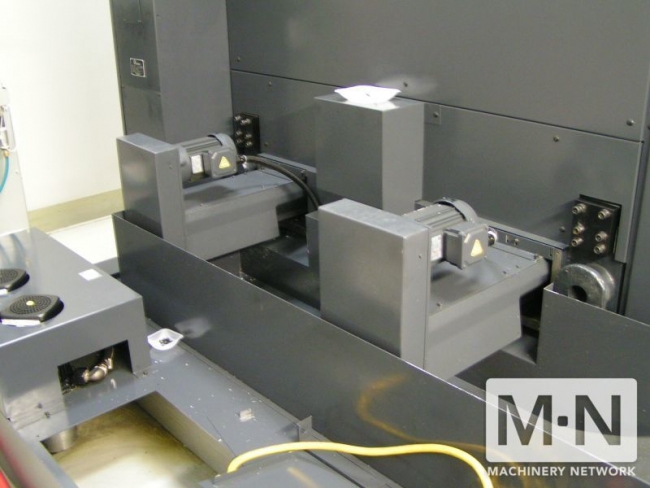

* Rear Coolant Tank with Chip Augers
* Super Geometric Intelligence Control (SGI.4)
* Data Center (160 MB)
* Part Program Storage (160 Meters)
* Program Numbers (120)
* Rigid Tapping

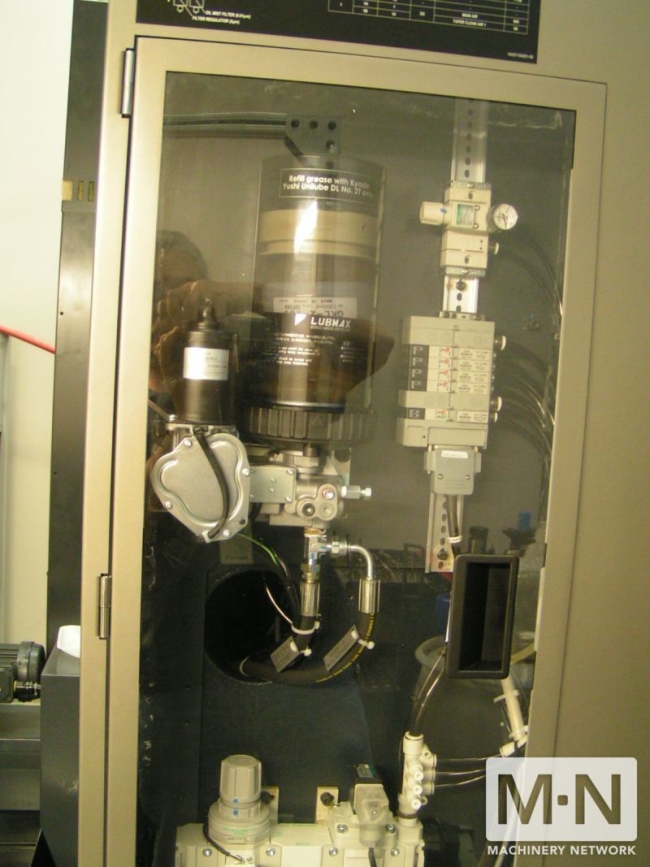

* Centralized Auto Grease
* Fully Enclosed Splash Guard
* Fixed Manual Pulse Generator

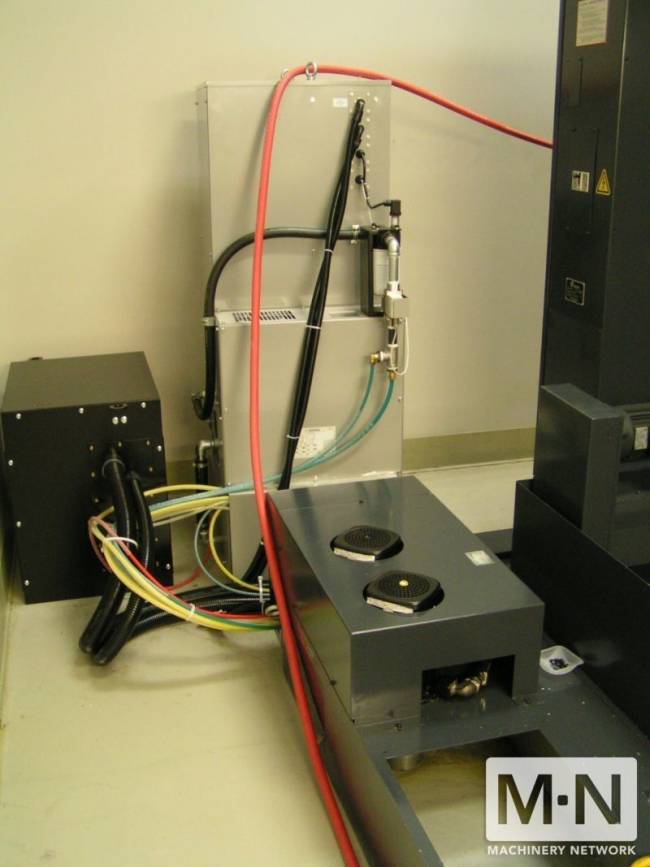

* Air Dryer
* Helical Interpolation
* Programming Data Input (G10)
* Tool Offset Pairs (64 Total)
* Tool Offset Memory C
* Cutter Compensation C
