DMG DMC-100 U DUOBLOCK
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
DMG
Model:
DMC-100 U DUOBLOCK
Condition:
Not Specified
Year:
2001
Stock #:
31933
Status:
Sold
Description:
dupe
Location:
Michigan, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

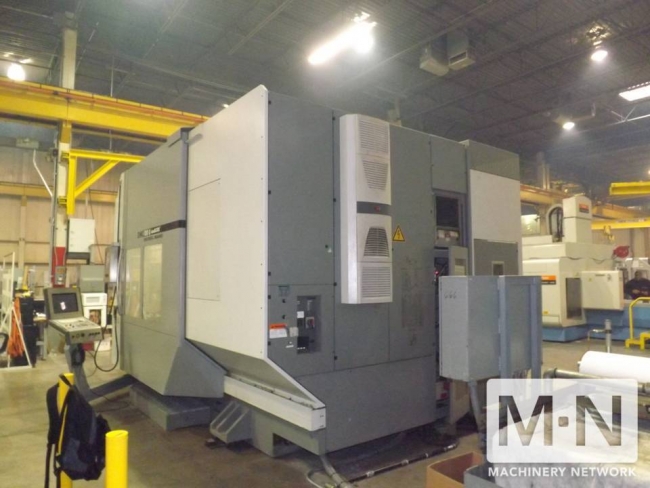

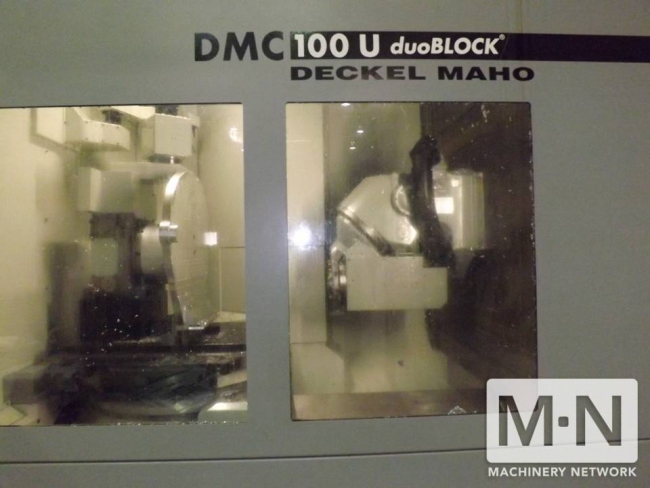

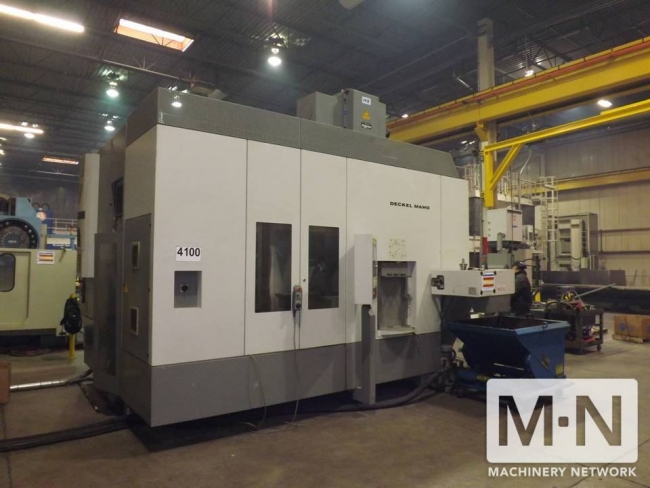

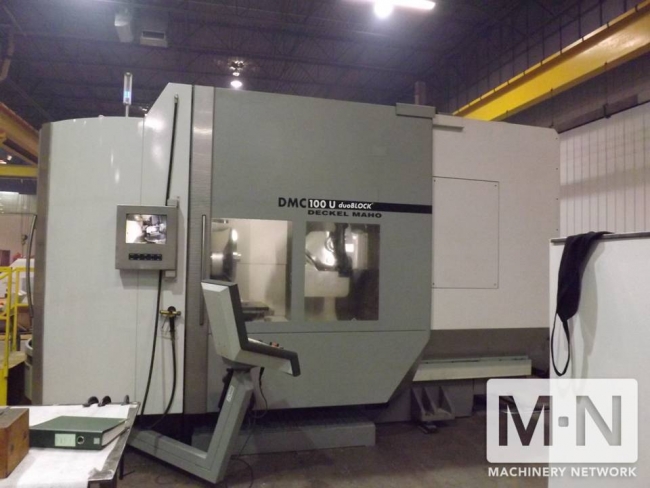

1) DMG DMC100U DUOBLOCK 5-AXIS HORIZONTAL MACHINING CENTER
NEW 2001
SPECIFICATIONS:
SWIVEL ROTARY TABLE DIMENSIONS:......39.4" x 31.5"
NUMBER OF ROTARY TABLES:.............2
AXIS TRAVELS:
X-...................................39.4"
Y-...................................39.4"
Z-...................................39.4"
B-...................................360º
LOAD CAPACITY:.......................3,306.9 LBS.
SWIVEL RANGE:........................-25/+120 DEGREES
MAX. SWING...........................39.4"
MAX. WORKPIECE HEIGHT................47.2"
SPINDLE SPEEDS:......................10,000 RPM
MOTOR HORSEPOWER.....................37 HP
RAPID TRAVERSE AND FEED SWIVEL:......30
NC CONTROLLED SWIVEL HEAD RANGE:.....0-190 DEGREES
MAX. FEED RATE X,Y,Z:................2,362.2 IPM
MAX. RAPID TRAVERSE:.................2,362.2 IPM
ROTARY AXIS CLAMPING.................HYDRO-MECHANICAL
TOOL CHANGER:........................120
SPINDLE TAPER:.......................HSK100
CHIP TO CHIP.........................7 SECS.
TOOL CHANGE TIME.....................4.5 SECS.
EQUIPPED WITH:

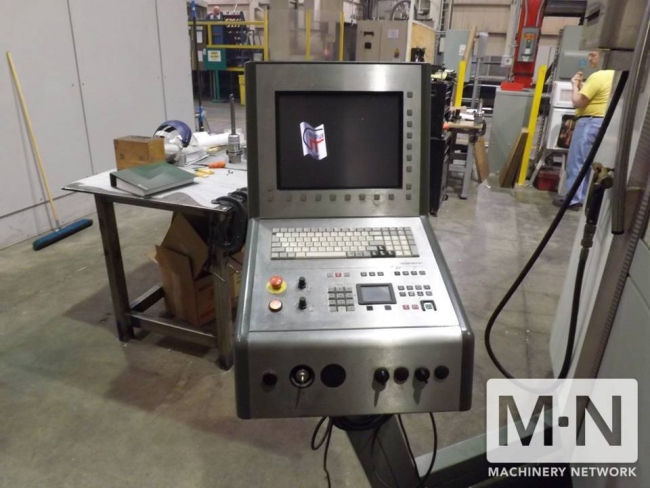

Heidenhain Mill Plus IT V600
Production package with:
Internal coolant supply 40 bar
Chip conveyor
Rotoclear Visor
Paperband filter
Machine enclosure

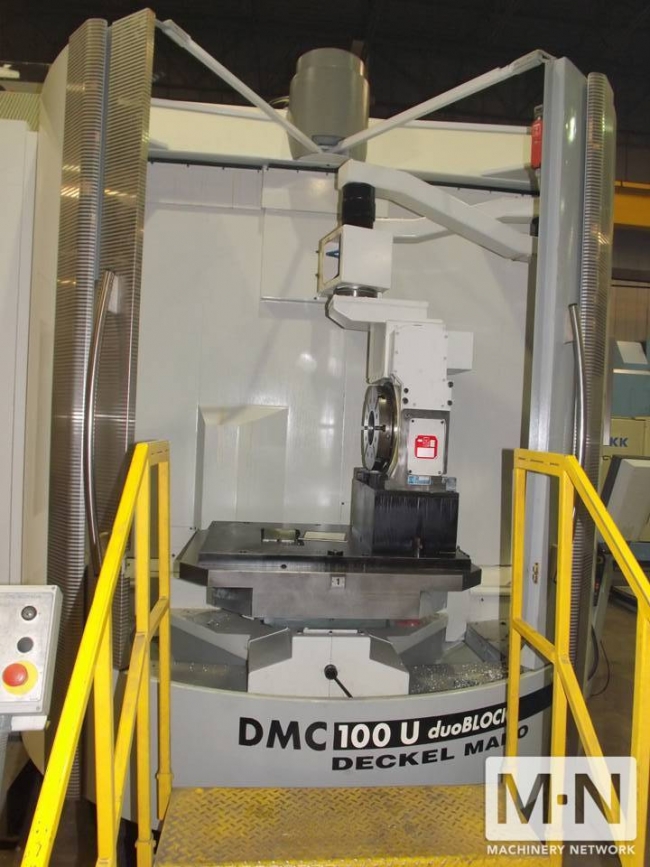

Rotating wall-pallet changer
NT-hybrid
4-color signal lamp
Laminated safety glass
Electronic handwheel—Mode 4
Splash gun with pump 1 ban 40L/Min
Electric Cabinet Cooling
3D Drocessing & Tool offset
Infrared probe Renishaw and precision package
TRANSMIT surface transformation (milling cylinder)
3D QuickSET: Tool measurement in the work area with BLUM Laser
Tool store, chain system with 120 pockets, Tool management SINDTI
CompCad compression circuitry for high speed machining
NEW 2001
SPECIFICATIONS:
SWIVEL ROTARY TABLE DIMENSIONS:......39.4" x 31.5"
NUMBER OF ROTARY TABLES:.............2
AXIS TRAVELS:
X-...................................39.4"
Y-...................................39.4"
Z-...................................39.4"
B-...................................360º
LOAD CAPACITY:.......................3,306.9 LBS.
SWIVEL RANGE:........................-25/+120 DEGREES
MAX. SWING...........................39.4"
MAX. WORKPIECE HEIGHT................47.2"
SPINDLE SPEEDS:......................10,000 RPM
MOTOR HORSEPOWER.....................37 HP
RAPID TRAVERSE AND FEED SWIVEL:......30
NC CONTROLLED SWIVEL HEAD RANGE:.....0-190 DEGREES
MAX. FEED RATE X,Y,Z:................2,362.2 IPM
MAX. RAPID TRAVERSE:.................2,362.2 IPM
ROTARY AXIS CLAMPING.................HYDRO-MECHANICAL
TOOL CHANGER:........................120
SPINDLE TAPER:.......................HSK100
CHIP TO CHIP.........................7 SECS.
TOOL CHANGE TIME.....................4.5 SECS.
EQUIPPED WITH:
Heidenhain Mill Plus IT V600
Production package with:
Internal coolant supply 40 bar
Chip conveyor
Rotoclear Visor
Paperband filter
Machine enclosure
Rotating wall-pallet changer
NT-hybrid
4-color signal lamp
Laminated safety glass
Electronic handwheel—Mode 4
Splash gun with pump 1 ban 40L/Min
Electric Cabinet Cooling
3D Drocessing & Tool offset
Infrared probe Renishaw and precision package
TRANSMIT surface transformation (milling cylinder)
3D QuickSET: Tool measurement in the work area with BLUM Laser
Tool store, chain system with 120 pockets, Tool management SINDTI
CompCad compression circuitry for high speed machining
