OKK HM800S
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
OKK
Model:
HM800S
Condition:
Not Specified
Year:
2016
Stock #:
36185
Status:
Sold
Description:
FANUC 31i-B5, 12K RPM, CAT 50, BRT FULL 4TH, CTS,
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

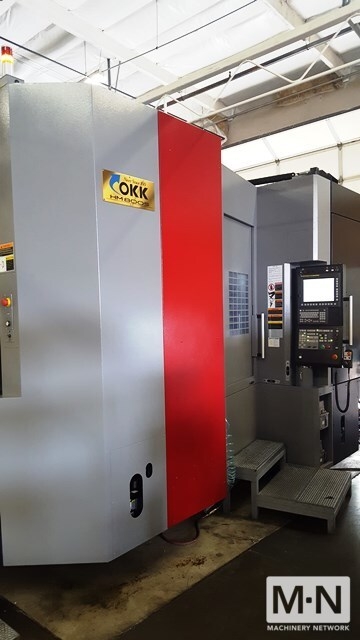

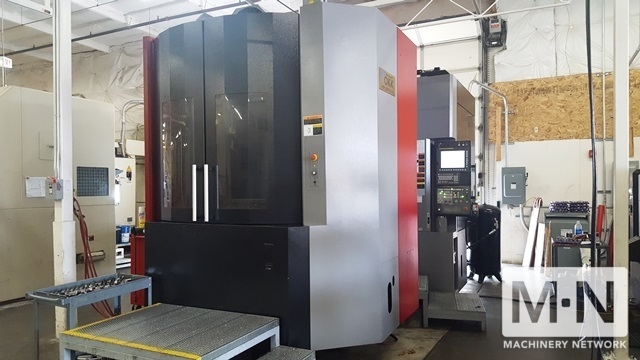

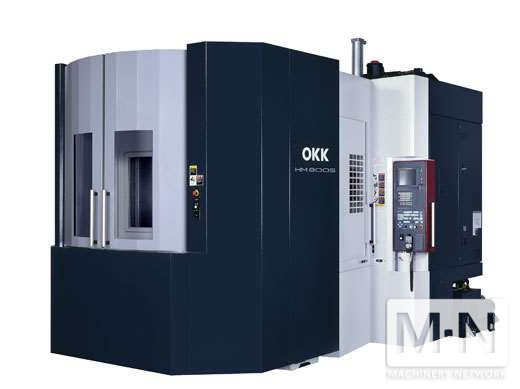

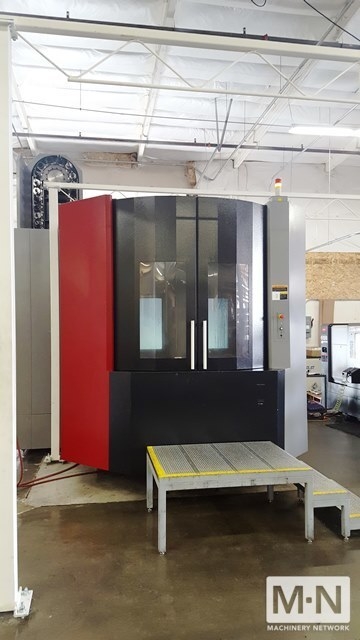

(1) USED OKK HM800S 4-AXIS HORIZONTAL MACHINING CENTER
NOV. 2016
Like new - only 200 hours
SPECIFICATIONS:
X AXIS TRAVEL .......... 41.34"
Y AXIS TRAVEL .......... 35.43"
Z AXIS TRAVEL .......... 34.65"
PALLET INDEXING ........ 0.001 DEG/360,000 POSITION
RAPID TRAVERSE RATE .... 2,953IPM
SPINDLE SPEEDS ......... 12,000 RPM
SPINDLE MOTOR .......... 40/35HP
MAGAZINE CAPACITY ...... 60 ATC
TABLE SIZE ............. 31.49" X 31.49"
SPINDLE TAPER .......... CAT 50
MACHINE WEIGHT ......... 40,785 LBS
MACHINE DIMENSIONS...... 17.9' x 16.6' x 14.3'
EQUIPPED WITH:

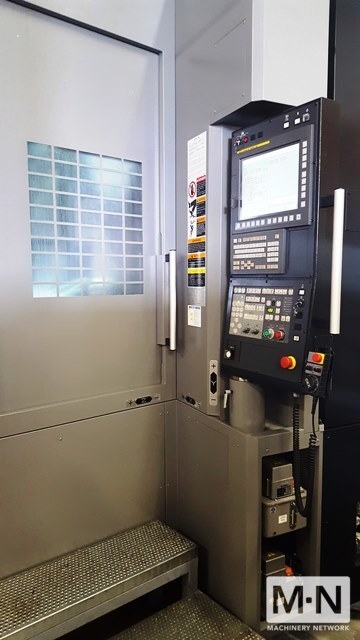

FANUC 31I-B5 CONTROL
12000 RPM CAT NO. 50 SPINDLE INTEGRAL MS
BEARING LUBRICATION IS OIL SHO

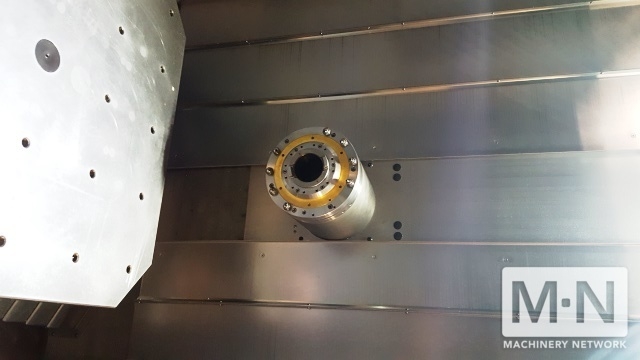

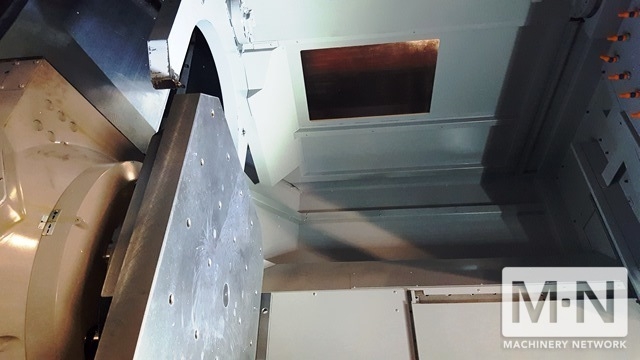

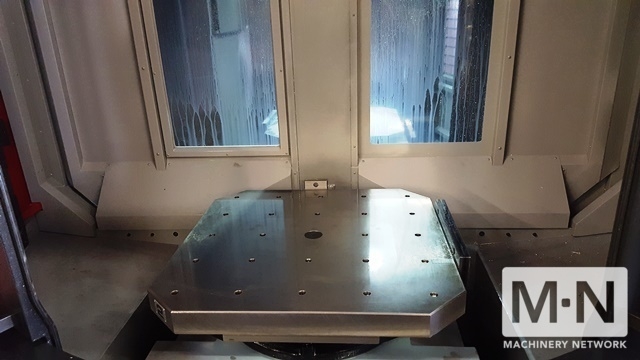

BRT FULL 4TH AXIS TABLE
60 TOOL MAGAZINE
HIGH TORQUE SPINDLE; 460 FT/LBS AC 60/40/35 HP (15% ED)
BIG PLUS DOUBLE CONTACT SPINDLE

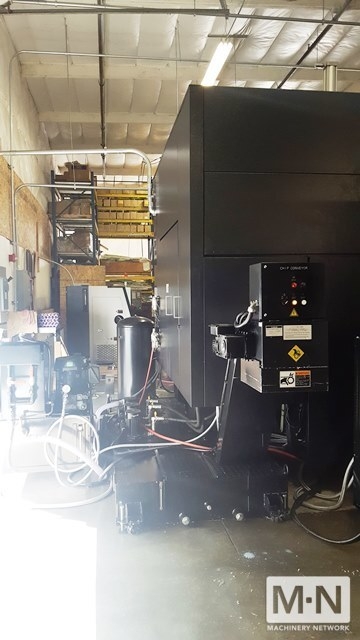

LIFT-UP CHIP CONVEYOR WITH HINGE BELT FOR STEEL

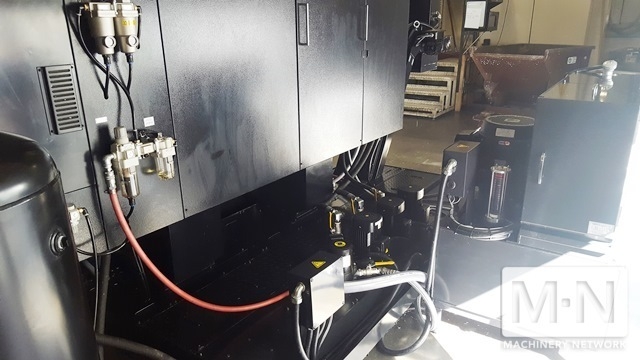

COOLANT THRU THE SPINDLE W/ FILTRATION SYSTEM,
OPERATING AT 1000 PSI
MEMORY - INCREASE FROM 1280M TO 16,796 FT (5120M) 2MEG
NC OPTION PACKAGE A
CUSTOM MACRO B, 82 VARIABLES
MEMORY - INCREASE TO 4,199 FT (1280 M), 512 K CHAR / 1000 PROGRAMS
PROGRAMMABLE MIRROR IMAGE
RUN HOUR & PARTS COUNTER DISPLAY
TOOL LIFE MANAGEMENT (256 SETS)
TOOL OFFSETS INCREASE TO 200 SETS TOTAL
WORK COORDINATE SYSTEM, ADDITIONAL 48 TYPES
HELICAL INTERPOLATION
ALL AVAILABLE MANUAL
LOCATION: LOS ANGELES, CA
NOV. 2016
Like new - only 200 hours
SPECIFICATIONS:
X AXIS TRAVEL .......... 41.34"
Y AXIS TRAVEL .......... 35.43"
Z AXIS TRAVEL .......... 34.65"
PALLET INDEXING ........ 0.001 DEG/360,000 POSITION
RAPID TRAVERSE RATE .... 2,953IPM
SPINDLE SPEEDS ......... 12,000 RPM
SPINDLE MOTOR .......... 40/35HP
MAGAZINE CAPACITY ...... 60 ATC
TABLE SIZE ............. 31.49" X 31.49"
SPINDLE TAPER .......... CAT 50
MACHINE WEIGHT ......... 40,785 LBS
MACHINE DIMENSIONS...... 17.9' x 16.6' x 14.3'
EQUIPPED WITH:
FANUC 31I-B5 CONTROL
12000 RPM CAT NO. 50 SPINDLE INTEGRAL MS
BEARING LUBRICATION IS OIL SHO
BRT FULL 4TH AXIS TABLE
60 TOOL MAGAZINE
HIGH TORQUE SPINDLE; 460 FT/LBS AC 60/40/35 HP (15% ED)
BIG PLUS DOUBLE CONTACT SPINDLE
LIFT-UP CHIP CONVEYOR WITH HINGE BELT FOR STEEL
COOLANT THRU THE SPINDLE W/ FILTRATION SYSTEM,
OPERATING AT 1000 PSI
MEMORY - INCREASE FROM 1280M TO 16,796 FT (5120M) 2MEG
NC OPTION PACKAGE A
CUSTOM MACRO B, 82 VARIABLES
MEMORY - INCREASE TO 4,199 FT (1280 M), 512 K CHAR / 1000 PROGRAMS
PROGRAMMABLE MIRROR IMAGE
RUN HOUR & PARTS COUNTER DISPLAY
TOOL LIFE MANAGEMENT (256 SETS)
TOOL OFFSETS INCREASE TO 200 SETS TOTAL
WORK COORDINATE SYSTEM, ADDITIONAL 48 TYPES
HELICAL INTERPOLATION
ALL AVAILABLE MANUAL
LOCATION: LOS ANGELES, CA
