DMG DMU 100P
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
DMG
Model:
DMU 100P
Condition:
Not Specified
Year:
2004
Stock #:
31518
Status:
Sold
Description:
Siemens 840D,39"X39"X39", 60 Station ATC, 12,000 RPM, HSK 63A Spindle
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

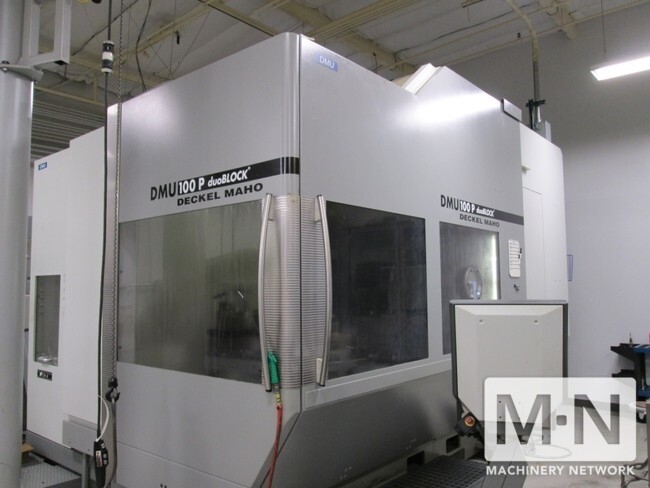

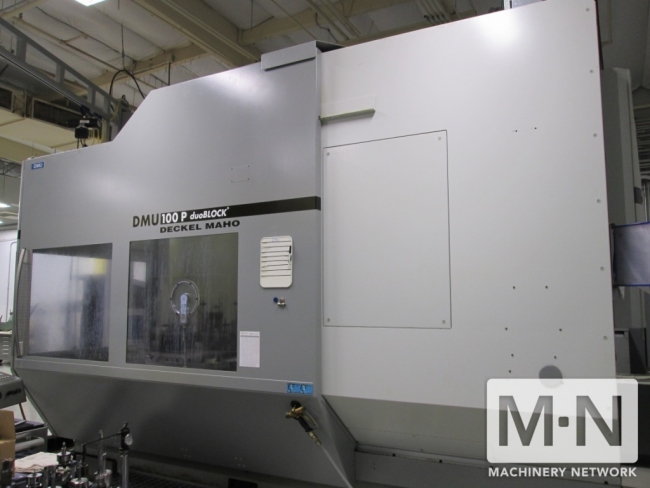

(1) USED DMG DMU-100P UNIVERSAL CNC 5-AXIS MACHINING CENTER
NEW 2004 S/N:11450000223
SPECIFICATIONS:

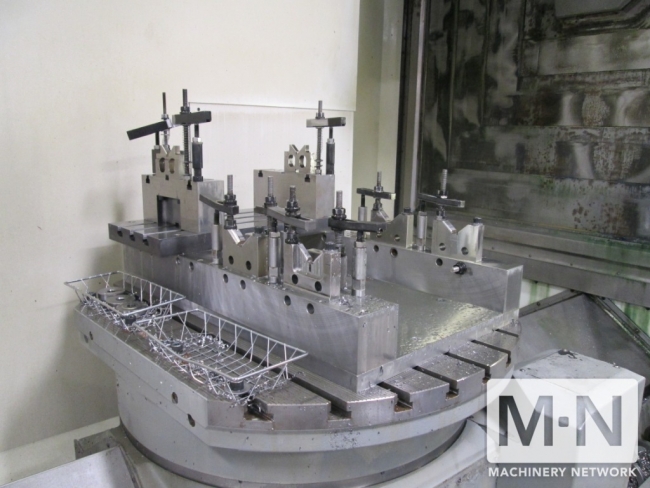

FULL ROTARY TABLE....................43.3"X35.4"
MAX TABLE LOAD.......................4,400LBS
DISTANCE BETWEEN T-SLOTS.............4"
X-AXIS...............................39.4"
Y-AXIS...............................39.4"
X-AXIS...............................39.4"
SWIVEL RANGE ........................-25/+120
NC CONTROLLED SWIVEL HEAD............0-190 DEGREE
SPINDLE TAPER........................HSK 63A
SPINDLE SPEED........................12,000 RPM
STATION ATC..........................60
COOLANT THROUGH SPINDLE..............580 PSI
RAPID TRAVERSE X, Y, AND Z...........2362 IN/MIN
MAXIMUM FEED SPEED...................2362
EQUIPPED WITH:

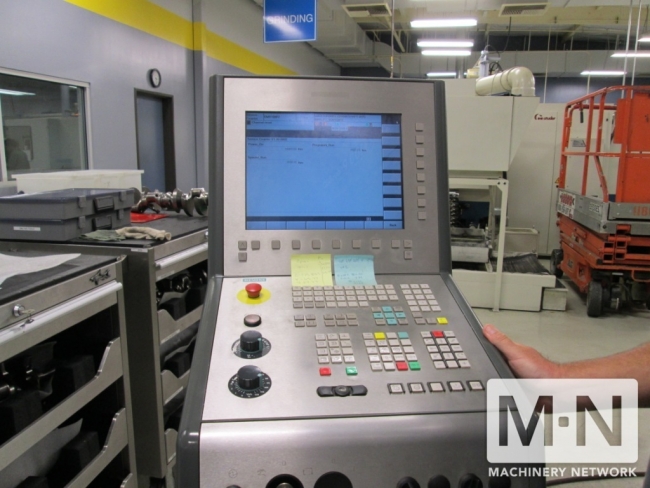

SIEMENS 840-D POWERLINE CONTROL (3-D)
FULL ARTICULATED "A" AXIS HEAD
FULL CONTOURING "B" AXIS TABLE

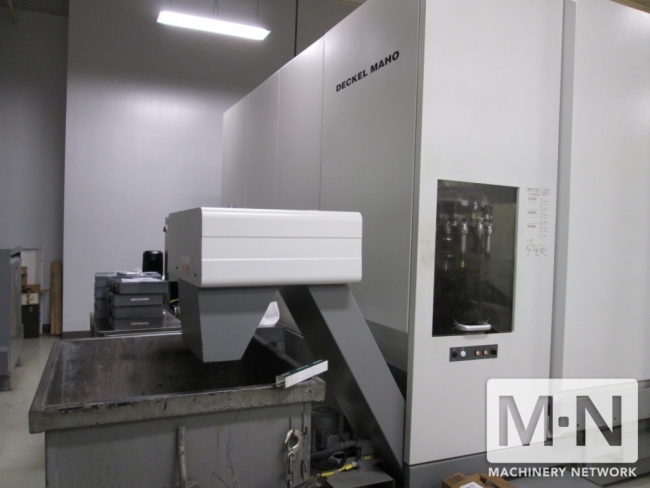

CHIP CONVEYOR SYSTEM
CUTTING HOURS: 3,350
RENISHAW MP-700 PROBE

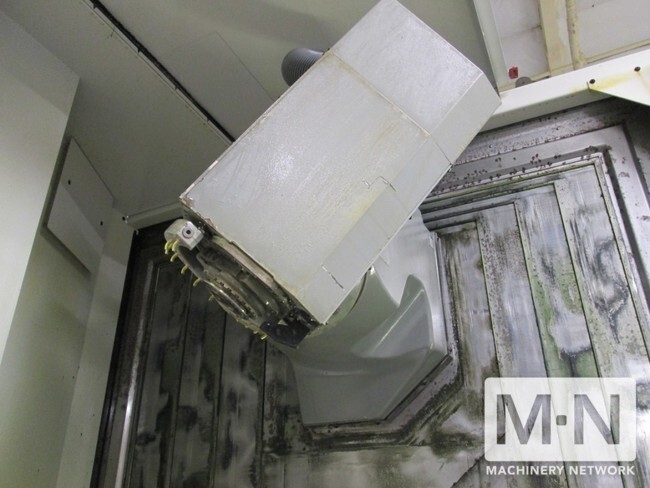

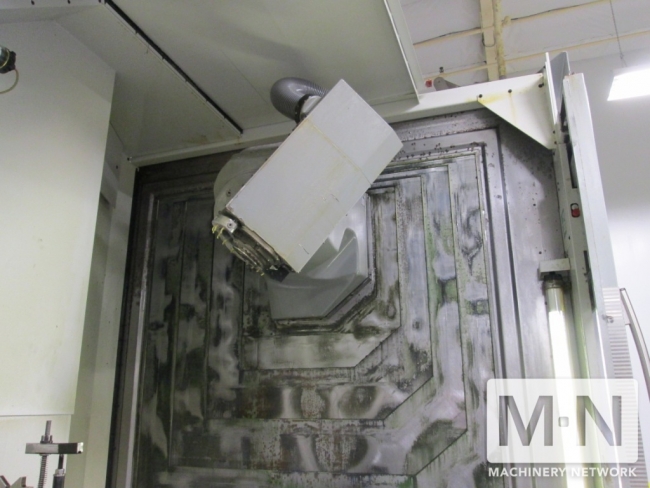

AUTOMATIC SWIVEL MILLING HEAD
HORIZONTAL TOOL CHANGER
INFRARED MEASURING PROBE TYPE RENISHAW MP10
COOLANT THRU THE SPINDLE
NEW 2004 S/N:11450000223
SPECIFICATIONS:
FULL ROTARY TABLE....................43.3"X35.4"
MAX TABLE LOAD.......................4,400LBS
DISTANCE BETWEEN T-SLOTS.............4"
X-AXIS...............................39.4"
Y-AXIS...............................39.4"
X-AXIS...............................39.4"
SWIVEL RANGE ........................-25/+120
NC CONTROLLED SWIVEL HEAD............0-190 DEGREE
SPINDLE TAPER........................HSK 63A
SPINDLE SPEED........................12,000 RPM
STATION ATC..........................60
COOLANT THROUGH SPINDLE..............580 PSI
RAPID TRAVERSE X, Y, AND Z...........2362 IN/MIN
MAXIMUM FEED SPEED...................2362
EQUIPPED WITH:
SIEMENS 840-D POWERLINE CONTROL (3-D)
FULL ARTICULATED "A" AXIS HEAD
FULL CONTOURING "B" AXIS TABLE
CHIP CONVEYOR SYSTEM
CUTTING HOURS: 3,350
RENISHAW MP-700 PROBE
AUTOMATIC SWIVEL MILLING HEAD
HORIZONTAL TOOL CHANGER
INFRARED MEASURING PROBE TYPE RENISHAW MP10
COOLANT THRU THE SPINDLE
