MORI SEIKI NH4000DCG
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MORI SEIKI
Model:
NH4000DCG
Condition:
Not Specified
Stock #:
31465
Status:
Sold
Description:
MSX-501 Control, 22"x22"x24", 4th axis, 120 ATC, 14K RPM
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

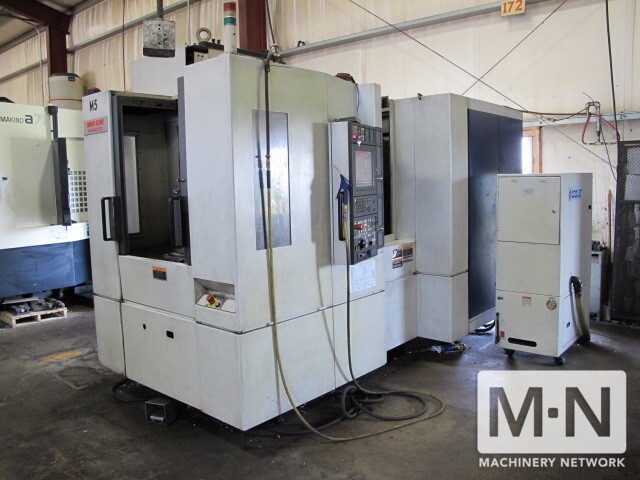

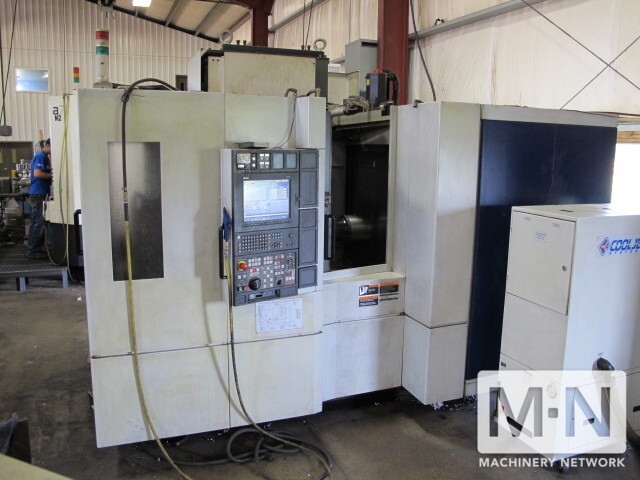

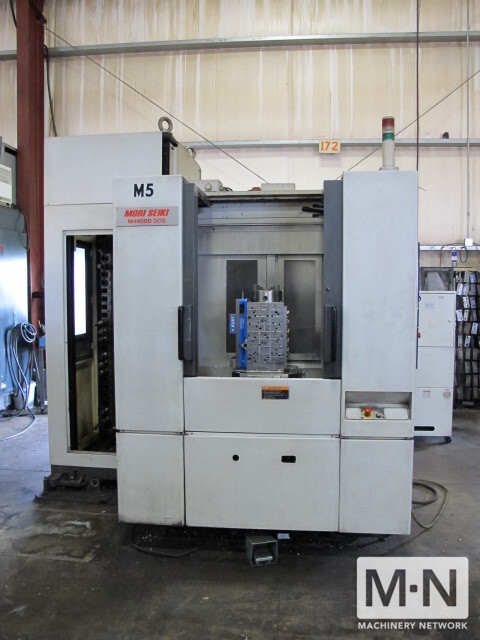

1) MORI SEIKI NH4000DCG CNC HORIZONTAL MACHINING CENTER
NEW:
Specifications:

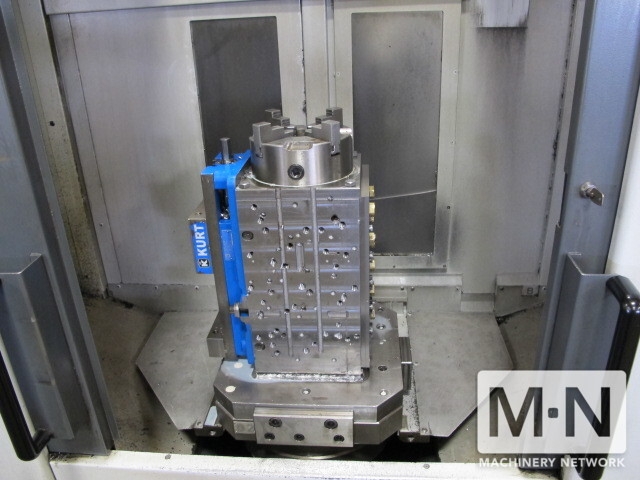

Pallet Size:..........................15.75” X 15.75”
Spindle Nose to Pallet Center:........3.94”- 24.8”
Travels
X ....................................22.05"
Y ....................................22.05"
Z ....................................24.8”

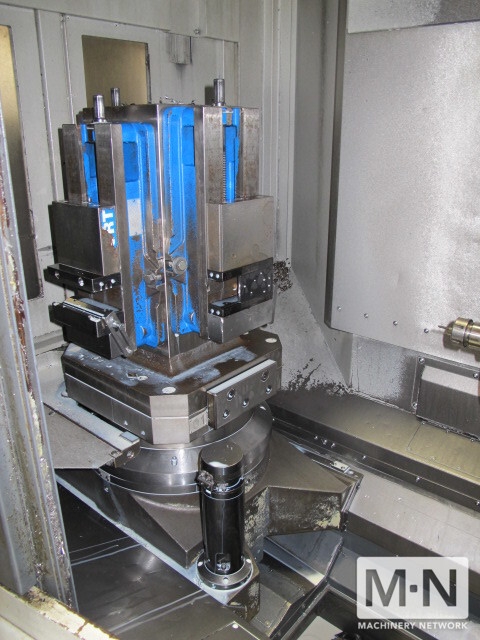

Indexing: ............................Full 4th Axis
Max. Pallet Load: ....................880lbs
Pallet Change Time: ..................6 Seconds
Rapids: ..............................1,968.5 IPM
Max. Cutting Feed Rate: ..............0-1,968.5 IPM
Taper: ...............................CAT40
ATC ..................................120 Tools

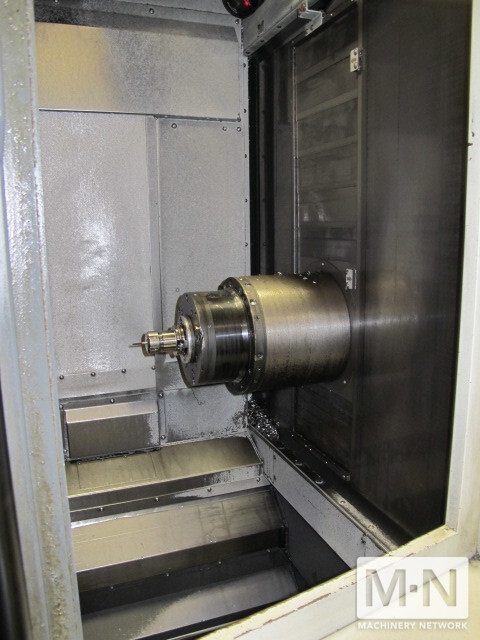

Spindle Speed ........................14,000 RPM
Spindle Motor ........................25 HP
Max. Tool Weight: ....................17.6lbs
Max. Tool Length/Diameter: ...........15.75” X 5.51”
Tool to Tool: ........................9 Seconds
Equipped With:

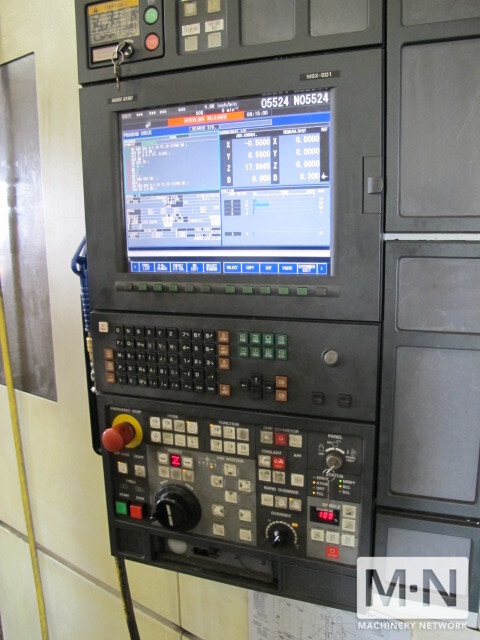

MSX-501 Control

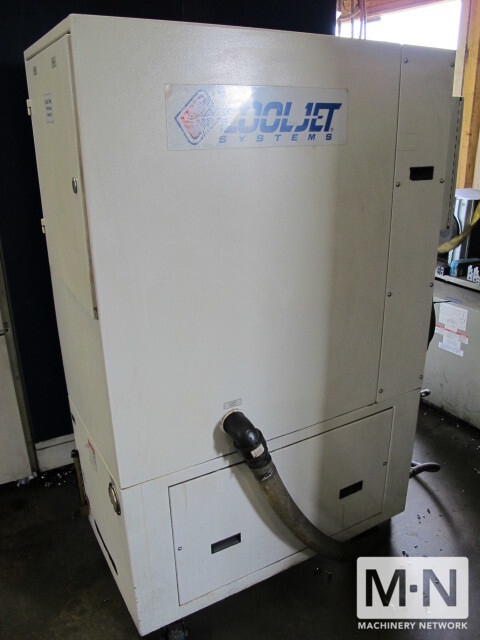

Cool Jet 1000 PSI Coolant Thru Spindle
Rear Discharge Chip Conveyor
Probing System
NEW:
Specifications:
Pallet Size:..........................15.75” X 15.75”
Spindle Nose to Pallet Center:........3.94”- 24.8”
Travels
X ....................................22.05"
Y ....................................22.05"
Z ....................................24.8”
Indexing: ............................Full 4th Axis
Max. Pallet Load: ....................880lbs
Pallet Change Time: ..................6 Seconds
Rapids: ..............................1,968.5 IPM
Max. Cutting Feed Rate: ..............0-1,968.5 IPM
Taper: ...............................CAT40
ATC ..................................120 Tools
Spindle Speed ........................14,000 RPM
Spindle Motor ........................25 HP
Max. Tool Weight: ....................17.6lbs
Max. Tool Length/Diameter: ...........15.75” X 5.51”
Tool to Tool: ........................9 Seconds
Equipped With:
MSX-501 Control
Cool Jet 1000 PSI Coolant Thru Spindle
Rear Discharge Chip Conveyor
Probing System
