EMCO 665MC
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
EMCO
Model:
665MC
Condition:
Not Specified
Year:
2005
Stock #:
31151
Status:
Sold
Description:
Siemens Sinumerik 840D Control, 2.5" Bar, 29.3" Turning Length, 16.9" Turn Diam., Bar Feed.
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

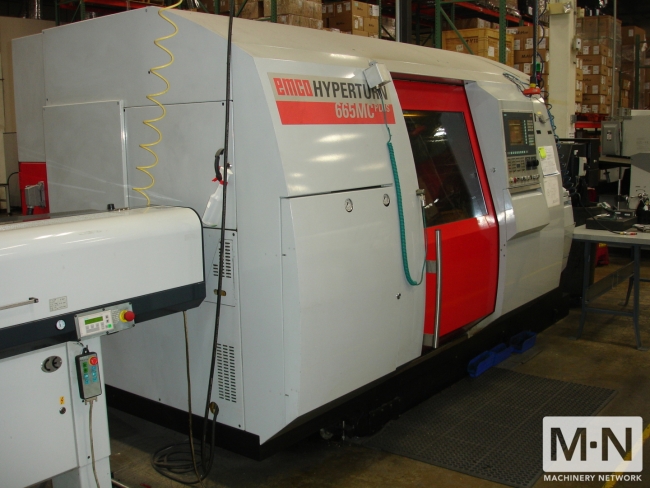

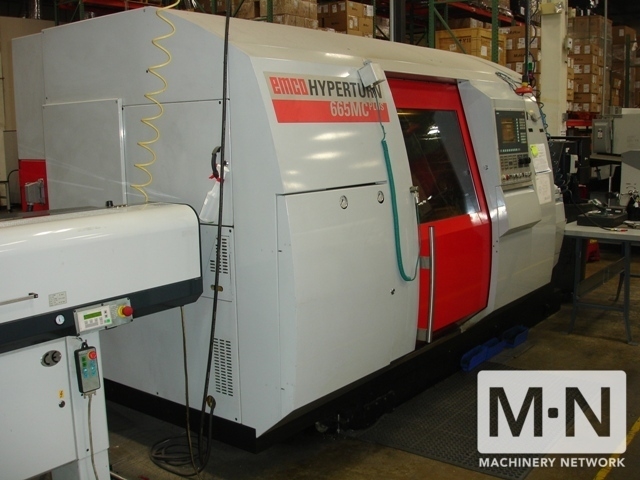

1) Used Emco Hyper Turn 665 MC CNC Turning Center
*Low Hours Excellent Condition New2005
SPECIFICATIONS:
Swing Over Bed 23.62
Swing Over Cross Slide 19.68″
Distance Between Spindles 39.37″
Max Turn Diameter 16.92″
Max Turn Length 29.29″
Travel
X/X2 Axis 11″
X/X2 Axis 15.74″/8.07″
Z/Z2 Axis 29.5″/8.07″
Z/Z2 Axis 35.4″/28.52″
Z3 Axis 29.5″/29.52″
Y Axis 3.94″ (+/-1.97″)
C Axis .001
Bar Capacity Spindle 1 2.5″
Spindle Bore 1 2.87″
Spindle Bore 2 2.08″
Spindle Speed 1 5000 rpm
Spindle Speed 2 7000 rpm
Spindle Motor 1 38 HP
Spindle Motor 2 29 HP

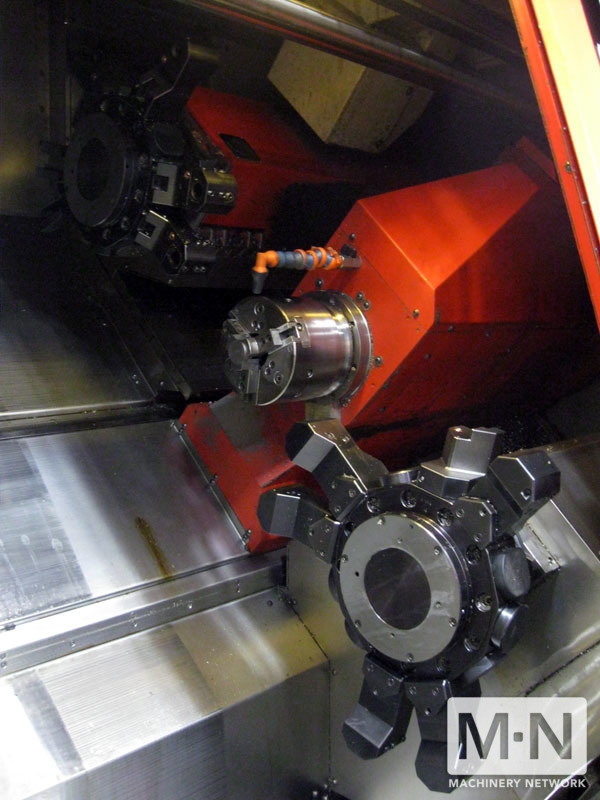

# of Turrets 2
Tools on Each Turret 12 (all live)
EQUIPPED WITH:

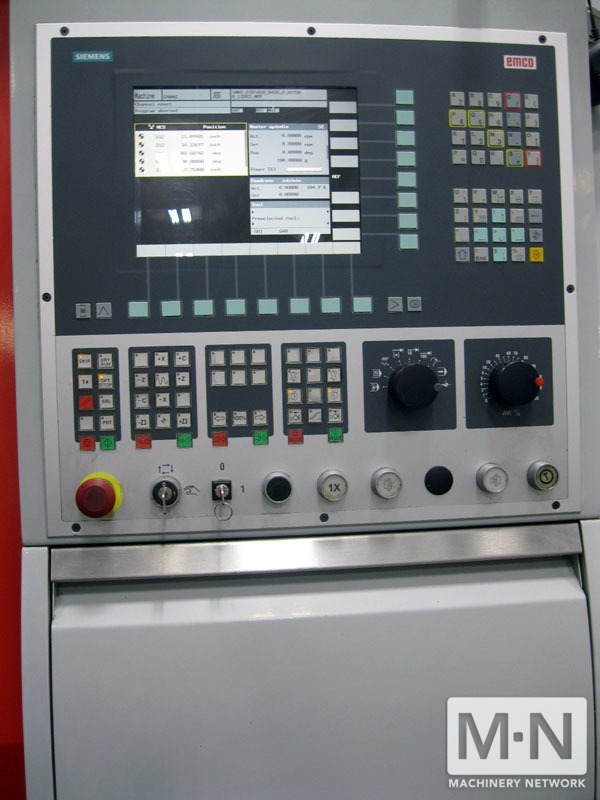

Siemens Sinumerik 840 D Control
Spindle Through Coolant
Part Ejector
Full C axis
2 Turret – 24 Live tools
Chip Conveyor
2 High Pressure Pumps – 200 psi

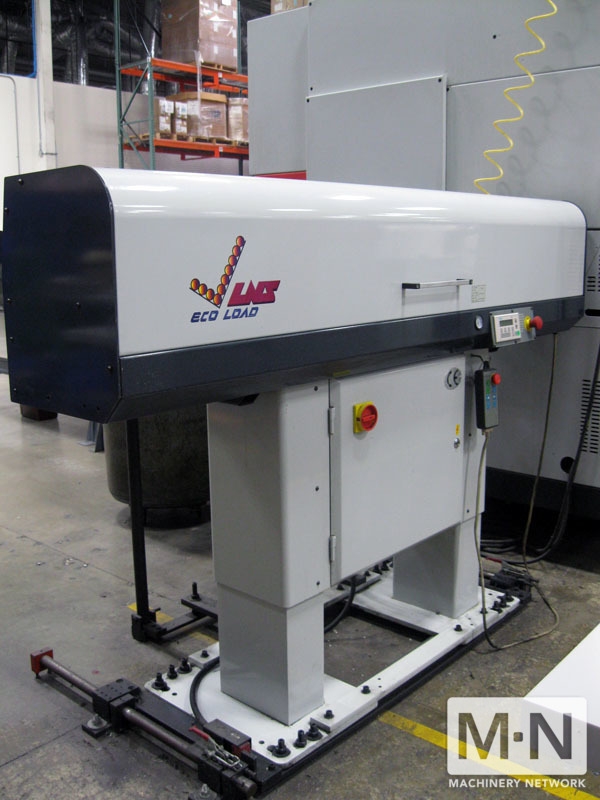

LNS Bar Loader

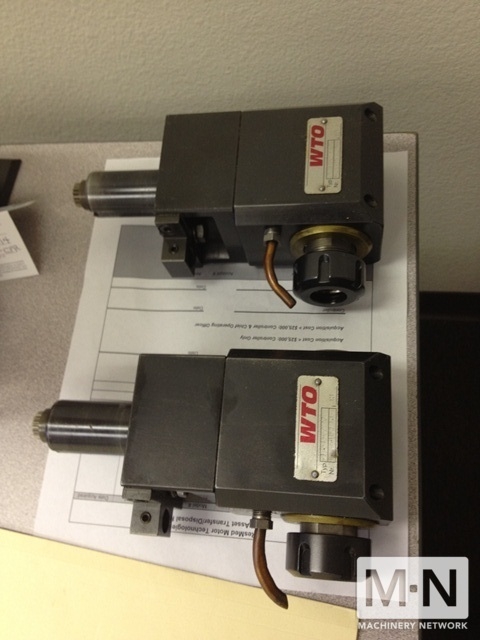

2 Live Milling Holders
All Available Manuals of Tooling
Transformer
*Low Hours Excellent Condition New2005
SPECIFICATIONS:
Swing Over Bed 23.62
Swing Over Cross Slide 19.68″
Distance Between Spindles 39.37″
Max Turn Diameter 16.92″
Max Turn Length 29.29″
Travel
X/X2 Axis 11″
X/X2 Axis 15.74″/8.07″
Z/Z2 Axis 29.5″/8.07″
Z/Z2 Axis 35.4″/28.52″
Z3 Axis 29.5″/29.52″
Y Axis 3.94″ (+/-1.97″)
C Axis .001
Bar Capacity Spindle 1 2.5″
Spindle Bore 1 2.87″
Spindle Bore 2 2.08″
Spindle Speed 1 5000 rpm
Spindle Speed 2 7000 rpm
Spindle Motor 1 38 HP
Spindle Motor 2 29 HP
# of Turrets 2
Tools on Each Turret 12 (all live)
EQUIPPED WITH:
Siemens Sinumerik 840 D Control
Spindle Through Coolant
Part Ejector
Full C axis
2 Turret – 24 Live tools
Chip Conveyor
2 High Pressure Pumps – 200 psi
LNS Bar Loader
2 Live Milling Holders
All Available Manuals of Tooling
Transformer
