MORI SEIKI SH-403

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MORI SEIKI

Model:

SH-403

Condition:

Not Specified

Year:

2001

Stock #:

30493

Status:

Sold

Description:

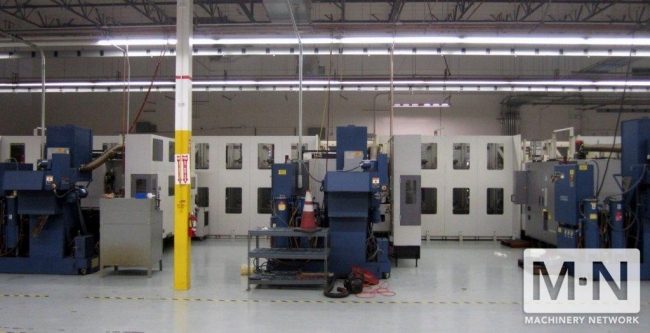

CELL SYSTEM- 4 MACHINES & 48 PALLETS

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

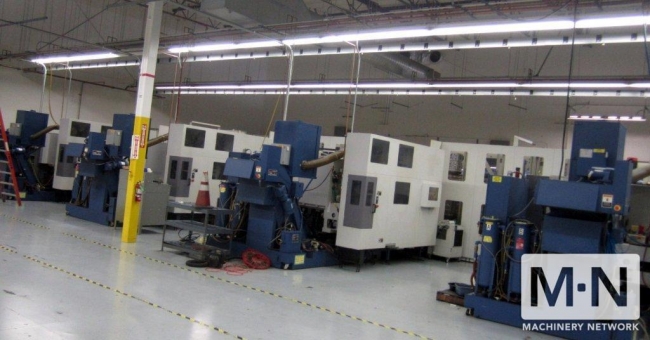

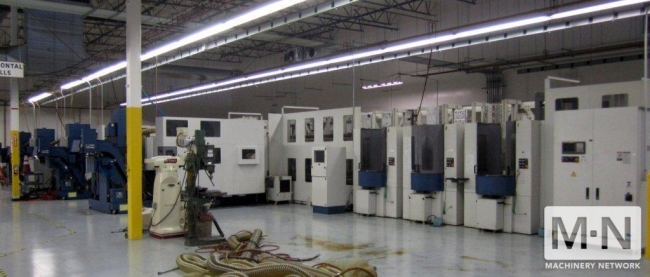

(1) USED MORI SEIKI SH-403 CNC HORIZONTAL MACHINING CENTER CELL
SYSTEM- 4 MACHINES & 48 PALLETS
NEW 2001

SPECIFICATIONS:

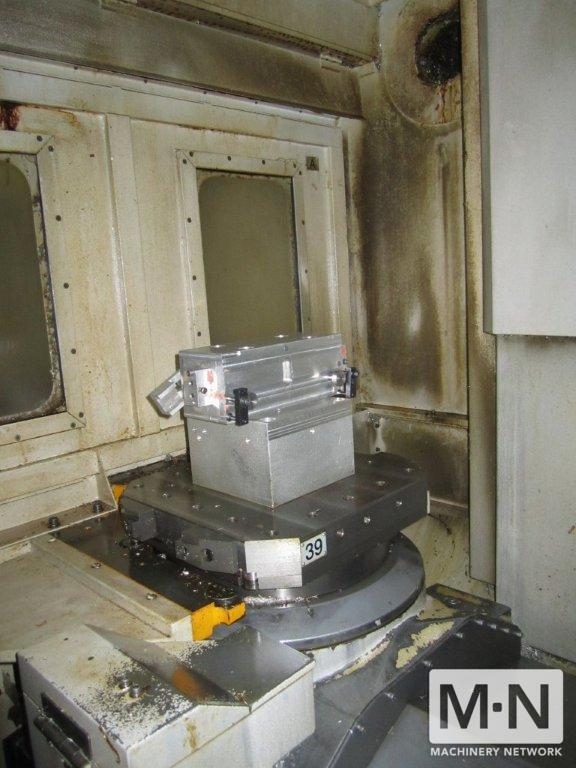

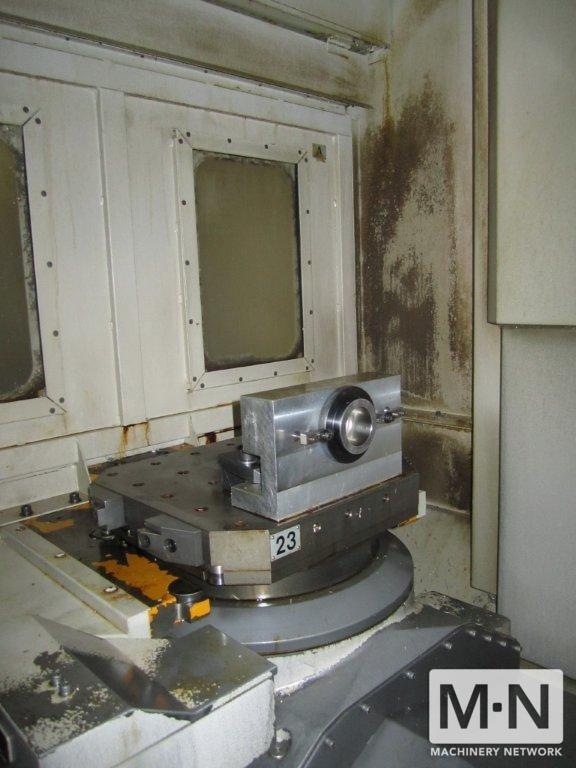

PALLET SIZE: 15.7” x 15.5”
PALLET INDEX: 0.001 Degrees
NUMBER OF PALLETS: 48 FMS
X, Y, Z AXIS TRAVELS: 22” x 20” x 20”

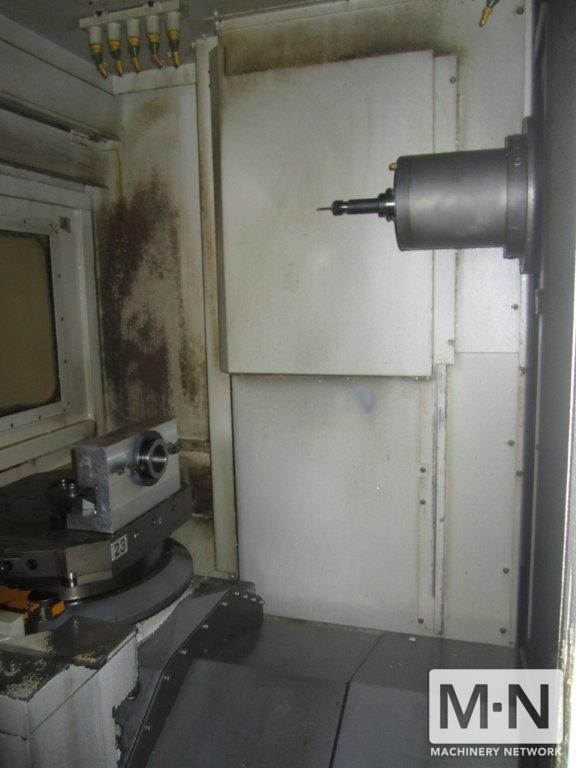

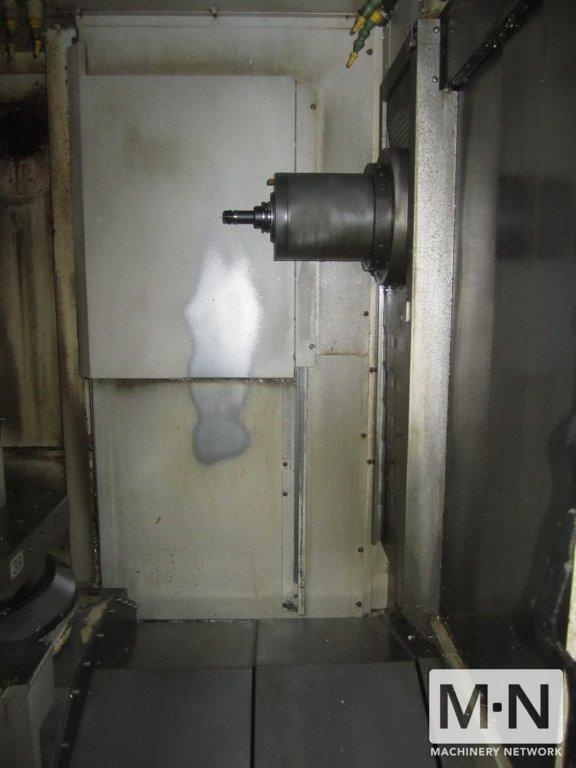

SPINDLE SPEED: 12,000 RPM
SPINDLE TAPER: CAT- 40
MAIN MOTOR: 30 HP
RAPID TRAVERSE RATE: 1,260 IPM
SPINDLE NOSE TO TABLE CENTER: 3.9” – 24”
MAXIMUM FEED RATE: 0.01 - 1654 IPM
MAXIMUM TABLE LOAD: 1100 LBS
WORK PIECE WORK HEIGHT: 25.5
TOOLS: 120
TOOL CHANGE TIME: 1.3 SECONDS Tool to Tool
MAXIMUM TOOL LENGTH: 14.2”
MAXIMUM TOOL WEIGHT: 17.6 lbs
DIMENSIONS: 112” x 160” x 99”
WEIGHT: 22,000 lbs.

EQUIPPED WITH:

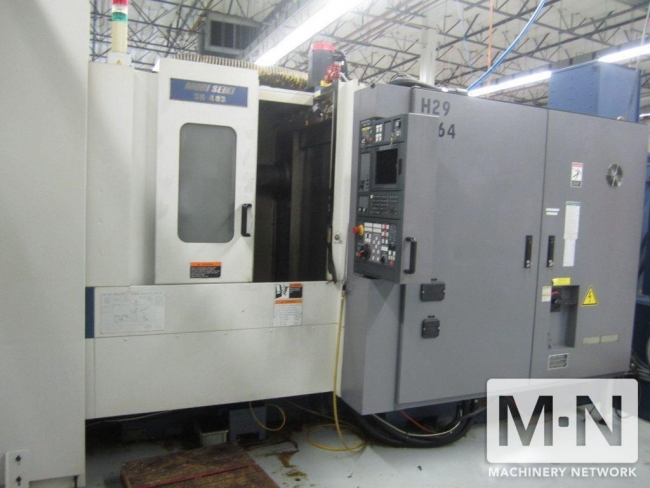

MORI MSG 501 w/ 9” LCD SCREENS (FANUC 18iM)

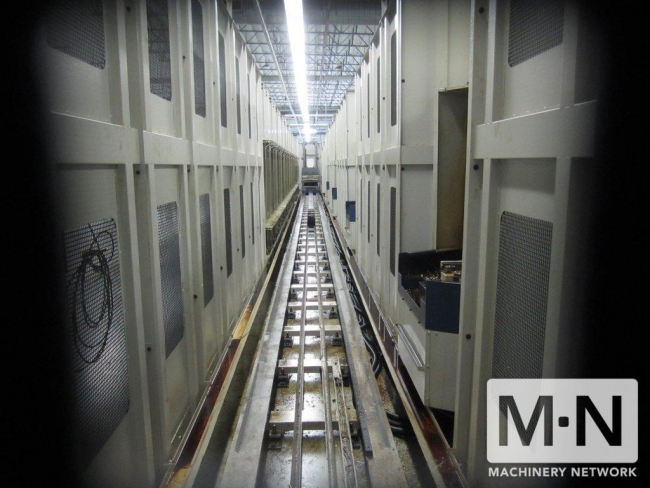

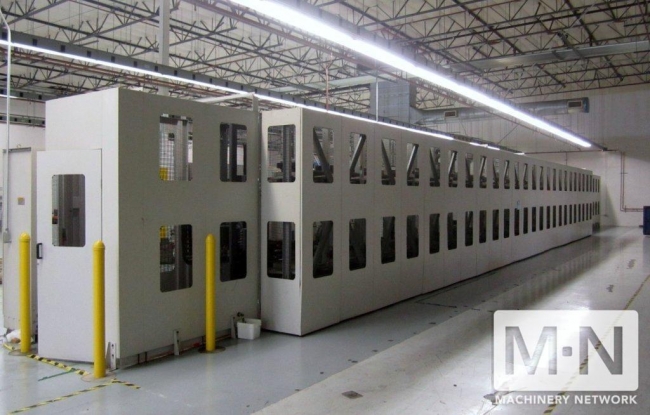

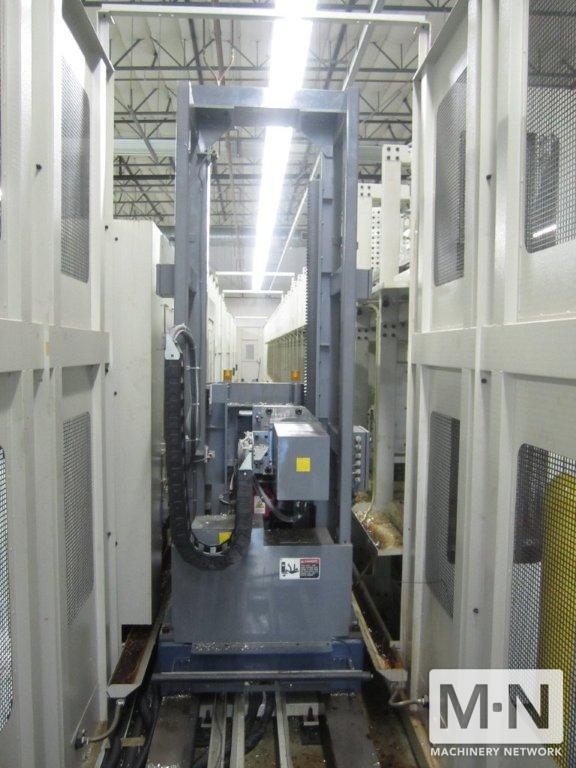

48 PALLET FMS

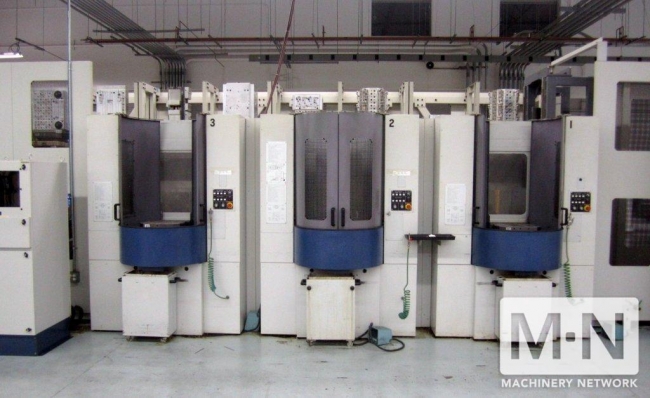

3 LOAD / UNLOAD STATIONS
REMOTE MANUAL PULSE GENERATOR
120 STATION TOOL MAGAZINES
RIGID TAPPING
CHIP CONVEYORS
SPINDLE CHILLERS

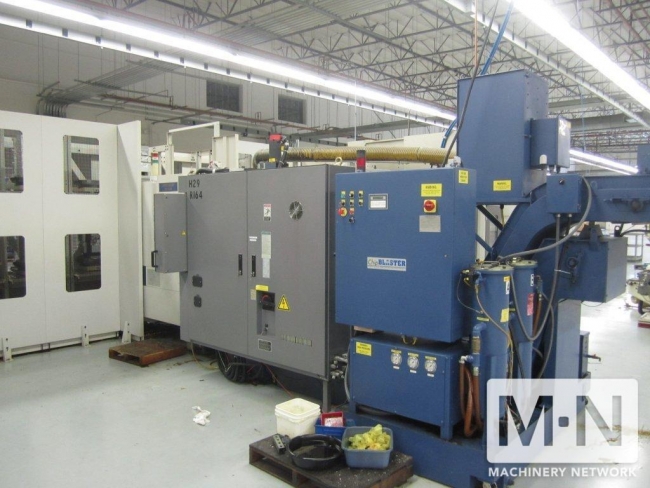

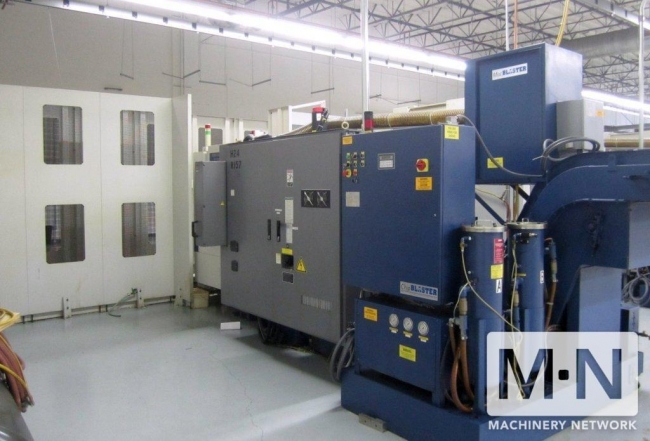

CHIP BLASTER CTS SYTEM w/ 1000 PSI ON ALL 4 MACHINES
