MORI SEIKI NV5000A/40
Type:
Vertical Machining Centers
Manufacturer:
MORI SEIKI
Model:
NV5000A/40
Condition:
Not Specified
Year:
2003
Stock #:
29962
Status:
Sold
Description:
FANUC 18-iMB
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

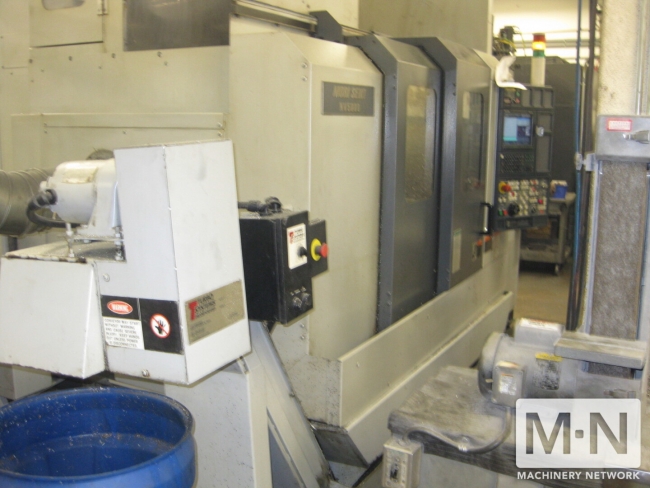

(1) USED MORI SEIKI NV5000A/40 APC VERTICAL MACHINING CENTER
NEW 2003
SPECIFICATIONS:
Pallet...................... (2) Pallets
X-Axis Travel (Inches)...... 31.5
Y-Axis Travel (Inches)...... 20.1
Z-Axis Travel (Inches)...... 20.1
Spindle Speed (RPM)......... 12,000
Taper....................... 40
ATC Positions............... 30
Weight(Lbs)................. 15,000
Equipped with:

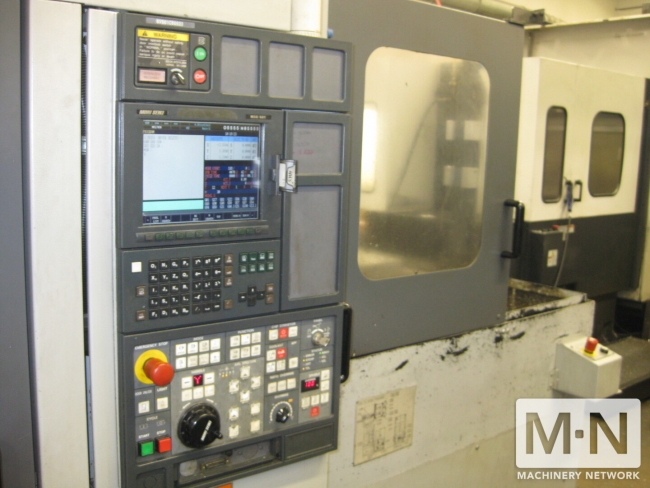

Fanuc 18-iMB (MSG-501MB W/Mapps)
Coolant System, Built-In Work Light
High Speed Vertical Machining Center (12,000 RPM)
25/30 HP Main Spindle Motor
High Speed Synchronized Tapping
30 Tool ATC Magazine
Signal Tower
Conversational and G-Code Programming
Tool Tip Air Blow System
Helical Interpolation
Level 1 High Speed Machining (Look Ahead Control)
Color Display
PCMCIA/RS-232 Interfaces
Load Monitor, Tool Path Graphics, Maintenance Scheduling

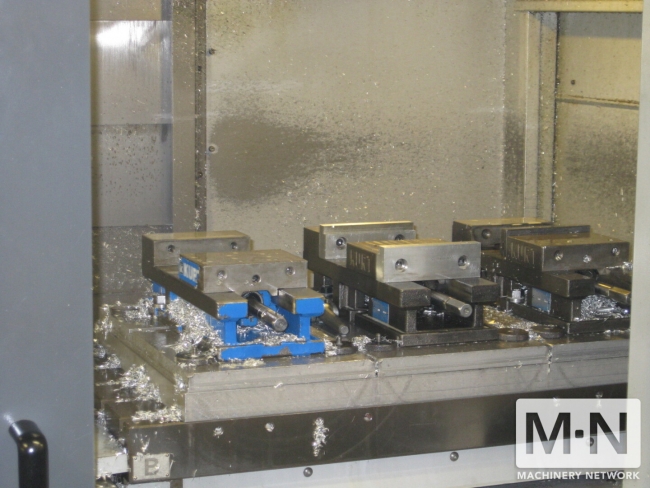

2 Station APC (Including 2 T-Slot Pallets)
Chip Conveyer (Hinge Type, Left Front Discharge)
Additional Work Coordinate System 48 Set Total
Part Program Storage 640 Meters
CoolJet Model 2311 1,000 PSI High Pressure Pump
NEW 2003
SPECIFICATIONS:
Pallet...................... (2) Pallets
X-Axis Travel (Inches)...... 31.5
Y-Axis Travel (Inches)...... 20.1
Z-Axis Travel (Inches)...... 20.1
Spindle Speed (RPM)......... 12,000
Taper....................... 40
ATC Positions............... 30
Weight(Lbs)................. 15,000
Equipped with:
Fanuc 18-iMB (MSG-501MB W/Mapps)
Coolant System, Built-In Work Light
High Speed Vertical Machining Center (12,000 RPM)
25/30 HP Main Spindle Motor
High Speed Synchronized Tapping
30 Tool ATC Magazine
Signal Tower
Conversational and G-Code Programming
Tool Tip Air Blow System
Helical Interpolation
Level 1 High Speed Machining (Look Ahead Control)
Color Display
PCMCIA/RS-232 Interfaces
Load Monitor, Tool Path Graphics, Maintenance Scheduling
2 Station APC (Including 2 T-Slot Pallets)
Chip Conveyer (Hinge Type, Left Front Discharge)
Additional Work Coordinate System 48 Set Total
Part Program Storage 640 Meters
CoolJet Model 2311 1,000 PSI High Pressure Pump
