KITAMURA HX400I
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
KITAMURA
Model:
HX400I
Condition:
Not Specified
Year:
2001
Stock #:
29793
Status:
Sold
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

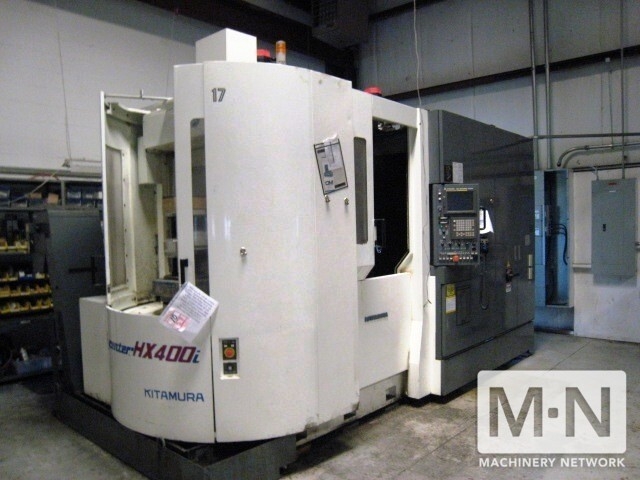

(1) USED KITAMURA MYCENTER HX400i 4-AXIS CNC HORIZONTAL MACHINING CENTER NEW 2001
SPECIFICATIONS:
TABLE SIZE: 15.7"x15.7"
TABLE INDEXING (4TH-AXIS): 0.001"
MAX WORK SIZE: 24"x37.8"
TABLE LOAD CAPACITY: 880 LBS.
TRAVELS:
X-AXIS: 26"
Y-AXIS: 24"
Z-AXIS: 22"
DIST TABLE SURFACE TO SPINDLE NOSE: 5.9"-28"
DIST TABLE SURFACE TO SPINDLE CENTER: 1.97"-26"
SPINDLE TAPER: BT 40
SPINDLE SPEED: 13,000 RPM
FEED RATE (X,Y,&Z) 1968.5"/MIN
TOOL TO TOOL TIME: 1 SEC.
CHIP TO CHIP TIME: 3.2 SEC.
MAX TOOL WEIGHT: 22 LBS.
RAPID FEED RATE: 1968.5"/MIN
SPINDLE MOTOR: 25/20 HP
OVERALL DIMENSIONS: 186"x102"x122"
WEIGHT: 28,600 LBS.
EQUIPPED WITH:

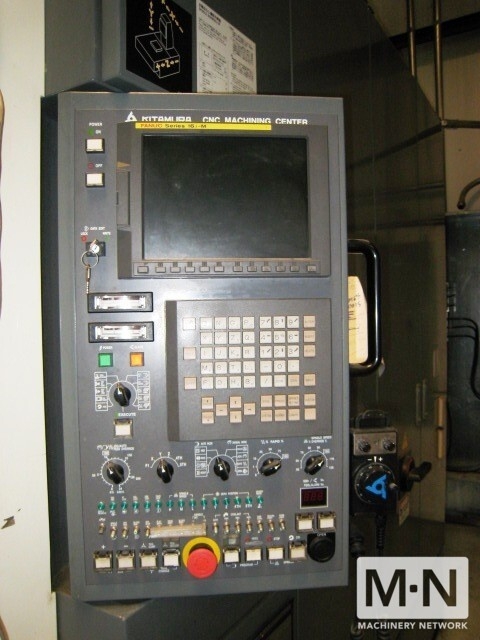

FANUC 16i CNC CONTROL
FULL 4TH AXIS
50-POSITION AUTOMATIC TOOL CHANGER/RANDOM TOOL SELECTION
COOLANT THROUGH SPINDLE
SOLID BOX WAYS

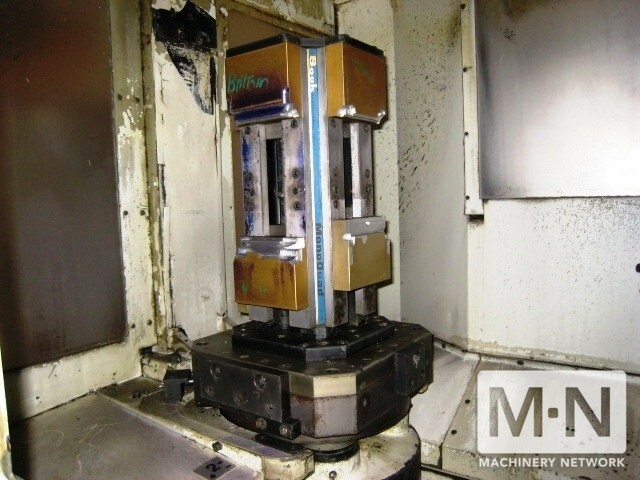

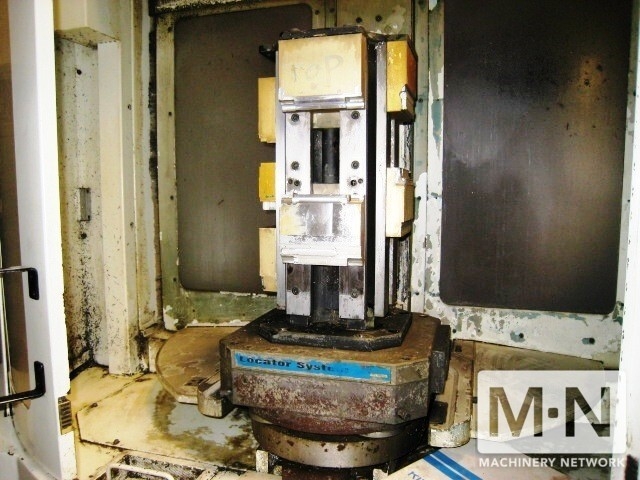

(2) TOMBSTONES
SIMULTANEOUS X,Y,&Z STROKES
DUAL CONTACT SPINDLE SYSTEM TO PROVIDE DUAL CONTACT OF THE
SPINDLE TAPER AND FLANGE FACE
SPECIAL RUBBER/COPPER WAY WIPERS
BALL SCREW COOLING SYSTEM
MD CHIP CONVEYOR
OPERATION MANUAL
2,485 CUTTING HOURS
SPECIFICATIONS:
TABLE SIZE: 15.7"x15.7"
TABLE INDEXING (4TH-AXIS): 0.001"
MAX WORK SIZE: 24"x37.8"
TABLE LOAD CAPACITY: 880 LBS.
TRAVELS:
X-AXIS: 26"
Y-AXIS: 24"
Z-AXIS: 22"
DIST TABLE SURFACE TO SPINDLE NOSE: 5.9"-28"
DIST TABLE SURFACE TO SPINDLE CENTER: 1.97"-26"
SPINDLE TAPER: BT 40
SPINDLE SPEED: 13,000 RPM
FEED RATE (X,Y,&Z) 1968.5"/MIN
TOOL TO TOOL TIME: 1 SEC.
CHIP TO CHIP TIME: 3.2 SEC.
MAX TOOL WEIGHT: 22 LBS.
RAPID FEED RATE: 1968.5"/MIN
SPINDLE MOTOR: 25/20 HP
OVERALL DIMENSIONS: 186"x102"x122"
WEIGHT: 28,600 LBS.
EQUIPPED WITH:
FANUC 16i CNC CONTROL
FULL 4TH AXIS
50-POSITION AUTOMATIC TOOL CHANGER/RANDOM TOOL SELECTION
COOLANT THROUGH SPINDLE
SOLID BOX WAYS
(2) TOMBSTONES
SIMULTANEOUS X,Y,&Z STROKES
DUAL CONTACT SPINDLE SYSTEM TO PROVIDE DUAL CONTACT OF THE
SPINDLE TAPER AND FLANGE FACE
SPECIAL RUBBER/COPPER WAY WIPERS
BALL SCREW COOLING SYSTEM
MD CHIP CONVEYOR
OPERATION MANUAL
2,485 CUTTING HOURS
