KITAMURA HX-400
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
KITAMURA
Model:
HX-400
Condition:
Not Specified
Year:
2000
Stock #:
25077
Status:
Sold
Description:
FANUC 16iM, 15.75" PALLETS, FULL FOURTH, 30 HP, 13000 RPM, COOLANT THRU
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

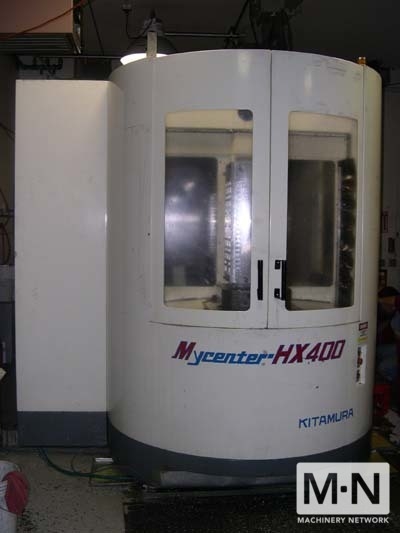

(1) USED KITAMURA MYCENTER HX-400 4-AXIS CNC HORIZONTAL
MACHINING CENTER NEW 2000
SPECIFICATIONS:
TABLE SIZE: 15.8" X 15.8"

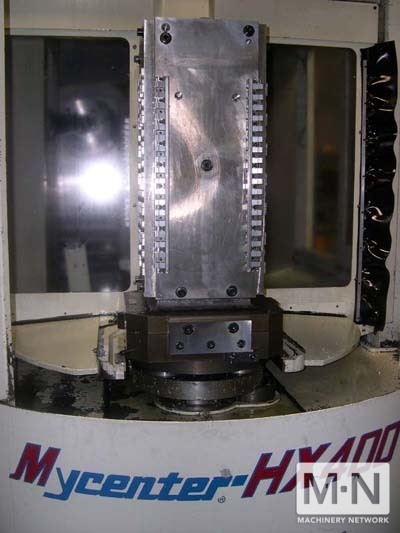

NUMBER OF PALLETS: 2
TRAVELS X-AXIS 26"
Y-AXIS 24"
Z-AXIS 22"
PALLET-INDEXING: .001 DEGREE
SPINDLE TAPER: #40
ATC: 50 ATC
MAX. WORKPIECE WEIGHT: 880 LBS
SPINDLE SPEED: 13000 RPM GEARED HEAD
SPINDLE HP: 25/20 HP AC
SPINDLE CENTER TO TABLE: 1.97"-26"
SPINDLE NOSE TO TABLE: 5.9"-27.9"
RAPID TRAVERSE RATE: 1969 IPM
TOOL CHANGE TIME: 1.6 SECONDS(T-T/C-C)
MACHINE WEIGHT: 28600 LBS
EQUIPPED WITH:

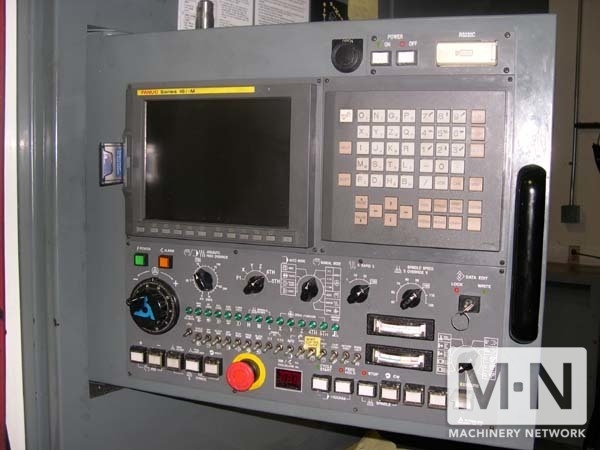

FANUC 16IM 4-AXIS CNC CONTROL
COOLANT THRU SPINDLE (220 PSI)

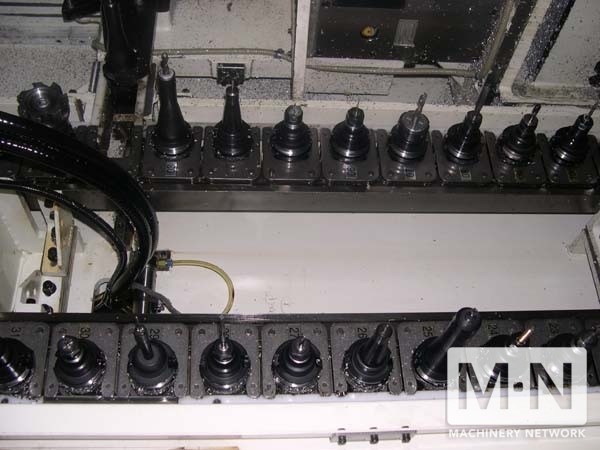

APPROX 15 CAT 40 TOOLHOLDERS
BOX WAY CONSTRUCTION
REAR CHIP CONVEYOR

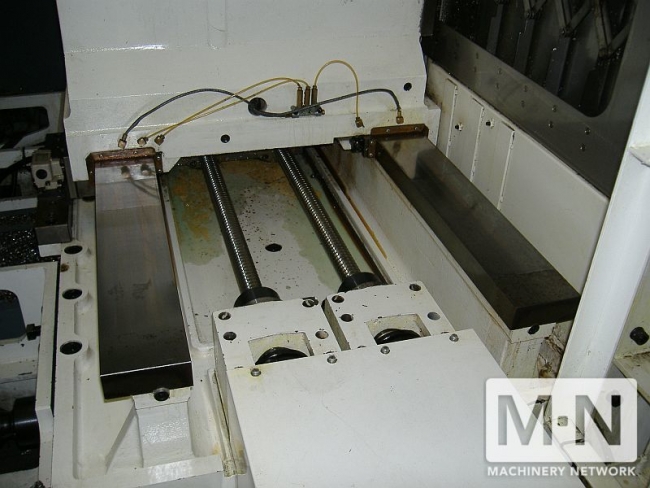

TWIN BALLSCREW DRIVE ON X,Y,Z AXES
AUTO TOOL LENGTH MANAGEMENT
REMOTE BUFFER
5630 CUTTING HOURS
MACHINING CENTER NEW 2000
SPECIFICATIONS:
TABLE SIZE: 15.8" X 15.8"
NUMBER OF PALLETS: 2
TRAVELS X-AXIS 26"
Y-AXIS 24"
Z-AXIS 22"
PALLET-INDEXING: .001 DEGREE
SPINDLE TAPER: #40
ATC: 50 ATC
MAX. WORKPIECE WEIGHT: 880 LBS
SPINDLE SPEED: 13000 RPM GEARED HEAD
SPINDLE HP: 25/20 HP AC
SPINDLE CENTER TO TABLE: 1.97"-26"
SPINDLE NOSE TO TABLE: 5.9"-27.9"
RAPID TRAVERSE RATE: 1969 IPM
TOOL CHANGE TIME: 1.6 SECONDS(T-T/C-C)
MACHINE WEIGHT: 28600 LBS
EQUIPPED WITH:
FANUC 16IM 4-AXIS CNC CONTROL
COOLANT THRU SPINDLE (220 PSI)
APPROX 15 CAT 40 TOOLHOLDERS
BOX WAY CONSTRUCTION
REAR CHIP CONVEYOR
TWIN BALLSCREW DRIVE ON X,Y,Z AXES
AUTO TOOL LENGTH MANAGEMENT
REMOTE BUFFER
5630 CUTTING HOURS
