KITAMURA HX-400
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
KITAMURA
Model:
HX-400
Condition:
Not Specified
Year:
2000
Stock #:
25616
Status:
Sold
Description:
FANUC 16iM, 15.8" x 15.8" PLLTS, 4- AXIS, 13K RPMS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

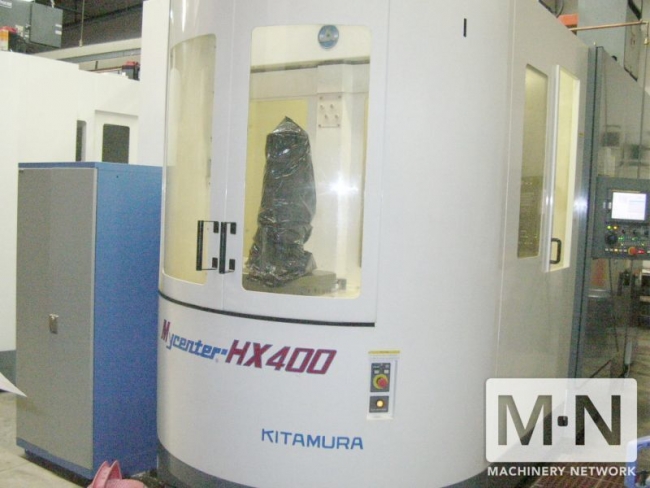

(1) USED KITAMURA MYCENTER HX-400 4-AXIS CNC HORIZONTAL
MACHINING CENTER NEW 2000
SPECIFICATIONS:
TABLE SIZE: 15.8" X 15.8"
NUMBER OF PALLETS: 2
TRAVELS X-AXIS 26"
Y-AXIS 24"
Z-AXIS 22"
PALLET-INDEXING: .001 DEGREE
SPINDLE TAPER: #40

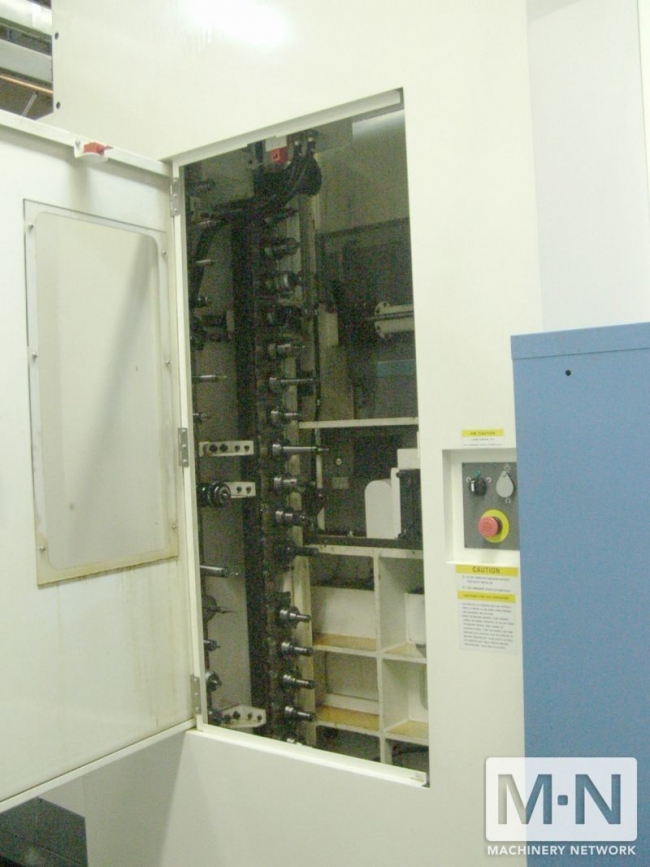

ATC: 50 ATC
MAX. WORKPIECE WEIGHT: 880 LBS
SPINDLE SPEED: 13000 RPM GEARED HEAD
SPINDLE HP: 35 HP
RAPID TRAVERSE RATES: 2,000 IPM
SPINDLE CENTER TO TABLE: 1.97"-26"
SPINDLE NOSE TO TABLE: 5.9"-27.9"
EQUIPPED WITH:

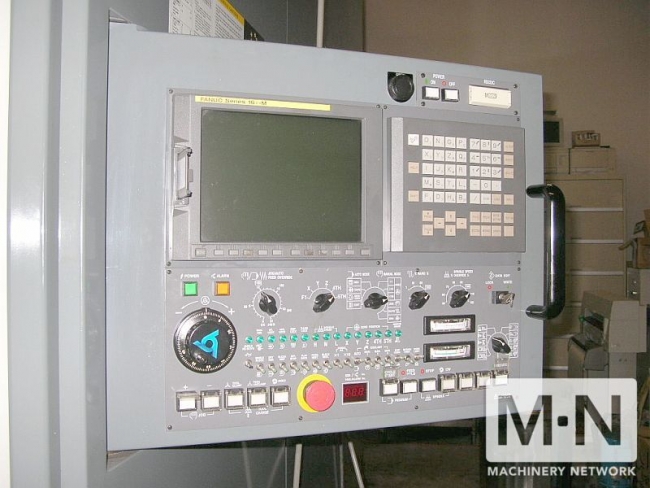

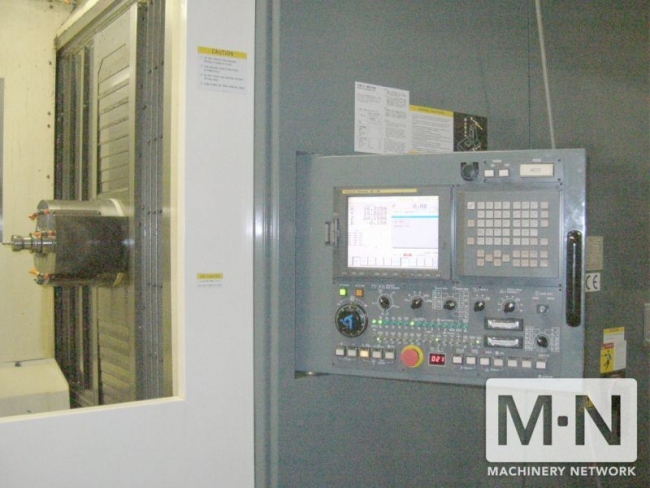

FANUC 16iM 4-AXIS CNC CONTROL, 3,400 CUTTING HOURS, COOLANT THRU SPINDLE (250 PSI), BOX WAY CONSTRUCTION, (2) TOOL CHANGER ARMS FOR CAT OR BT, SET UP FOR RENISHAW MP-700 IR PROBE, TWIN LEAD SCREWS ALL AXIS, CHILLED SPINDLE, COOLED LEAD SCREWS
MACHINING CENTER NEW 2000
SPECIFICATIONS:
TABLE SIZE: 15.8" X 15.8"
NUMBER OF PALLETS: 2
TRAVELS X-AXIS 26"
Y-AXIS 24"
Z-AXIS 22"
PALLET-INDEXING: .001 DEGREE
SPINDLE TAPER: #40
ATC: 50 ATC
MAX. WORKPIECE WEIGHT: 880 LBS
SPINDLE SPEED: 13000 RPM GEARED HEAD
SPINDLE HP: 35 HP
RAPID TRAVERSE RATES: 2,000 IPM
SPINDLE CENTER TO TABLE: 1.97"-26"
SPINDLE NOSE TO TABLE: 5.9"-27.9"
EQUIPPED WITH:
FANUC 16iM 4-AXIS CNC CONTROL, 3,400 CUTTING HOURS, COOLANT THRU SPINDLE (250 PSI), BOX WAY CONSTRUCTION, (2) TOOL CHANGER ARMS FOR CAT OR BT, SET UP FOR RENISHAW MP-700 IR PROBE, TWIN LEAD SCREWS ALL AXIS, CHILLED SPINDLE, COOLED LEAD SCREWS
