KITAMURA HX500

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

KITAMURA

Model:

HX500

Condition:

Not Specified

Year:

2000

Stock #:

28255

Status:

Sold

Description:

FANUC 16I CONTROL, 34"x28"x26", 12K RPM, CAT 50, FULL 4TH

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

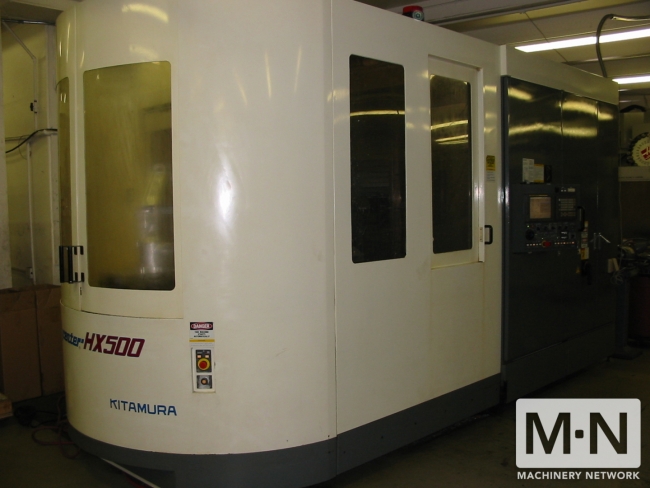

(1) USED KITAMURA HX500 CNC 4-AXIS HORIZONTAL
MACHINING CENTER NEW 2000

SPECIFICATIONS:
PALLET SIZE: 19.7" X 19.7"
NUMBER OF PALLETS: 2
MAX. WORK PIECE (D x H): 31.5" X 31.5"
MAX. TABLE LOAD: 1760 LBS.
SPINDLE NOSE TO TABLE CENTER: 5.9"-31.9"
TABLE SURFACE SPINDLE CENTER: 2"-30"
X- AXIS: 34.3"
Y- AXIS: 28"
Z- AXIS: 26"
B- AXIS: .001 N/C ROTARY
SPINDLE SPEEDS: 12,000 RPM
DRIVE METHOD: GEAR DRIVE 2- STEP
SPINDLE HORSEPOWER: 35 HP AC
SPINDLE TAPER: CAT #50
RAPID TRAVERSE RATES: X,Z,Z 1969 IPM
CUTTING FEED RATE: 1969 IPM
MAX. WEIGHT: 44 LBS.
MAX. TOOL LENGTH: 17.7"
MAX. TOOL DIAMETER: 4.7"/7.9"

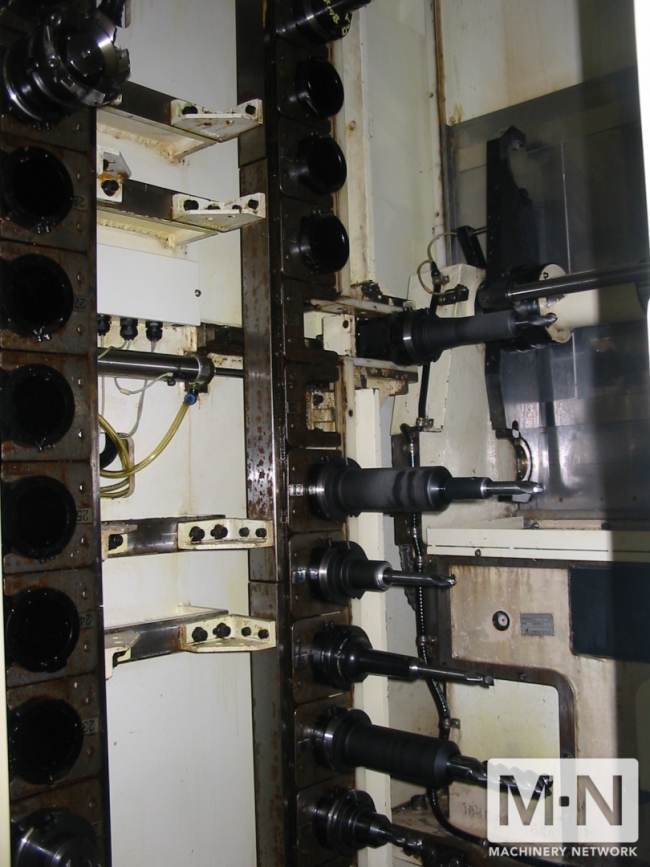

AUTOMATIC TOOL CHANGER CAPACITY: 50 ATC
TOOL CHANGE TIME: 2.0"/5.5"
MACHINE WEIGHT: 44,400 LBS.

EQUIPPED WITH:

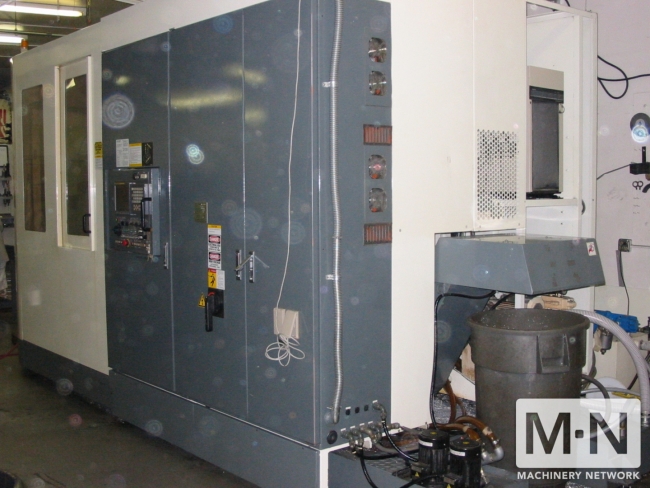

FANUC 16iM CNC CONTROL
EXTENDED MEMORY 1280 METERS
RENISHAW PROBE
FULL CONTOURING B AXIS 360,000 DEGREES
COOLANT THRU SPINDLE
COORDINATE ROTATION
EXTENDED PART PROGRAMMING
AUTO TOOL LIFE MANAGEMENT TOOL BREAKAGE DETECTION
HELICAL INTERPOLATION

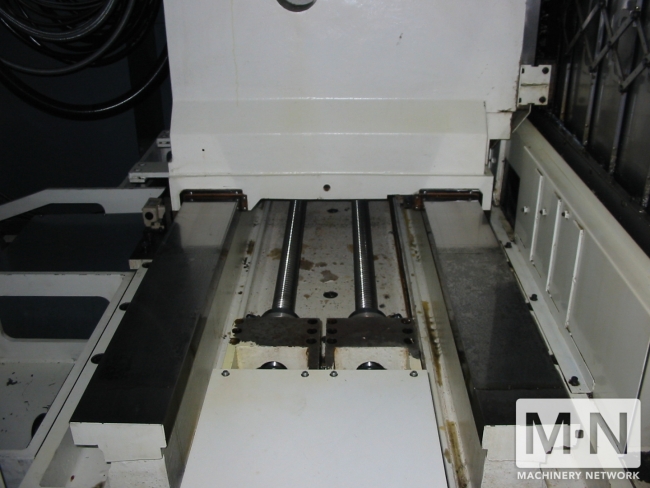

TWIN DRIVES AND BALL SCREWS
99 TOOL OFFSETS
50 WORK OFFSETS
SPINDLE CHILLER
FLOOD COOLANT
CHIP AUGERS AND CHIP CONVEYOR
SPINDLE LOAD METER
ALL AVAILABLE MANUALS

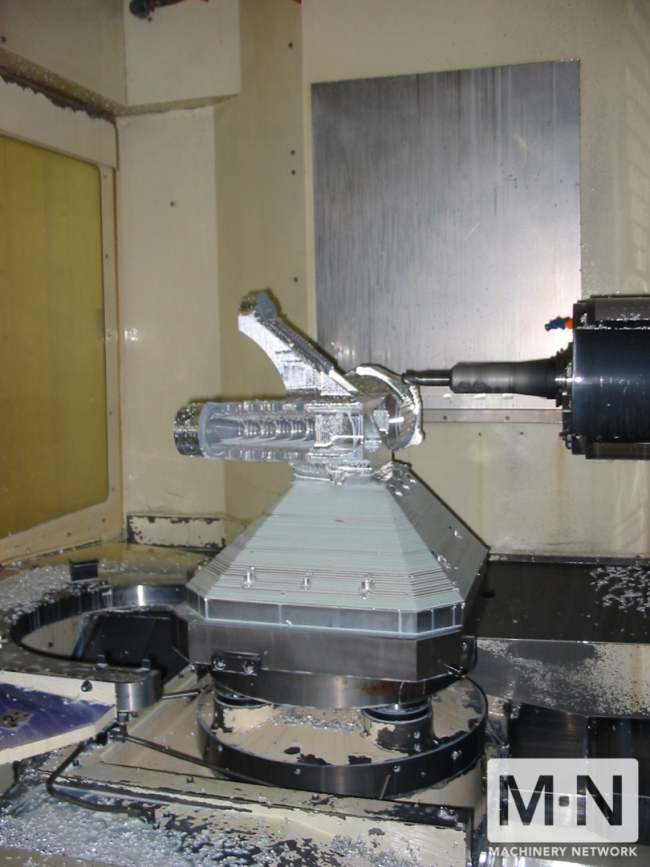

3 TOMB STONES
25 TOOL HOLDERS

VIDEO CAN BE VIEWED HERE:
http://www.vmshop.com/media/Hx500Collage.wmv
