Machinery Network > Used Inventory > MIYANO BNE-46S

MIYANO BNE-46S

Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MIYANO
Model:
BNE-46S
Condition:
Not Specified
Stock #:
29637
Status:
Sold
Description:
MULTI-AXIS LIVE SPINDLE LATHE, FANUC SERIES 18-T, 20" MAX SWING
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

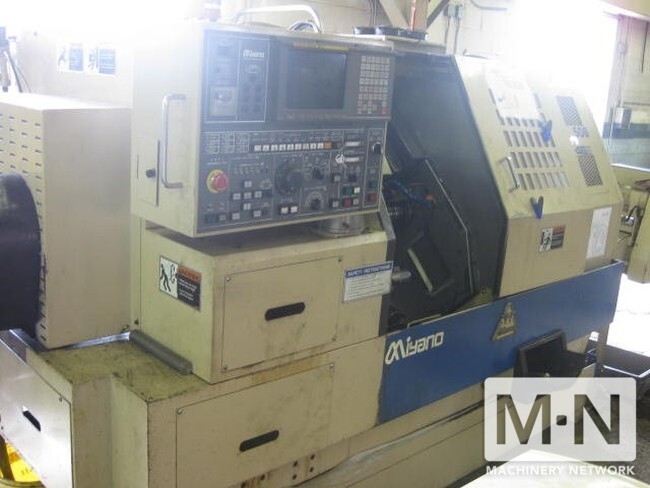

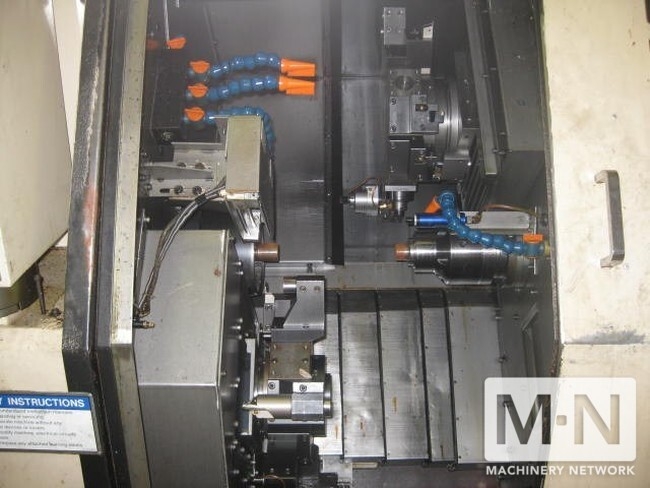

(1) USED MIYANO BNE-46S MULTI-AXIS LIVE SPINDLE CNC LATHE
S/N: BE46046

SPECIFICATIONS:
MAX. O.D.: 2"
MAX. LENGTH: 3"
MAX SWING: 20" UPPER/17" LOWER
SPINDLE NOSE: (MAIN & SUB) FLAT
SPINDLE SPEEDS (MAIN): 40 TO 4000 RPM
SPINDLE SPEEDS (SUB): 170 TO 5000 RPM
SPINDLE MOTOR: 15 HP MAIN
5 HP SUB
TURRET INDEX TIME: .05 SEC./POS
MAX SLIDE STROKE X-AXIS: 4.7" UPPER/3.35" LOWER
MAX SLIDE STROKE Y-AXIS: 11" UPPER/3.74" LOWER
RAPID RATES: 472 IPM UPPER/378 IPM LOWER
MACHINE WEIGHT: 12,300 LBS.
MACHINE DIMENSIONS: 102" X 67" X 70"
TOOLS: 12-POSITION TURRET TOOL CHANGER

EQUIPPED WITH:
FANUC SERIES 18-T PLC CONTROL
YOSHIDA CHIP CONVEYOR
