MIYANO BND-34S
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MIYANO
Model:
BND-34S
Condition:
Not Specified
Year:
1992
Stock #:
26600
Status:
Sold
Description:
FANUC OT, SUB SPINDLE, 1.3125 BAR CAPACITY, (2) 5" CHUCKS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

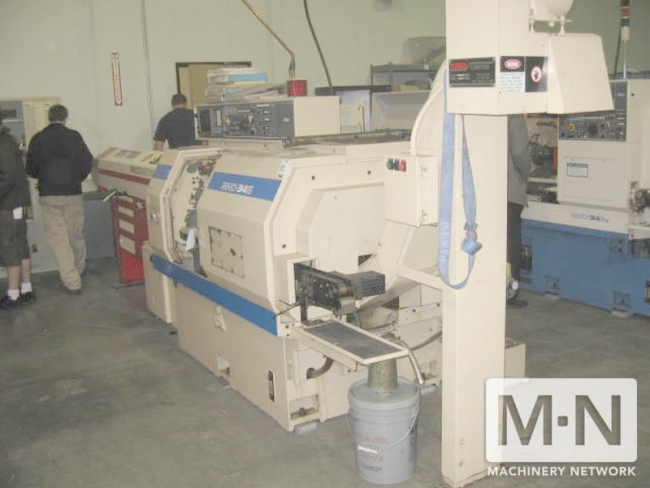

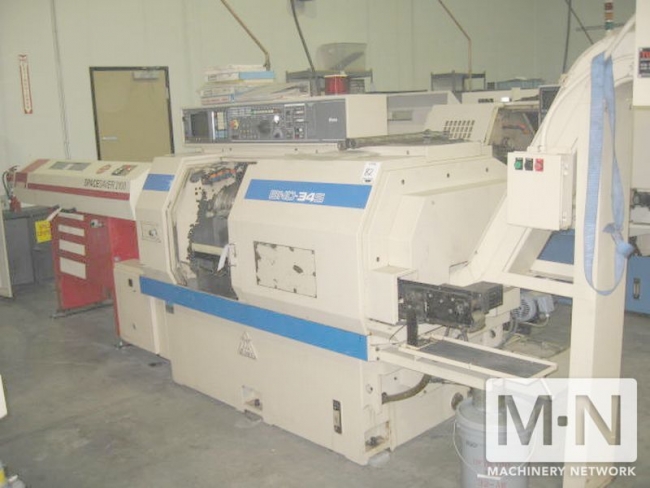

(1) USED MIYANO MODEL BND-34S CNC TURNING CENTER WITH BAR LOADER
NEW- 1992
SPECIFICATIONS:
MAX. TURNING LENGTH 4.92"
MAX. TURNING DIAMETER 4.75"
CHUCK SIZE 5"
TURRET CAPACITY 8 STATIONS
BAR CAPACITY 1.3125"
MAIN SPINDLE:
SPINDLE SPEEDS 170-5000 RPM
MAIN MOTOR (10) HP
SUB SPINDLE:
SPINDLE SPEEDS 170-4000 RPM
MAIN MOTOR (5) HP
RAPID TRAVERSE (X&Z) 472 IPM
LIVE TOOLING MOTOR (3) HP
POSITIONS FOR LIVE TOOLING 4
EQUIPPED WITH:

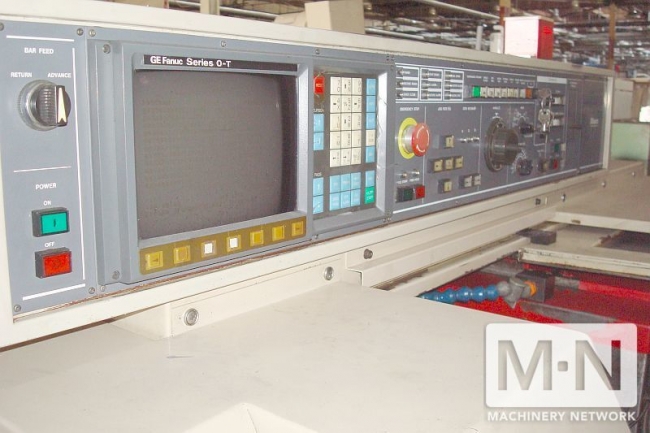

FANUC OT CNC CONTROL
SUB SPINDLE
PARTS CATCHER
CHIP CONVEYOR

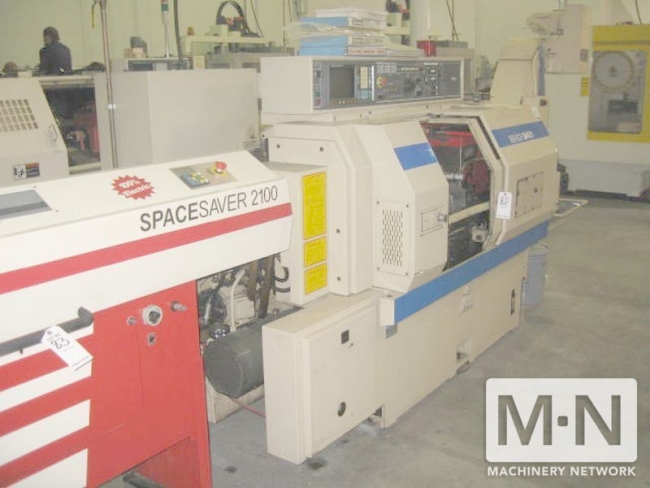

SMW SPACE-SAVER 2100 TYPE MUZ2000 AUTOMATIC BAR LOADER
NEW- 1992
SPECIFICATIONS:
MAX. TURNING LENGTH 4.92"
MAX. TURNING DIAMETER 4.75"
CHUCK SIZE 5"
TURRET CAPACITY 8 STATIONS
BAR CAPACITY 1.3125"
MAIN SPINDLE:
SPINDLE SPEEDS 170-5000 RPM
MAIN MOTOR (10) HP
SUB SPINDLE:
SPINDLE SPEEDS 170-4000 RPM
MAIN MOTOR (5) HP
RAPID TRAVERSE (X&Z) 472 IPM
LIVE TOOLING MOTOR (3) HP
POSITIONS FOR LIVE TOOLING 4
EQUIPPED WITH:
FANUC OT CNC CONTROL
SUB SPINDLE
PARTS CATCHER
CHIP CONVEYOR
SMW SPACE-SAVER 2100 TYPE MUZ2000 AUTOMATIC BAR LOADER
