SHARP 2160
Type:
LATHES, ENGINE
Manufacturer:
SHARP
Model:
2160
Condition:
Not Specified
Year:
1986
Stock #:
29515
Status:
Sold
Description:
21"x60", TAPER, 3" HTS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

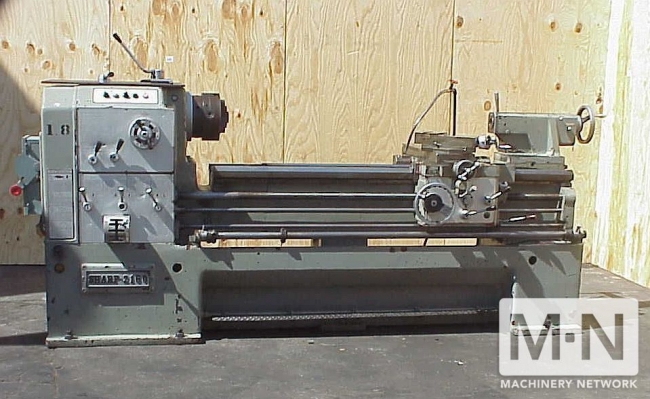

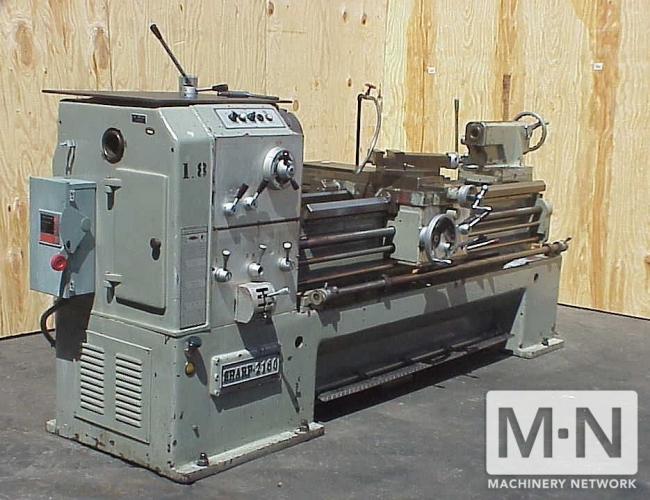

(1) USED 21"x60" SHARP MDL 2160 GAP BED ENGINE LATHE
S/N L 15094, NEW 1986
SPECIFICATIONS:
SWING OVER BED: 21"
SWING OVER CROSS SLIDE: 14"
SWING THRU GAP: 31" (7.9" GAP LENGTH)
CENTER DISTANCE: 60"
SPINDLE BORE: 3.1"
SPINDLE MOTOR: 7.5 HP
SPINDLE SPEEDS: 15-1500 RPM
THREADING - INCH: 4-56 TPI
- METRIC: .5-7 MM
APPROX DIMS: 114" X 55" X 52"H
APPROX WEIGHT: 5500 LBS
EQUIPPED WITH:

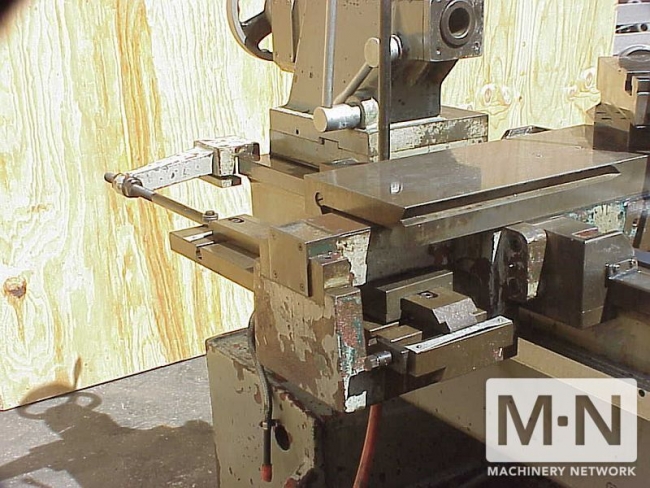

TAPER ATTACHMENT

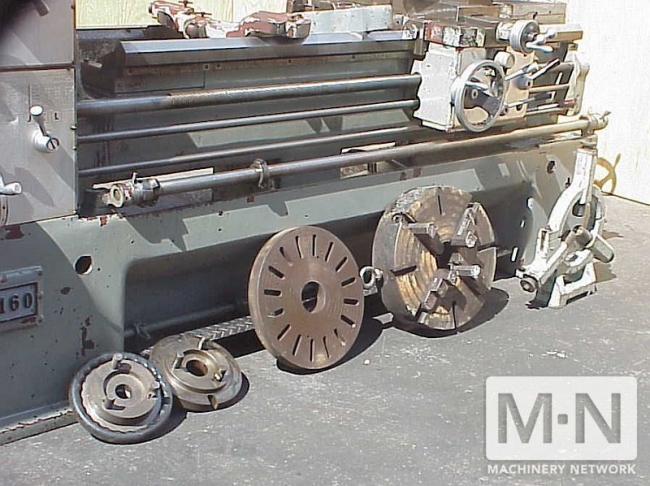

10" 3 JAW CHUCK
18" 4 JAW CHUCK
16" FACE PLATE
HARDINGE-SJOGREN SPEED COLLET CHUCK
STEADY REST AND FOLLOW REST
S/N L 15094, NEW 1986
SPECIFICATIONS:
SWING OVER BED: 21"
SWING OVER CROSS SLIDE: 14"
SWING THRU GAP: 31" (7.9" GAP LENGTH)
CENTER DISTANCE: 60"
SPINDLE BORE: 3.1"
SPINDLE MOTOR: 7.5 HP
SPINDLE SPEEDS: 15-1500 RPM
THREADING - INCH: 4-56 TPI
- METRIC: .5-7 MM
APPROX DIMS: 114" X 55" X 52"H
APPROX WEIGHT: 5500 LBS
EQUIPPED WITH:
TAPER ATTACHMENT
10" 3 JAW CHUCK
18" 4 JAW CHUCK
16" FACE PLATE
HARDINGE-SJOGREN SPEED COLLET CHUCK
STEADY REST AND FOLLOW REST
