KIA SKT 15 LMS
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
KIA
Model:
SKT 15 LMS
Condition:
Not Specified
Year:
2003
Stock #:
28519
Status:
Sold
Description:
Fanuc 0iT, Live Tooling, C Axis, Sub Spindle, ATS 3J
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

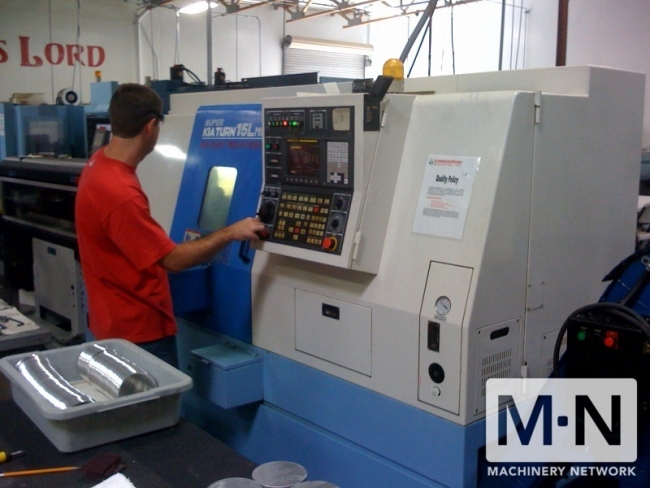

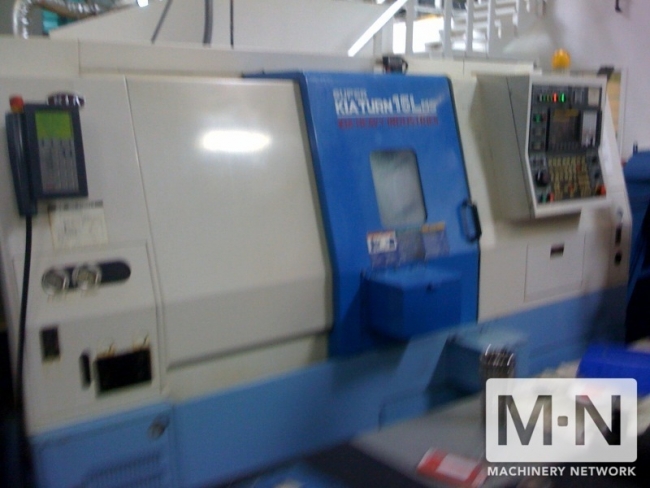

(1) USED KIA MODEL SUPER KIA TURN 15 LMS MILL/TURN CNC LATHE
NEW 2003
SPECIFICATIONS:
SWING OVER BED 21.6"
MAXIMUM MACHINING DIAMETER 10"
CHUCK SIZE - MAIN SPINDLE 6"
CHUCK SIZE - SUB-SPINDLE 5"
SWING OVER CROSS SLIDE 13.8"
MAXIMUM TURNING LENGTH 20.8"
BAR CAPACITY 1.5"
SPINDLE SPEED - MAIN SPINDLE 6,000 RPM
SPINDLE SPEED - SUB-SPINDLE 6,000 RPM
SPINDLE NOSE A2-6
TURRET - NUMBER OF TOOLS 12
INDEXING TIME (1 STEP / FULL) 0.3 SECONDS / 0.6 SECONDS
LIVE TOOLING ROTATING SPEED 4,000 RPM
X-AXIS TRAVEL 8.57"
Z-AXIS TRAVEL 21.6"
B-AXIS TRAVEL 29.5"
RAPID TRAVEL (X, Z AXES) 1,417 IPM
RAPID TRAVEL (B-AXIS) 1,181 IPM
MAIN SPINDLE MOTOR 15/10 HP
SUB SPINDLE MOTOR 5/3 HP
ELECTRIC POWER SUPPLY 30 KVA
APPROXIMATE FLOOR SPACE 116" L X 65" W X 74" H
APPROXIMATE WEIGHT 9,100 LBS.
ELECTRICS 220 VOLT/ 3 PHASE/ 60 CYCLE
EQUIPPED WITH:
FANUC OiT CNC CONTROL
TOOL TOUCH PROBE
ATC 16C COLLET CHUCKS ON MAIN & SUB SPINDLE
6" & 5" 3 JAW CHUCKS
PARTS CATCHER & CONVEYOR
TOOL HOLDERS
COOLANT SYSTEM
TURBO CHIP CONVEYOR
ALL AVAILABLE MANUALS
NEW 2003
SPECIFICATIONS:
SWING OVER BED 21.6"
MAXIMUM MACHINING DIAMETER 10"
CHUCK SIZE - MAIN SPINDLE 6"
CHUCK SIZE - SUB-SPINDLE 5"
SWING OVER CROSS SLIDE 13.8"
MAXIMUM TURNING LENGTH 20.8"
BAR CAPACITY 1.5"
SPINDLE SPEED - MAIN SPINDLE 6,000 RPM
SPINDLE SPEED - SUB-SPINDLE 6,000 RPM
SPINDLE NOSE A2-6
TURRET - NUMBER OF TOOLS 12
INDEXING TIME (1 STEP / FULL) 0.3 SECONDS / 0.6 SECONDS
LIVE TOOLING ROTATING SPEED 4,000 RPM
X-AXIS TRAVEL 8.57"
Z-AXIS TRAVEL 21.6"
B-AXIS TRAVEL 29.5"
RAPID TRAVEL (X, Z AXES) 1,417 IPM
RAPID TRAVEL (B-AXIS) 1,181 IPM
MAIN SPINDLE MOTOR 15/10 HP
SUB SPINDLE MOTOR 5/3 HP
ELECTRIC POWER SUPPLY 30 KVA
APPROXIMATE FLOOR SPACE 116" L X 65" W X 74" H
APPROXIMATE WEIGHT 9,100 LBS.
ELECTRICS 220 VOLT/ 3 PHASE/ 60 CYCLE
EQUIPPED WITH:
FANUC OiT CNC CONTROL
TOOL TOUCH PROBE
ATC 16C COLLET CHUCKS ON MAIN & SUB SPINDLE
6" & 5" 3 JAW CHUCKS
PARTS CATCHER & CONVEYOR
TOOL HOLDERS
COOLANT SYSTEM
TURBO CHIP CONVEYOR
ALL AVAILABLE MANUALS
