KIA SKT 15 LMS
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
KIA
Model:
SKT 15 LMS
Condition:
Not Specified
Year:
2005
Stock #:
25381
Status:
Sold
Description:
FANUC OI-TB 3-AXIS, 6.5" 3-JAW, 21.6" SWG, 8.7" x 21.6" x 29.5", 6K RPM, 12 STN TURRET, COOLANT SYSTEM
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

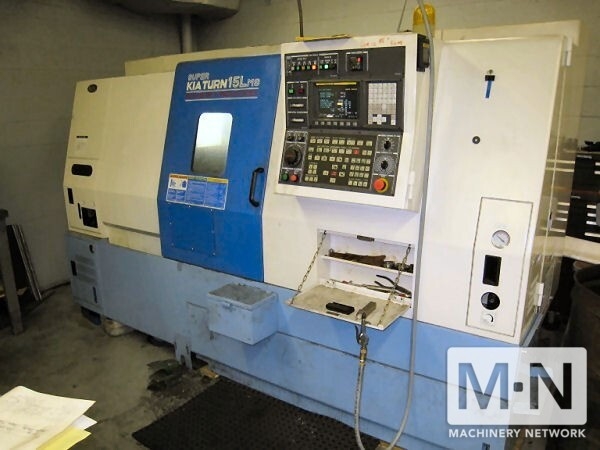

(1) USED KIA MODEL SUPER KIA TURN 15 LMS MILL/TURN CNC LATHE
SERIAL NO. SKT15LMS007 NEW: 2005
SPECIFICATIONS:
SWING OVER BED 21.6"
MAXIMUM MACHINING DIAMETER 10"
CHUCK SIZE - MAIN SPINDLE 6"
CHUCK SIZE - SUB-SPINDLE 5"
SWING OVER CROSS SLIDE 13.8"
MAXIMUM TURNING LENGTH 20.8"
BAR CAPACITY 1.5"
SPINDLE SPEED - MAIN SPINDLE 6,000 RPM
SPINDLE SPEED - SUB-SPINDLE 5,000 RPM
SPINDLE NOSE A2-6
TURRET - NUMBER OF TOOLS 12
INDEXING TIME (1 STEP / FULL) 0.3 SECONDS / 0.6 SECONDS
LIVE TOOLING ROTATING SPEED 4,000 RPM
X-AXIS TRAVEL 8.7"
Z-AXIS TRAVEL 21.6"
B-AXIS TRAVEL 29.5"
RAPID TRAVEL (X, Z AXES) 1,417 IPM
RAPID TRAVEL (B-AXIS) 1,181 IPM
MAIN SPINDLE MOTOR 15/10 HP
SUB SPINDLE MOTOR 5/3 HP
ELECTRIC POWER SUPPLY 30 KVA
APPROXIMATE FLOOR SAPCE 116" L X 65" W X 74" H
APPROXIMATE WEIGHT 9,100 LBS.
ELECTRICS 220 VOLT/ 3 PHASE/ 60 CYCLE
EQUIPPED WITH:

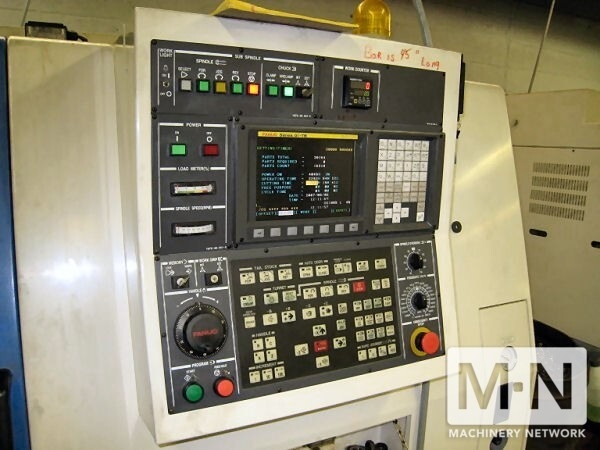

FANUC OI-TB 3-AXIS CONTROL
POLAR COORDINATE INTERPOLATION (SIMULATES Y-AXIS)
TOOL TOUCH PROBE

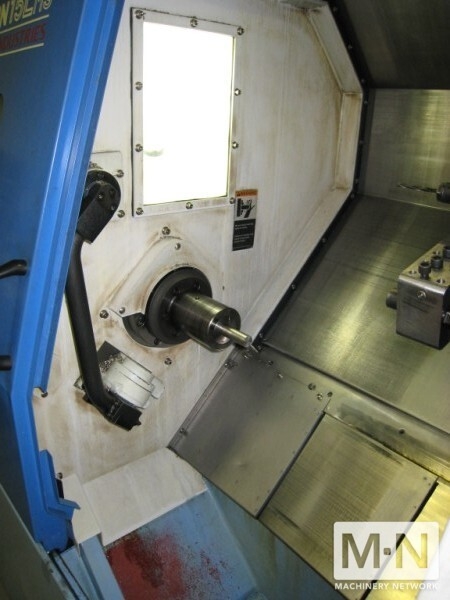

SUB-SPINDLE

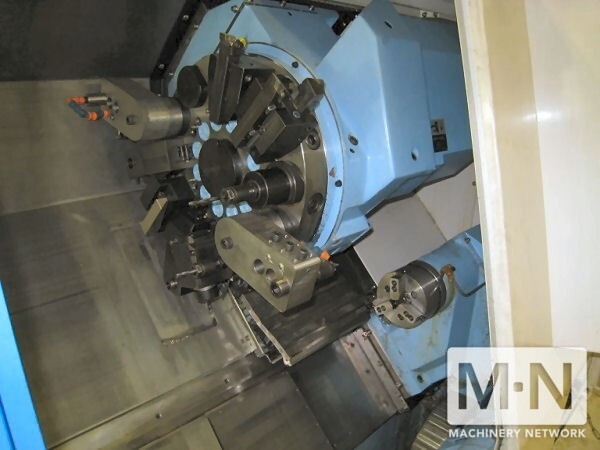

12 POSITION LIVE TURRET
FULL C-AXIS ON MAIN SPINDLE
5 DEGREE INDEXING ON SUB-SPINDLE
WORK COUNTER
6.5" 3-JAW HYDRAULIC CHUCK ON MAIN SPINDLE
5.3" 3-JAW HYDRAULIC CHUCK ON SUB-SPINDLE
16 C COLLET NOSE
PARTS CATRCHER
COOLANT SYSTEM
ALL AVAILABLE MANUALS
4,045 TOTAL ON HOURS
2,242 OPERATING HOURS
733 CUTTING HOURS
SERIAL NO. SKT15LMS007 NEW: 2005
SPECIFICATIONS:
SWING OVER BED 21.6"
MAXIMUM MACHINING DIAMETER 10"
CHUCK SIZE - MAIN SPINDLE 6"
CHUCK SIZE - SUB-SPINDLE 5"
SWING OVER CROSS SLIDE 13.8"
MAXIMUM TURNING LENGTH 20.8"
BAR CAPACITY 1.5"
SPINDLE SPEED - MAIN SPINDLE 6,000 RPM
SPINDLE SPEED - SUB-SPINDLE 5,000 RPM
SPINDLE NOSE A2-6
TURRET - NUMBER OF TOOLS 12
INDEXING TIME (1 STEP / FULL) 0.3 SECONDS / 0.6 SECONDS
LIVE TOOLING ROTATING SPEED 4,000 RPM
X-AXIS TRAVEL 8.7"
Z-AXIS TRAVEL 21.6"
B-AXIS TRAVEL 29.5"
RAPID TRAVEL (X, Z AXES) 1,417 IPM
RAPID TRAVEL (B-AXIS) 1,181 IPM
MAIN SPINDLE MOTOR 15/10 HP
SUB SPINDLE MOTOR 5/3 HP
ELECTRIC POWER SUPPLY 30 KVA
APPROXIMATE FLOOR SAPCE 116" L X 65" W X 74" H
APPROXIMATE WEIGHT 9,100 LBS.
ELECTRICS 220 VOLT/ 3 PHASE/ 60 CYCLE
EQUIPPED WITH:
FANUC OI-TB 3-AXIS CONTROL
POLAR COORDINATE INTERPOLATION (SIMULATES Y-AXIS)
TOOL TOUCH PROBE
SUB-SPINDLE
12 POSITION LIVE TURRET
FULL C-AXIS ON MAIN SPINDLE
5 DEGREE INDEXING ON SUB-SPINDLE
WORK COUNTER
6.5" 3-JAW HYDRAULIC CHUCK ON MAIN SPINDLE
5.3" 3-JAW HYDRAULIC CHUCK ON SUB-SPINDLE
16 C COLLET NOSE
PARTS CATRCHER
COOLANT SYSTEM
ALL AVAILABLE MANUALS
4,045 TOTAL ON HOURS
2,242 OPERATING HOURS
733 CUTTING HOURS
