MONARCH 612

Type:

LATHES, ENGINE

Manufacturer:

MONARCH

Model:

612

Condition:

Not Specified

Year:

1970

Stock #:

27827

Status:

Sold

Description:

25"X54", DRO

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

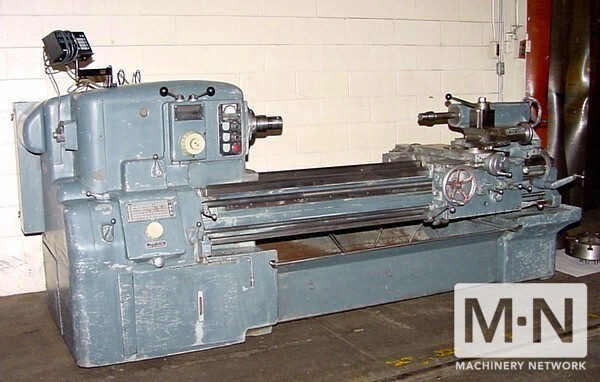

(1) USED 25" x 54" MONARCH ENGINE LATHE MODEL: 612,
S/N: 50460, YEAR: 1970

SPECIFICATIONS:
SWING OVER BED ..................... 25"
SWING OVER CROSS SLIDE ............. 16"
DISTANCE BETWEEN CENTERS ........... 54"
HOLE THRU SPINDLE .................. 2-1/16"
SPINDLE TAPER ...................... D1-6"
SPINDLE SPEED RANGE (36) ........... 12 - 1,500 RPM
THREADING RANGE (66) ............... 2 - 120 TPI
FEED RANGE (66) .................... .001 - .068 IPR
TAILSTOCK SPINDLE TRAVEL ........... 9"
TAILSTOCK SPINDLE TAPER ............ #4MT
WIDTH OF BED ....................... 19-1/2"
APPROXIMATE SIZE ................... 55"W x 132" x 60"H APPROX WEIGHT ....................... 11,500 LBS

EQUIPPED WITH:
SONY DIGITAL READOUT
15" 3-JAW CHUCK 15" 4-JAW CHUCK
ALORIS TOOLPOST
THREAD DIAL INDICATOR
HARDENED BED WAYS
25 HORSE POWER MAIN MOTOR

INSPECT IN NEW JERSEY
