HARIG 612
Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
HARIG
Model:
612
Condition:
Not Specified
Year:
1994
Stock #:
24669
Status:
Sold
Description:
H.F. PM CHUCK
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

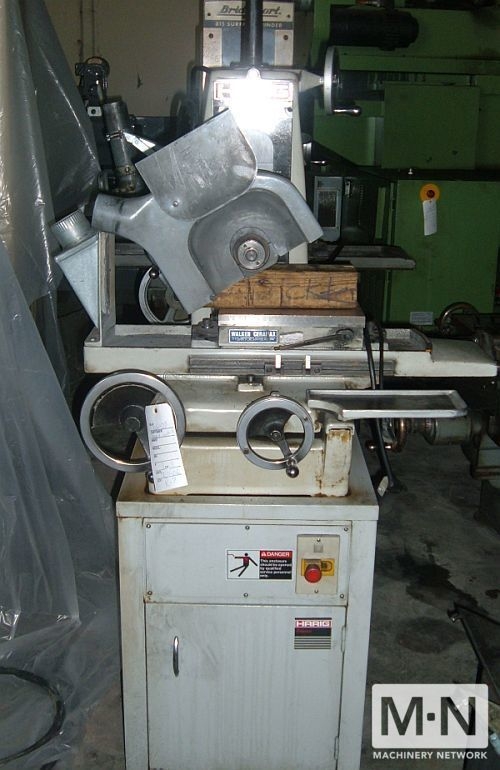

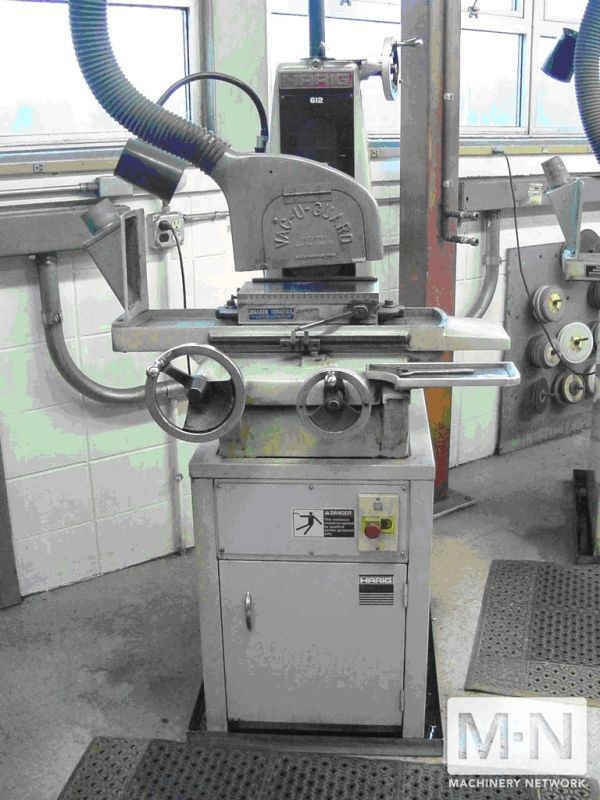

(1) USED 6"x12" HARIG 612 HAND FEED SURFACE GRINDER
NEW: 1995
SPECIFICATIONS:
WIDTH AND LENGTH GROUND ................... 6" X 12" LONGITUDINAL TRAVEL ....................... 12-3/4"
CROSS FEED TRAVEL ......................... 6-3/4" VERTICAL WORKING HEIGHT UNDER 7" WHEEL .... 12"
MAXIMUM GRINDING WHEEL DIAMETER ........... 8"
ELEVATING HANDWHEEL GRAD. ................. 0.0005"
CROSS FEED HANDWHEEL GRAD. ................ 0.001"
SPINDLE SPEED ............................. 3,450 RPM
SPINDLE MOTOR ............................. 1 HP
FLOOR AREA CABINET ........................ 21" X 25"
FLOOR AREA OPERATING SPACE ................ 48" X 45" APPROXIMATE MACHINE WEIGHT ................ 900 LBS
EQUIPPED WITH:
HARIG "CARTRIDGE TYPE" SPINDLE
V AND FLAT WAY CONSTRUCTION
HARIG "FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM
WORK LIGHT
6" X 12" PERMANENT MAGNETIC CHUCK
TEFLON WAYS
CABLE DRIVE FOR LONGITUDINAL TABLE TRAVERSE
INSPECT IN LOS ANGELES
NEW: 1995
SPECIFICATIONS:
WIDTH AND LENGTH GROUND ................... 6" X 12" LONGITUDINAL TRAVEL ....................... 12-3/4"
CROSS FEED TRAVEL ......................... 6-3/4" VERTICAL WORKING HEIGHT UNDER 7" WHEEL .... 12"
MAXIMUM GRINDING WHEEL DIAMETER ........... 8"
ELEVATING HANDWHEEL GRAD. ................. 0.0005"
CROSS FEED HANDWHEEL GRAD. ................ 0.001"
SPINDLE SPEED ............................. 3,450 RPM
SPINDLE MOTOR ............................. 1 HP
FLOOR AREA CABINET ........................ 21" X 25"
FLOOR AREA OPERATING SPACE ................ 48" X 45" APPROXIMATE MACHINE WEIGHT ................ 900 LBS
EQUIPPED WITH:
HARIG "CARTRIDGE TYPE" SPINDLE
V AND FLAT WAY CONSTRUCTION
HARIG "FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM
WORK LIGHT
6" X 12" PERMANENT MAGNETIC CHUCK
TEFLON WAYS
CABLE DRIVE FOR LONGITUDINAL TABLE TRAVERSE
INSPECT IN LOS ANGELES
