MONARCH 610
Type:
LATHES, ENGINE
Manufacturer:
MONARCH
Model:
610
Condition:
Not Specified
Year:
1963
Stock #:
24916
Status:
Sold
Description:
25" x 150", 1500 rpm, 20 hp
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

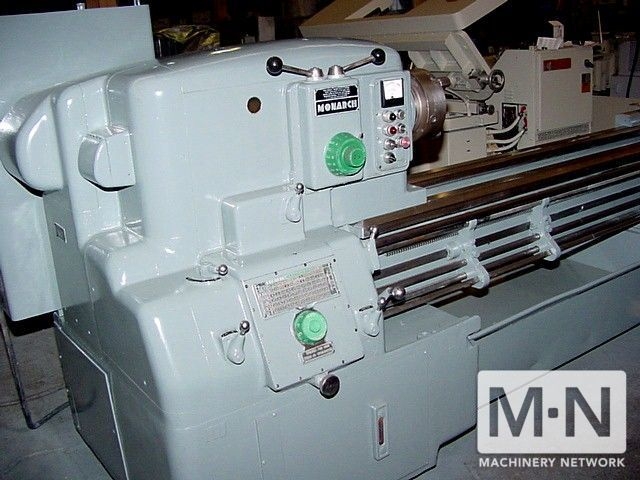

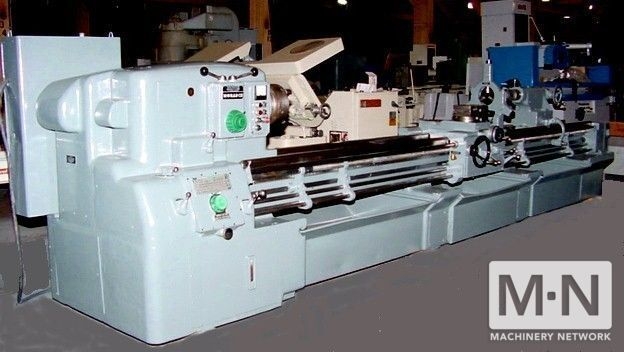

(1) USED 25"x150" MONARCH MODEL 610 ENGINE LATHE - NEW 1963
S/N: 46548-AT
SPECIFICATIONS:
SWING OVER BED: 25"
SWING OVER CROSS SLIDE: 16"
DISTANCE BETWEEN CENTERS: 150"
SPINDLE BORE: 2 1/16"
SPINDLE TAPER: D1-6
SPINDLE SPEEDS (36): 12-1500 RPM
SPINDLE MOTOR: 20 HP
FEEDS: .0011-.0603 IPR
THREADING - STANDARD: 2-120 TPI
TAILSTOCK SPINDLE TRAVEL: 9"
TAILSTOCK SPINDLE TAPER: #4MT
APPROX WEIGHT: 14,500 LBS
EQUIPPED WITH:
10" JAW CHUCK
STEADY REST
THREAD DIAL INDICATOR & MICROMETER CARRIAGE STOP
HARDENED WAYS
INSPECT UNDER POWER IN NEW JERSEY
S/N: 46548-AT
SPECIFICATIONS:
SWING OVER BED: 25"
SWING OVER CROSS SLIDE: 16"
DISTANCE BETWEEN CENTERS: 150"
SPINDLE BORE: 2 1/16"
SPINDLE TAPER: D1-6
SPINDLE SPEEDS (36): 12-1500 RPM
SPINDLE MOTOR: 20 HP
FEEDS: .0011-.0603 IPR
THREADING - STANDARD: 2-120 TPI
TAILSTOCK SPINDLE TRAVEL: 9"
TAILSTOCK SPINDLE TAPER: #4MT
APPROX WEIGHT: 14,500 LBS
EQUIPPED WITH:
10" JAW CHUCK
STEADY REST
THREAD DIAL INDICATOR & MICROMETER CARRIAGE STOP
HARDENED WAYS
INSPECT UNDER POWER IN NEW JERSEY
