HITACHI SEIKI HS-500
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
HITACHI SEIKI
Model:
HS-500
Condition:
Not Specified
Year:
2001
Stock #:
27349
Status:
Sold
Description:
SEICOS E16 CONTROL, 12 LINEAR PALLET SYSTEM, 10K RPM, 120 ATC
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED HITACHI SEIKI HS-500 CNC HORIZONTAL
MACHINING CENTER WITH 12 PALLET F.M.S NEW-2001
SPECIFICATIONS:

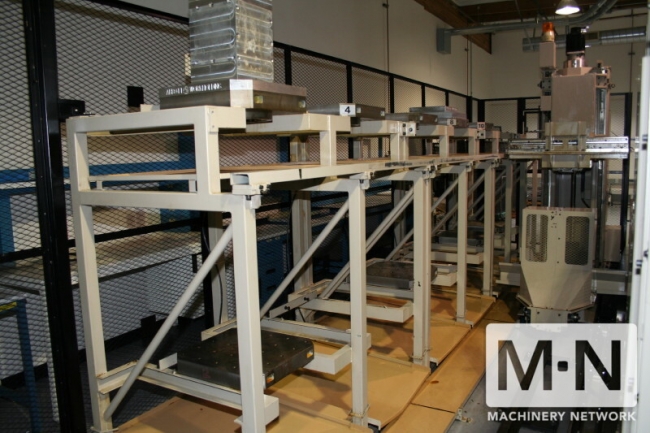

PALLETS: 12
TABLE SIZE: 20" X 20"
TRAVELS X-AXIS: 26.8"
Y-AXIS: 26.8"
Z-AXIS: 26.8"
B-AXIS: 1 DEGREE
TABLE TOP TO SPINDLE CENTER: 2" - 28.8"
TABLE CENTER TO SPINDLE NOSE: 5.9" - 32.7"
FLOOR TO TABLE TOP: 43.3"
SPINDLE SPEED: 12000 RPM
SPINDLE MOTOR: 33 / 30 HP
SPINDLE TAPER: CAT #40
RAPID TRAVERSE RATE: 1172 IPM
CUTTING FEEDRATE: .04 - 787 IPM
JOG FEEDRATE: 0 - 200 IPM
TOOLS: 120 ATC
MAX TOOL LENGTH: 15.7"
MAX TOOL DIAMETER: 3.7"
MAX TOOL WEIGHT: 22 LBS
EQUIPPED WITH:

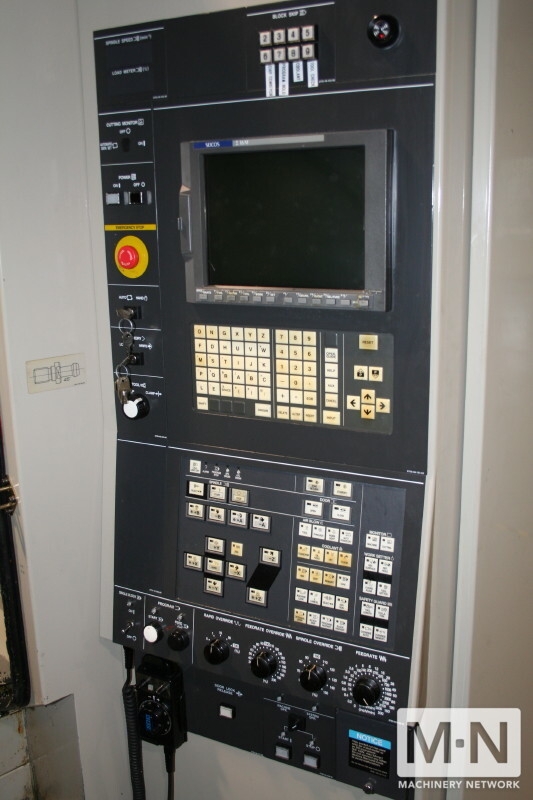

SEICOS E16 /FANUC 16IM CONTROL.
COOLANT THROUGH THE SPINDLE
LOAD/UNLOAD STATION
ASSORTMENT OF TOOLING AND TOMBSTONES
CHIP REMOVAL SYSTEM
LOCATED AT HI-TECH FACILITY ON THE WEST COAST
LESS THAN 3000 CUTTING HOURS !!!!!!!!!!
MACHINING CENTER WITH 12 PALLET F.M.S NEW-2001
SPECIFICATIONS:
PALLETS: 12
TABLE SIZE: 20" X 20"
TRAVELS X-AXIS: 26.8"
Y-AXIS: 26.8"
Z-AXIS: 26.8"
B-AXIS: 1 DEGREE
TABLE TOP TO SPINDLE CENTER: 2" - 28.8"
TABLE CENTER TO SPINDLE NOSE: 5.9" - 32.7"
FLOOR TO TABLE TOP: 43.3"
SPINDLE SPEED: 12000 RPM
SPINDLE MOTOR: 33 / 30 HP
SPINDLE TAPER: CAT #40
RAPID TRAVERSE RATE: 1172 IPM
CUTTING FEEDRATE: .04 - 787 IPM
JOG FEEDRATE: 0 - 200 IPM
TOOLS: 120 ATC
MAX TOOL LENGTH: 15.7"
MAX TOOL DIAMETER: 3.7"
MAX TOOL WEIGHT: 22 LBS
EQUIPPED WITH:
SEICOS E16 /FANUC 16IM CONTROL.
COOLANT THROUGH THE SPINDLE
LOAD/UNLOAD STATION
ASSORTMENT OF TOOLING AND TOMBSTONES
CHIP REMOVAL SYSTEM
LOCATED AT HI-TECH FACILITY ON THE WEST COAST
LESS THAN 3000 CUTTING HOURS !!!!!!!!!!
