HITACHI SEIKI HG-500
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
HITACHI SEIKI
Model:
HG-500
Condition:
Not Specified
Year:
1998
Stock #:
25933
Status:
Sold
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

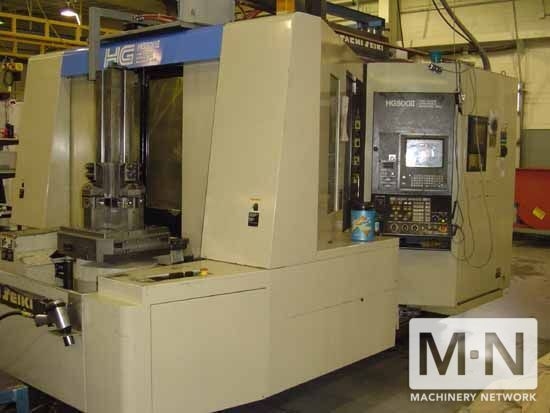

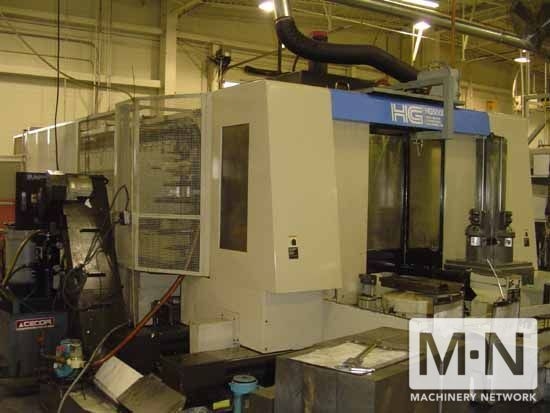

1998 Hitachi Seiki HG500II CNC Horizontal Machining Center
Specifications:
Pallet Size: 19.7"
Travel: X-Axis 30"
Y-Axis 28"
Z-Axis 26"
Pallet Index .001 Degree
Spindle Speed 20 - 6,000 RPM
Spindle Taper 50
Spindle Torque 663 ft. lbs.
Spindle Nose to Table Center 5" - 31"
Spindle Center to Table Top 0 - 28"
Tools 120
Main Motor 25 / 20 HP
Number of Pallets 2
Rapid Traverse Rates 945 IPM
Pallet Load Capacity 2,200 lbs.
Tool Change Time (T-T / C-C) 5.0 / 8.0 Seconds
Max Tool Diameter 4.3" / 9.64"
Max Tool Length 15.7"
Max Tool Weight 44 lbs.
Machine Dimensions (L x W x H) 196" x 126" x 124"
Machine Weight 29,700 lbs.
Equipped With:
Fanuc 15 CNC Control
Chip Conveyor

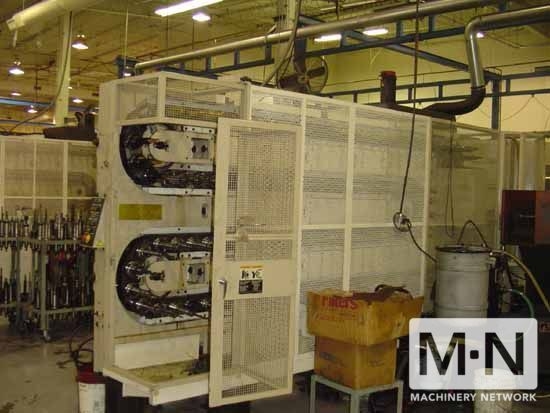

120 ATC
Specifications:
Pallet Size: 19.7"
Travel: X-Axis 30"
Y-Axis 28"
Z-Axis 26"
Pallet Index .001 Degree
Spindle Speed 20 - 6,000 RPM
Spindle Taper 50
Spindle Torque 663 ft. lbs.
Spindle Nose to Table Center 5" - 31"
Spindle Center to Table Top 0 - 28"
Tools 120
Main Motor 25 / 20 HP
Number of Pallets 2
Rapid Traverse Rates 945 IPM
Pallet Load Capacity 2,200 lbs.
Tool Change Time (T-T / C-C) 5.0 / 8.0 Seconds
Max Tool Diameter 4.3" / 9.64"
Max Tool Length 15.7"
Max Tool Weight 44 lbs.
Machine Dimensions (L x W x H) 196" x 126" x 124"
Machine Weight 29,700 lbs.
Equipped With:
Fanuc 15 CNC Control
Chip Conveyor
120 ATC
