MORI SEIKI SH-5000 F.M.S.

Type:

MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)

Manufacturer:

MORI SEIKI

Model:

SH-5000 F.M.S.

Condition:

Not Specified

Year:

2001

Stock #:

27325

Status:

Sold

Description:

FANUC 16IMA CONTROL, 240 ATC, 12 PALLETS, 12K RPM, 4 AXIS.

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED MORI SEIKI SH5000 CNC HORIZONTAL MACHINING CENTER WITH 11 PALLETS NEW 2001

SPECIFICATIONS:
NUMBER OF PALLETS: 11
PALLET SIZE: 19.7" X 19.7"
AXIS TRAVEL X-AXIS 31.5"
Y-AXIS 27.5"
Z-AXIS 27.5"
B-AXIS 360,000 POSITION
SPINDLE SPEED RANGE 12,000 RPM
SPINDLE TAPER CAT #40
SPINDLE MOTOR 30 / 25 HP
TOOL CHANGER CAPACITY 240 TOOLS

EQUIPPED WITH:

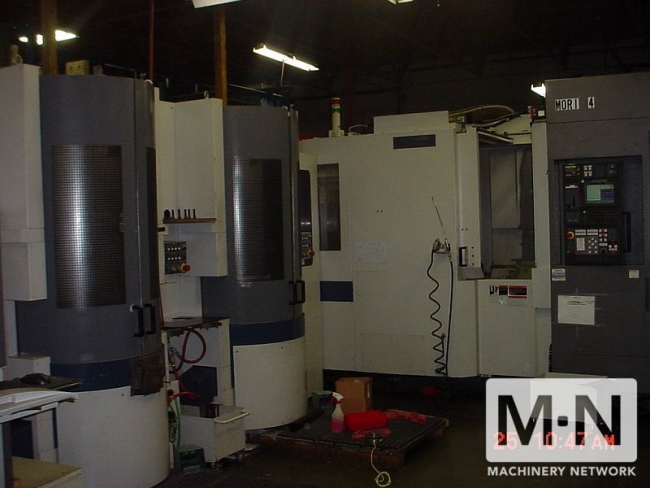

11 POSITION PALLET POOL WITH (2) LOAD/UNLOAD STATIONS

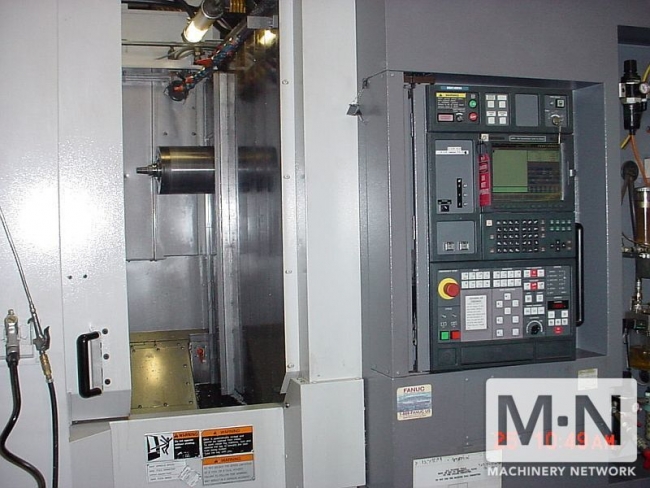

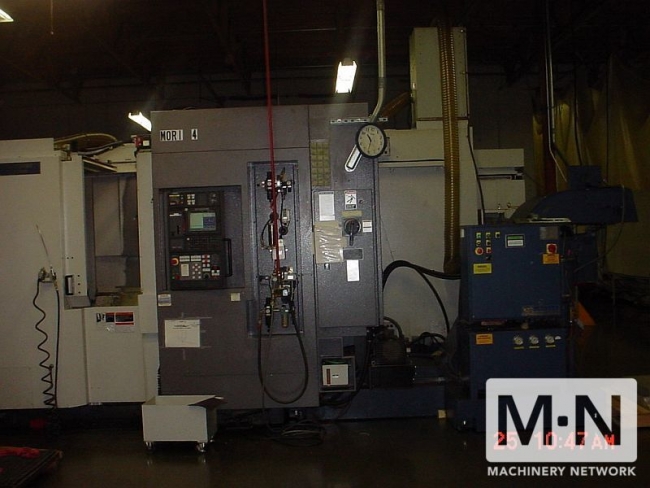

FANUC 16iMA CNC CONTROL (MSG-501MA)
-1280M MEMORY
-HELICAL INTERPOLATION
-CUSTOM MACROS B
-COORDINATE SYSTEM ROTATION
-EXPANDED PART PROGRAM EDITING
-SYNCHRONIZED TAPPING
-99 PAIRS OF TOOL OFFSETS
-LEVEL 1 HIGH SPEED LOOK AHEAD FEATURE

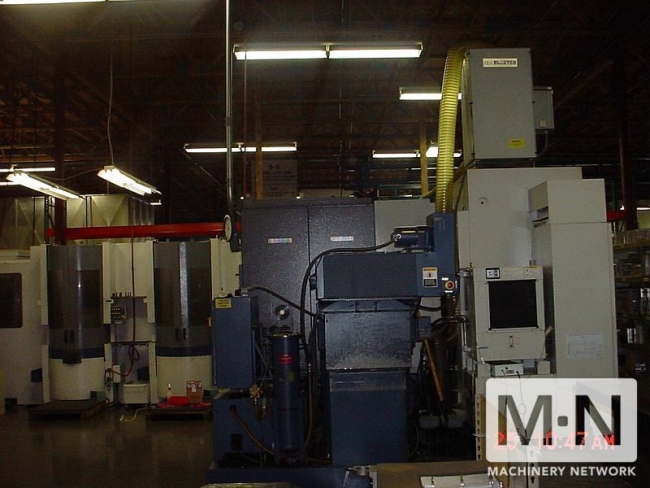

HIGH PRESSURE COOLANT SYSTEM (TURBO, BUILT INTO CC)
OIL HOLE DRILL COOLANT SYSTEM
COOLANT SHOWER SYSTEM
COOLANT THRU SPINDLE (DIN STYLE)
POSITIONING BLOCK FOR OPTIMAL TOOLING
INTERNAL SCRE TYPE CONVEYOR
COMPLETE COVERS
PROCESS COMPLETION BUZZER AND LAMP
TOOL TIP AIR BLOW
SYNCHRONIZED TAPPING
AUTO CENTERING AND TOOL BREAKAGE DETECTION SYSTEM
COOLANT FLOW SWITCH
OIL SHOT TAPPING FLUID SYSTEM
ADAPTIVE FEEDRATE OVERRIDE
HAND HELD COOLANT HOSE & SPRAY GUN

MACHINE IN HIGH PRECISION AEROSPACE SHOP ON THE WEST COAST

PAID 1.1 MILLION FOR THE MACHINE!!!
