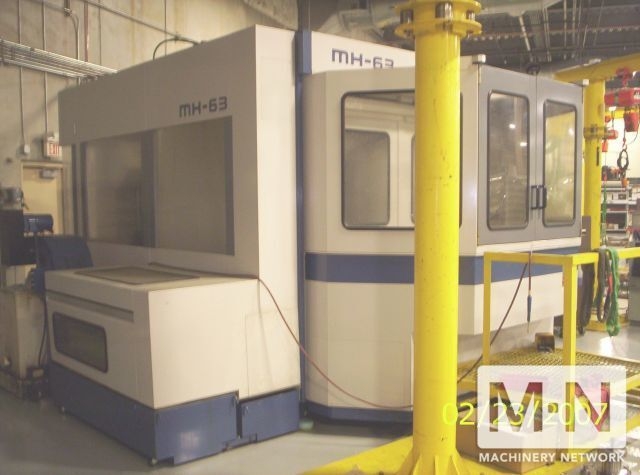

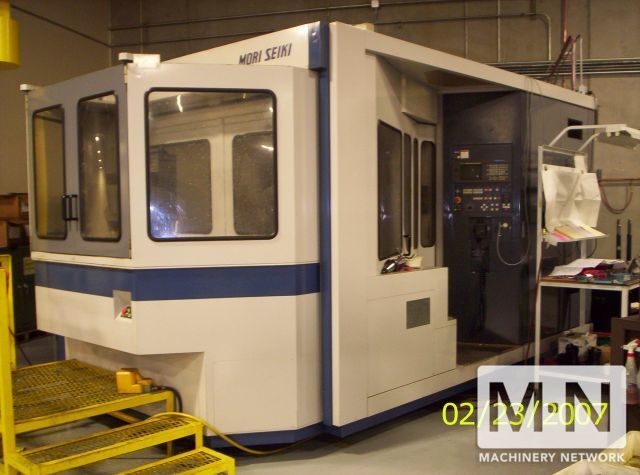

MORI SEIKI MH-63
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MORI SEIKI
Model:
MH-63
Condition:
Not Specified
Year:
1994
Stock #:
24935
Status:
Sold
Description:
FANUC 16M, 1-DEG., 630mm PLLTS, 6K RPM, 60 ATC
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MORI-SEIKI MH-63 CNC HORIZONTAL
MACHINING CENTER NEW - 1994
SPECIFICATIONS:
PALLETS (2): 24.8" X 24.8"
TABLE LOAD CAPACITY: 3,300 LBS
TABLE TRAVELS X-AXIS 39.4"
Y-AXIS 33.5"
Z-AXIS 36.22"
TABLE INDEXING: 1-DEGREE
MAX SPINDLE SPEED: 6,000 RPM
SPINDLE MOTOR: 20 HP
SPINDLE TAPER: #50
ATC: 60 ATC
EQUIPPED WITH:
FANUC 16M CNC CONTROL

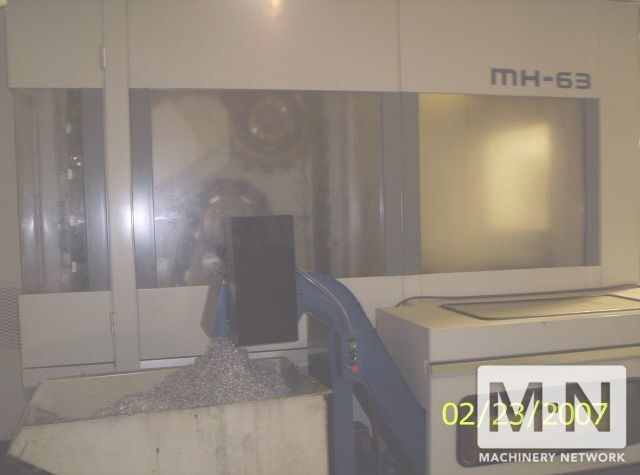

CHIP CONVEYOR
RIGID TAPPING
HIGH PRESSURE OIL HOLE
OIL COOLER
FLOOD COOLANT SYSTEM
FULL ENCLOSURE
ALL AVAILABLE MANUALS
MACHINING CENTER NEW - 1994
SPECIFICATIONS:
PALLETS (2): 24.8" X 24.8"
TABLE LOAD CAPACITY: 3,300 LBS
TABLE TRAVELS X-AXIS 39.4"
Y-AXIS 33.5"
Z-AXIS 36.22"
TABLE INDEXING: 1-DEGREE
MAX SPINDLE SPEED: 6,000 RPM
SPINDLE MOTOR: 20 HP
SPINDLE TAPER: #50
ATC: 60 ATC
EQUIPPED WITH:
FANUC 16M CNC CONTROL
CHIP CONVEYOR
RIGID TAPPING
HIGH PRESSURE OIL HOLE
OIL COOLER
FLOOD COOLANT SYSTEM
FULL ENCLOSURE
ALL AVAILABLE MANUALS
