MAZAK MAZATECH H-500/50
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MAZAK
Model:
MAZATECH H-500/50
Condition:
Not Specified
Year:
1989
Stock #:
24341
Status:
Sold
Description:
MAZATROL M-32, (2) x 19.7" PLLTS, 28.0" x 25.6" x 25.6", ISO #50, CAT #50, 5K RPM, FULL 4TH AXIS
Location:
Ohio, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

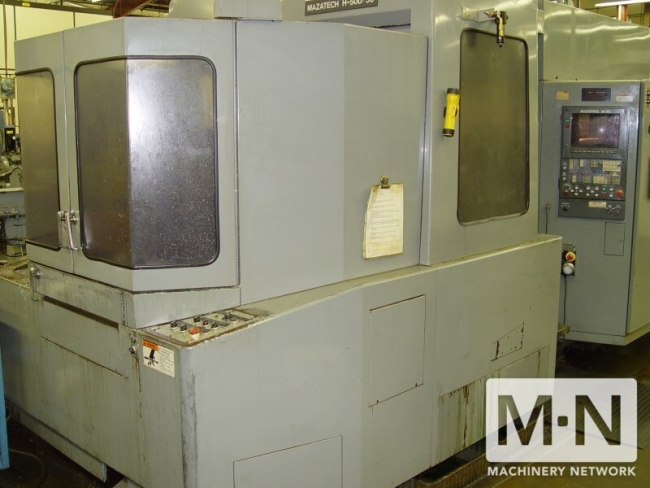

(1) USED MAZAK MAZATECH H-500/50 HMC
NEW 1989
SPECIFICATIONS:
NUMBER OF PALLETS 2 PALLET CHANGER SYSTEM
PALLET TABLE SIZE 19.7 X 19.7
TRAVEL: X-AXIS 28.0"
Y-AXIS 25.6"
Z-AXIS 25.6"
TABLE INDEXING FULL 4TH AXIS
DIST SPDLE CENTER TO TBL TOP 1.97-27.6"
DIST SPDLE NOSE TO TBL CENTER 5.9-31.5"
RAPID TRAVERSE RATES (X-Y-Z) 945 IPM
SPINDLE NOSE ISO #50
SPINDLE SPEED RANGE 22-5000 RPM
NO. SPINDLE SPEED 1 RPM INCREMENTS
MAX. SPINDLE TOQUE 443 FT-LBS

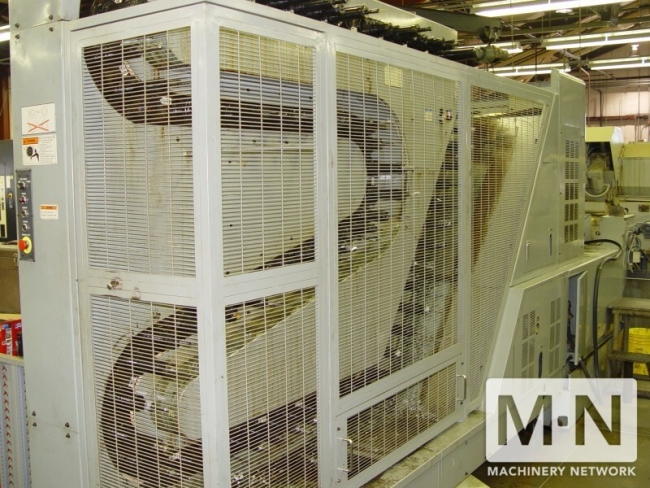

TOOL MAGAZINE CAPACITY 80
TOOL SELECTION METHOD RANDOM, SHORTEST PATH
TOOL SHANK CONFIGURATION CAT. #50
MAX TOOL DIAMETER 5.12"
ADJACENT POCKETS EMPTY 10.2"
MAX. TOOL LENGTH (FROM GAUGE) 15.7"
MAX. TOOL WEIGHT 59.4 LBS
TABLE LOAD CAPACITY 2200 LBS
MAIN MOTOR AC 20 HP
MAX WORK-PIECE SIZE 27.6 " DIA. X 31.5" HT
FLOOR SPACE REQUIREMENTS 377.2 SQ FEET (16.4 X 23 FT)
MACHINE WEIGHT 30800 LBS.
EQUIPPED WITH:

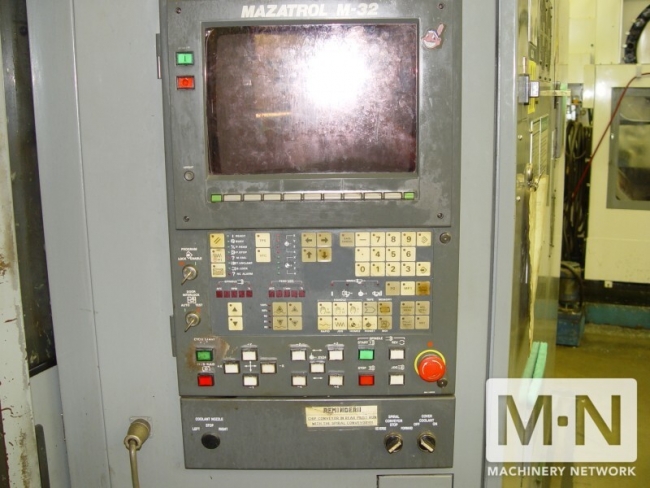

MAZATROL M-32 CTRL
TOTALLY ENCLOSED CHIP AND COOLANT GUARD
COOLANT THRU SPINDLE SYSTEM
NIAGARA COOLANT SYSTEM
SPINDLE CHILLER UNIT
CHIP CONVEYOR
(6) PALLETS
(4) TOMBSTONES
(2) RISER PLATES
NEW 1989
SPECIFICATIONS:
NUMBER OF PALLETS 2 PALLET CHANGER SYSTEM
PALLET TABLE SIZE 19.7 X 19.7
TRAVEL: X-AXIS 28.0"
Y-AXIS 25.6"
Z-AXIS 25.6"
TABLE INDEXING FULL 4TH AXIS
DIST SPDLE CENTER TO TBL TOP 1.97-27.6"
DIST SPDLE NOSE TO TBL CENTER 5.9-31.5"
RAPID TRAVERSE RATES (X-Y-Z) 945 IPM
SPINDLE NOSE ISO #50
SPINDLE SPEED RANGE 22-5000 RPM
NO. SPINDLE SPEED 1 RPM INCREMENTS
MAX. SPINDLE TOQUE 443 FT-LBS
TOOL MAGAZINE CAPACITY 80
TOOL SELECTION METHOD RANDOM, SHORTEST PATH
TOOL SHANK CONFIGURATION CAT. #50
MAX TOOL DIAMETER 5.12"
ADJACENT POCKETS EMPTY 10.2"
MAX. TOOL LENGTH (FROM GAUGE) 15.7"
MAX. TOOL WEIGHT 59.4 LBS
TABLE LOAD CAPACITY 2200 LBS
MAIN MOTOR AC 20 HP
MAX WORK-PIECE SIZE 27.6 " DIA. X 31.5" HT
FLOOR SPACE REQUIREMENTS 377.2 SQ FEET (16.4 X 23 FT)
MACHINE WEIGHT 30800 LBS.
EQUIPPED WITH:
MAZATROL M-32 CTRL
TOTALLY ENCLOSED CHIP AND COOLANT GUARD
COOLANT THRU SPINDLE SYSTEM
NIAGARA COOLANT SYSTEM
SPINDLE CHILLER UNIT
CHIP CONVEYOR
(6) PALLETS
(4) TOMBSTONES
(2) RISER PLATES
