MAZAK INTEGREX E-1850 V12 II 5-AXIS MILL/TURN CENTER NEW 2011 - Low Hours
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MAZAK
Model:
INTEGREX E-1850V12
Condition:
Used - Good
Year:
2011
Stock #:
38047
Status:
Sold
Description:
Mazatrol Matrix control, 120"x72"x80", (2) pallets, 120 ATC, Low Hours from Tier-1 aerospace facility
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK INTEGREX E-1850 V12 II, 5-AXIS MILL/TURN CENTER - NEW 2011
SPECIFICATIONS
Pallet Size
49" x 49"
X-Axis Travel
120"
Y-Axis Travel
72.8"
Z-Axis Travel
70.86"

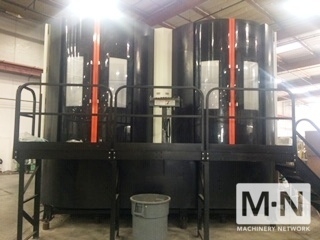

Tool Magazine Capacity
120 ATC
Spindle Speed
5,000 RPM
Spindle Taper
CAT 50 Big Plus

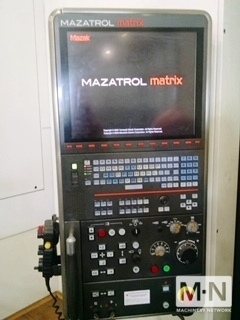

Control
Mazatrol Matrix
Chip Removal
Chip Conveyor
Coolant
Through-Spindle Coolant
Max Workpiece Diameter
92.52"
Max Workpiece Height
70.87"
Milling Spindle Motor (30 min/Cont/Max Torque)
50 HP/40 HP/372'/lbs
High Torque Turning Table
150 RPM
C-Axis
.0001 Degree
Tool Magazine
120 HSK
Square Bore Tap Pallet
1250MM
Hi-Torque Milling Spindle
5000 RPM
Pallet Indexing
Full 4th Axis
Work Measuring System
RMP60M/RMP600
EQUIPPED WITH:
- MAZATROL MATRIX CONTROL
- RENISHAW PROBE
SPECIFICATIONS
Pallet Size
49" x 49"
X-Axis Travel
120"
Y-Axis Travel
72.8"
Z-Axis Travel
70.86"
Tool Magazine Capacity
120 ATC
Spindle Speed
5,000 RPM
Spindle Taper
CAT 50 Big Plus
Control
Mazatrol Matrix
Chip Removal
Chip Conveyor
Coolant
Through-Spindle Coolant
Max Workpiece Diameter
92.52"
Max Workpiece Height
70.87"
Milling Spindle Motor (30 min/Cont/Max Torque)
50 HP/40 HP/372'/lbs
High Torque Turning Table
150 RPM
C-Axis
.0001 Degree
Tool Magazine
120 HSK
Square Bore Tap Pallet
1250MM
Hi-Torque Milling Spindle
5000 RPM
Pallet Indexing
Full 4th Axis
Work Measuring System
RMP60M/RMP600
EQUIPPED WITH:
- MAZATROL MATRIX CONTROL
- RENISHAW PROBE
