MAZAK FH 4800
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MAZAK
Model:
FH 4800
Condition:
Not Specified
Year:
1999
Stock #:
31214
Status:
Sold
Description:
MAZATROL FUSION 640M CONTROL 4 MACHINES WITH 36 PALLETS, 80-120 ATC, 12,000 RPM CAT-40
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

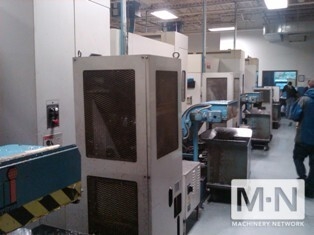

1) MAZAK FH48 CNC 4-MACHINE HORIZONTAL MACHINING CENTER NEW 1999
SPECIFICATIONS PALLET SIZE: ............................ 15.75" X 15.75" TRAVELS: X-AXIS TRAVELS: ..................... ... 22.05" Y-AXIS TRAVELS: ......................... 24.02" Z-AXIS TRAVELS: ......................... 22.05" DISTANCE FROM SPINDLE CENTER TO: TOP OF PALLET: .......................... 1.97" - 25.98" DISTANCE FROM SPINDLE NOSE TO: PALLET CENTER: .......................... 5.91" - 27.95" PALLET INDEXING: ........................ SEE BELOW WORKPIECE SIZE: MAXIMUM TABLE LOAD: ..................... 880 LBS MAXIMUM WORKPIECE HEIGHT: ............... 27.95" MAXIMUM WORKPIECE DIAMETER: ............. 24.01" SPINDLE: SPINDLE NOSE: ........................... CAT #40 SPINDLE HORSEPOWER (10/30 MIN/CONT): .... 30/20/15 HP SPINDLE TORQUE: ......................... 195 FT/LBS OBTAINS FULL HP @: ...................... 690 RPM CONSTANT TORQUE RANGE: .................. 35 - 690 RPM SPINDLE RPM: ............................ 12,000 SPINDLE SPEED INCREMENT: ................ 1 RPM NUMBER OF RANGES: ....................... 2 RANGES TOOL CLAMPING FORCE: .................... 2314 FT/LBS AUTOMATIC TOOL CHANGER: MAGAZINE CAPACITY: ...................... SEE BELOW TOOL-TO-TOOL TIME: ...................... 1.3 SECONDS CHIP-TO-CHIP TIME (APPROX.): ............ 3.0 SECONDS MAXIMUM TOOL LENGTH...................... 14.17" MAXIMUM TOOL WEIGHT...................... 26.46 LBS FLOOR SPACE REQUIRED..................... 105.5' X 163.8" MACHINE HEIGHT FROM BOTTOM OF BASE....... 103.86" TOTAL POWER REQUIRED (MACHINE ONLY)...... 42 KVA NOTE: ACTUAL MACHINE MAIN TRANSFORMER KVA RATING WILL BE GREATER. MACHINE WEIGHT........................... 20,723 LBS
MACHINE #1 SPECIFICATION: · YEAR OF MANUFACTURE 8/1998 · 120-TOOL MAGAZINE · 12,000 RPM CAT-40 · 1-DEGREE PALLET INDEX · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGGRA COOLANT · FLOOD COOLANT
PROBE READY/NO PROBE
MACHINE #2 SPECIFICATION
· YEAR OF MANUFACTURE 1/1999 · 80-TOOL MAGAZINE · 12,000 RPM CAT-40 · FULL NCRT TABLE · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGGRA COOLANT · FLOOD COOLANT
PROBE READY W/ PROBE
MACHINE #3 SPECIFICATION
· YEAR OF MANUFACTURE 12/1999 · 120-TOOL MAGAZINE · 12,000 RPM CAT-40 · 1-DEGREE PALLET INDEX · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGGRA COOLANT · FLOOD COOLANT
PROBE READY W/ NO PROBE
MACHINE #4 SPECIFICATION · YEAR OF MANUFACTURE 7/2000 · 120-TOOL MAGAZINE · 12,000 RPM CAT-40
· 1-DEGREE PALLET INDEX · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGRA COOLANT · FLOOD COOLANT PROBE READY W/ PROBE

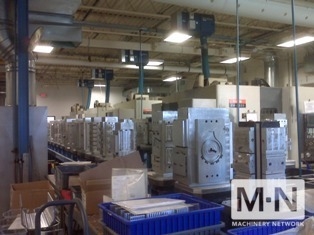

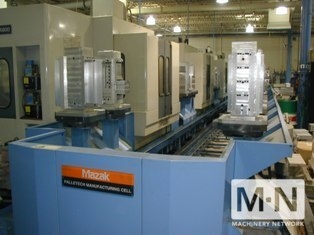

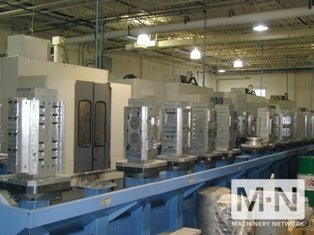

MMC-4800 PALLETECH SINGLE LEVEL 36-STATION WITH 2-LOAD STATIONS. PALLETECH IS CONTROLLED WITH MACHINE #1 CONTROL.
SPECIFICATIONS PALLET SIZE: ............................ 15.75" X 15.75" TRAVELS: X-AXIS TRAVELS: ..................... ... 22.05" Y-AXIS TRAVELS: ......................... 24.02" Z-AXIS TRAVELS: ......................... 22.05" DISTANCE FROM SPINDLE CENTER TO: TOP OF PALLET: .......................... 1.97" - 25.98" DISTANCE FROM SPINDLE NOSE TO: PALLET CENTER: .......................... 5.91" - 27.95" PALLET INDEXING: ........................ SEE BELOW WORKPIECE SIZE: MAXIMUM TABLE LOAD: ..................... 880 LBS MAXIMUM WORKPIECE HEIGHT: ............... 27.95" MAXIMUM WORKPIECE DIAMETER: ............. 24.01" SPINDLE: SPINDLE NOSE: ........................... CAT #40 SPINDLE HORSEPOWER (10/30 MIN/CONT): .... 30/20/15 HP SPINDLE TORQUE: ......................... 195 FT/LBS OBTAINS FULL HP @: ...................... 690 RPM CONSTANT TORQUE RANGE: .................. 35 - 690 RPM SPINDLE RPM: ............................ 12,000 SPINDLE SPEED INCREMENT: ................ 1 RPM NUMBER OF RANGES: ....................... 2 RANGES TOOL CLAMPING FORCE: .................... 2314 FT/LBS AUTOMATIC TOOL CHANGER: MAGAZINE CAPACITY: ...................... SEE BELOW TOOL-TO-TOOL TIME: ...................... 1.3 SECONDS CHIP-TO-CHIP TIME (APPROX.): ............ 3.0 SECONDS MAXIMUM TOOL LENGTH...................... 14.17" MAXIMUM TOOL WEIGHT...................... 26.46 LBS FLOOR SPACE REQUIRED..................... 105.5' X 163.8" MACHINE HEIGHT FROM BOTTOM OF BASE....... 103.86" TOTAL POWER REQUIRED (MACHINE ONLY)...... 42 KVA NOTE: ACTUAL MACHINE MAIN TRANSFORMER KVA RATING WILL BE GREATER. MACHINE WEIGHT........................... 20,723 LBS
MACHINE #1 SPECIFICATION: · YEAR OF MANUFACTURE 8/1998 · 120-TOOL MAGAZINE · 12,000 RPM CAT-40 · 1-DEGREE PALLET INDEX · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGGRA COOLANT · FLOOD COOLANT
PROBE READY/NO PROBE
MACHINE #2 SPECIFICATION
· YEAR OF MANUFACTURE 1/1999 · 80-TOOL MAGAZINE · 12,000 RPM CAT-40 · FULL NCRT TABLE · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGGRA COOLANT · FLOOD COOLANT
PROBE READY W/ PROBE
MACHINE #3 SPECIFICATION
· YEAR OF MANUFACTURE 12/1999 · 120-TOOL MAGAZINE · 12,000 RPM CAT-40 · 1-DEGREE PALLET INDEX · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGGRA COOLANT · FLOOD COOLANT
PROBE READY W/ NO PROBE
MACHINE #4 SPECIFICATION · YEAR OF MANUFACTURE 7/2000 · 120-TOOL MAGAZINE · 12,000 RPM CAT-40
· 1-DEGREE PALLET INDEX · CHIP CONVEYOR REAR DISCHARGE HINGE · COOLANT THROUGH THE SPINDLE · NIAGRA COOLANT · FLOOD COOLANT PROBE READY W/ PROBE
MMC-4800 PALLETECH SINGLE LEVEL 36-STATION WITH 2-LOAD STATIONS. PALLETECH IS CONTROLLED WITH MACHINE #1 CONTROL.
