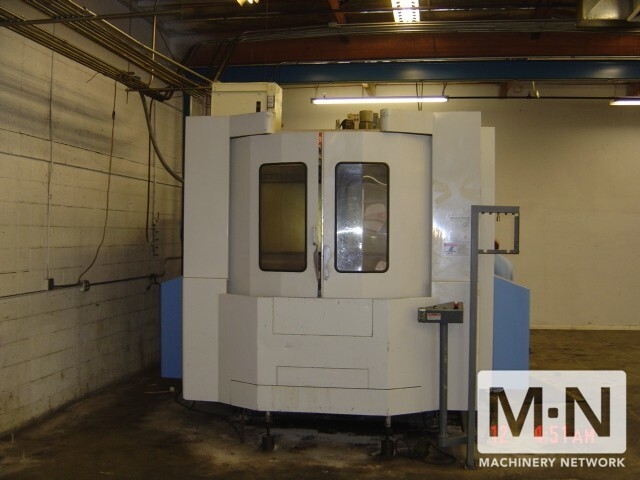

MAZAK FH680
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MAZAK
Model:
FH680
Condition:
Not Specified
Year:
1997
Stock #:
26052
Status:
Sold
Description:
MAZATROL M-PLUS, 4 AXIS, 2 x 24.8" PLLT, CAT # 50, 10K RPM, 50HP, 80 TOOLS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

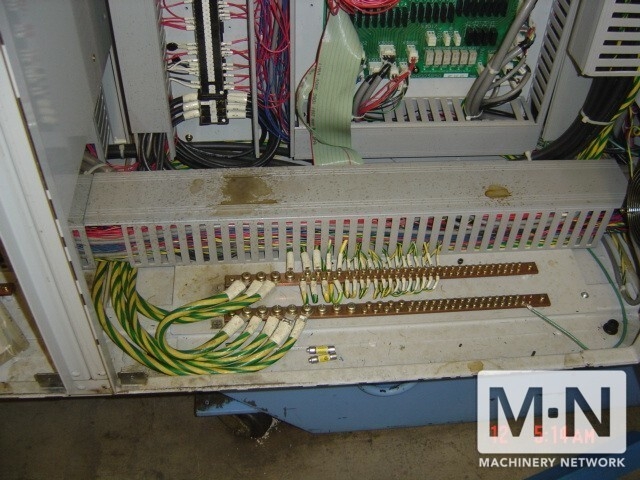

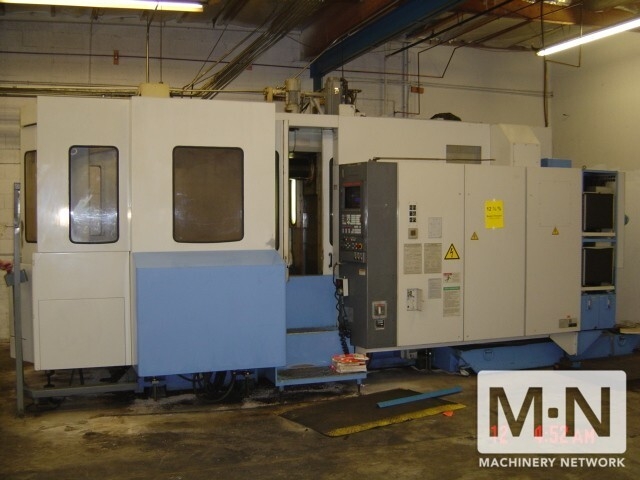

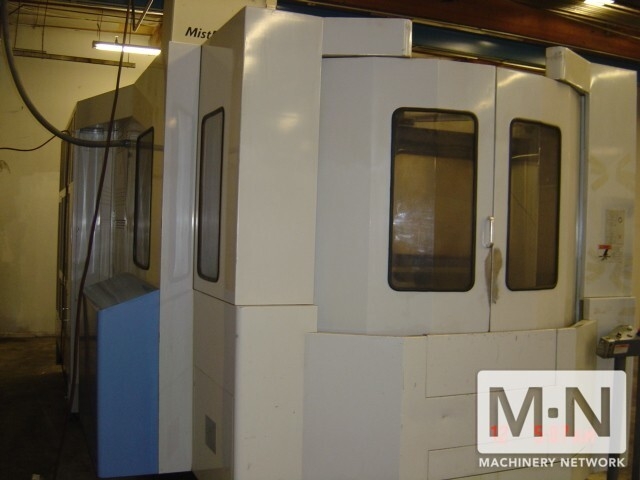

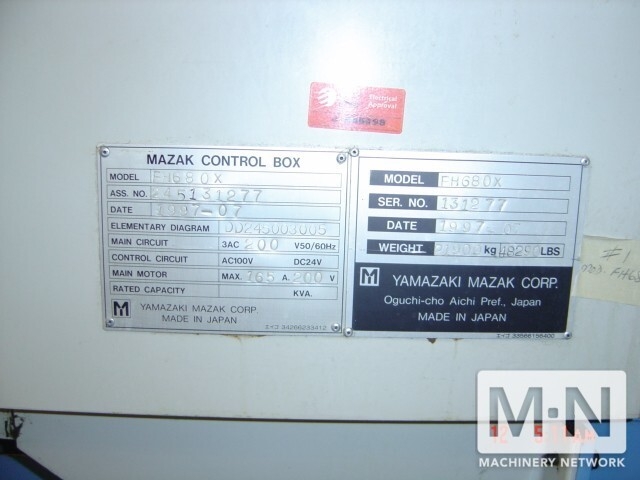

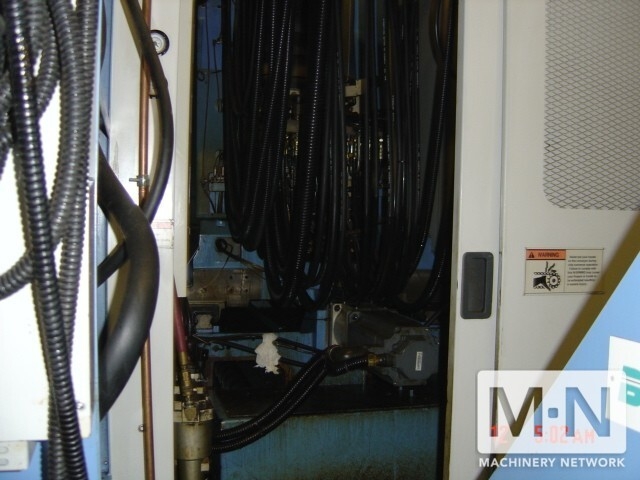

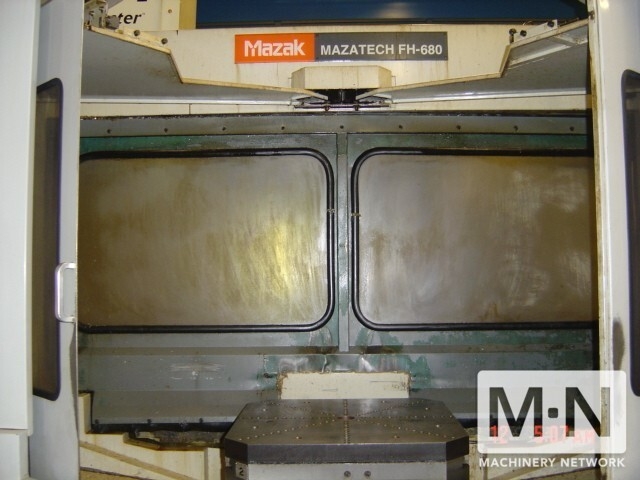

(1)USED MAZAK FH680x 4-AXIS CNC HORIZONTAL MACHINING CENTER
NEW 1997
SPECIFICATIONS

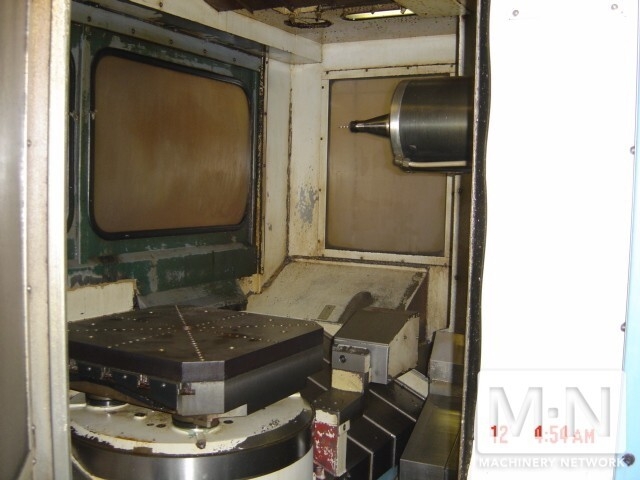

PALLET SIZE:..................... 24.8" X 24.8"
TRAVELS - X AXIS:................ 41.3"
- Y AXIS:................ 31.5"
- Z AXIS:................ 34.7"

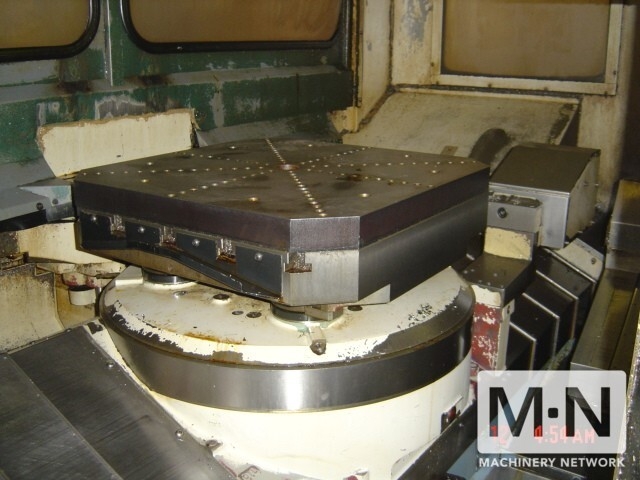

- B AXIS:................ 0.001 DEG/360,000 POSITIONS
DIST SPDL CENTER TO PALLET TOP:.. 3.9"-35.4"
DIST SPDL NOSE TO PALLET CENTER:. 5.9"-40.6"
WORKPIECE SIZE
MAX TABLE LOAD:.................. 3,315 LBS
MAX WORKPIECE HEIGHT:............ 39.4"
MAX WORKPIECE DIAMETER:.......... 41.3"
SPINDLE NOSE:.................... CAT # 50
SPINDLE RPM:..................... 10,000 RPM
SPINDLE HORSEPOWER (30 MIN/CONT). 50/40 HP
SPINDLE TORQUE:.................. 390 FT/LBS
OBTAINS FULL HP @:............... 700 RPM
CONSTANT TORQUE RANGE:........... 35-700 RPM
SPINDLE SPEED INCREMENT:......... 1 RPM
NUMBER OF RANGES:................ 2
(ELECTRIC, AUTOMATICALLY SHIFTED)
TOOL CLAMPING FORCE:............. 4,630 FT/LBS
SPINDLE BEARINGS FRONT (NUMBER/TYPE) 2 SETS ANG CONTACT
SPINDLE COOLING SYSTEM:.......... SPINDLE CHILLER
AUTOMATIC TOOL CHANGER:.......... MAGAZINE CAPACITY 80
TOOL-TO-TOOL TIME:............... 1.8 SECONDS
CHIP-TO-CHIP TIME (APPROX):...... 5 SECONDS
MAX TOOL DIAMETER:............... 5.31"
MAX.TOOL DIA. W/ADJACENT POCKETS EMPTY)
:................... 10.2"
MAX TOOL LENGTH:................. 19.7"
MAX TOOL WEIGHT:................. 66 LBS
TYPE OF SERVO DRIVES:............ DIGITAL AC MOTORS
RAPID TRAVERSE RATE:............. 1,575 IPM
MAX PROGRAMMABLE FEEDRATE:....... 1,575 IPM
X AXIS THRUST:........... 3,520 LBS
Y AXIS THRUST:........... 1,760 LBS
Z AXIS THRUST:........... 3,500 LBS
FLOOR SPACE REQUIRED:............ 146" X 250.5"
HEIGHT FROM BOTTOM OF BASE:...... 125.5"
TOTAL POWER REQ (MACHINE ONLY):.. 75 KVA
MACHINE WEIGHT:.................. 41,990 LBS
EQUIPPED WITH:

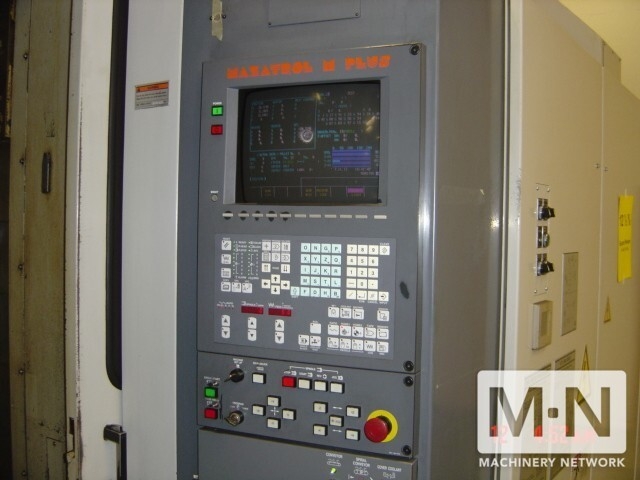

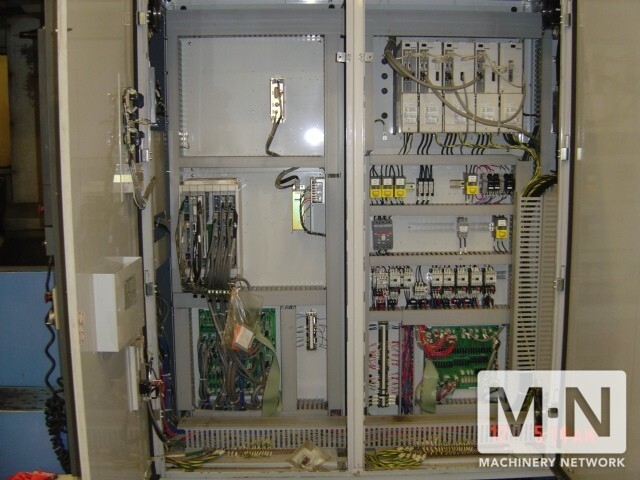

MAZATROL M-PLUS CONTROL
PREPARATION FOR MMS-B
COOLANT THROUGH THE SPINDLE
EIA/ISO CODE INPUT FUNCTION
USER MACRO W/100 VARIABLES
G65-G67
ZPC/CHANGE TO T-SLOT PALLETS
PMC PREPARATION
POSITIONS

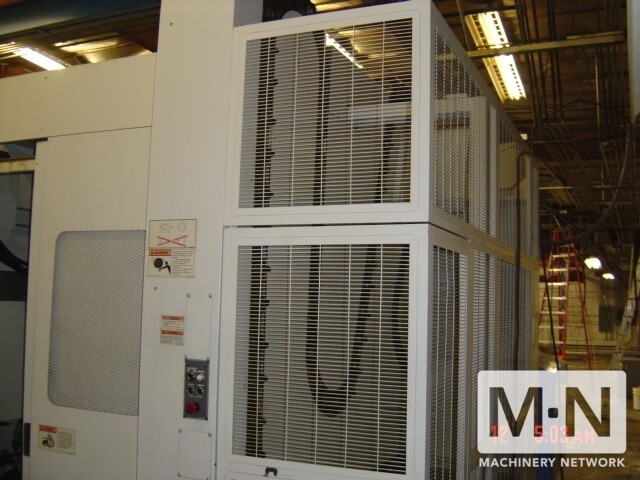

80 TOOL CHAIN MAGAZINE

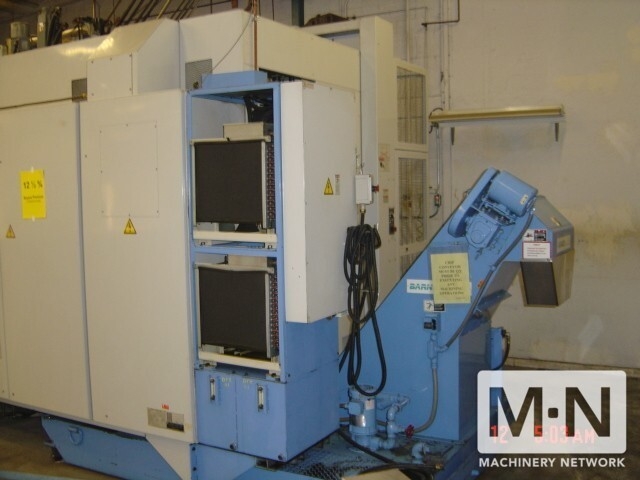

BARNES KLEEN-ALL CHIP REMOVAL
SYSTEM REAR
NEW 1997
SPECIFICATIONS
PALLET SIZE:..................... 24.8" X 24.8"
TRAVELS - X AXIS:................ 41.3"
- Y AXIS:................ 31.5"
- Z AXIS:................ 34.7"
- B AXIS:................ 0.001 DEG/360,000 POSITIONS
DIST SPDL CENTER TO PALLET TOP:.. 3.9"-35.4"
DIST SPDL NOSE TO PALLET CENTER:. 5.9"-40.6"
WORKPIECE SIZE
MAX TABLE LOAD:.................. 3,315 LBS
MAX WORKPIECE HEIGHT:............ 39.4"
MAX WORKPIECE DIAMETER:.......... 41.3"
SPINDLE NOSE:.................... CAT # 50
SPINDLE RPM:..................... 10,000 RPM
SPINDLE HORSEPOWER (30 MIN/CONT). 50/40 HP
SPINDLE TORQUE:.................. 390 FT/LBS
OBTAINS FULL HP @:............... 700 RPM
CONSTANT TORQUE RANGE:........... 35-700 RPM
SPINDLE SPEED INCREMENT:......... 1 RPM
NUMBER OF RANGES:................ 2
(ELECTRIC, AUTOMATICALLY SHIFTED)
TOOL CLAMPING FORCE:............. 4,630 FT/LBS
SPINDLE BEARINGS FRONT (NUMBER/TYPE) 2 SETS ANG CONTACT
SPINDLE COOLING SYSTEM:.......... SPINDLE CHILLER
AUTOMATIC TOOL CHANGER:.......... MAGAZINE CAPACITY 80
TOOL-TO-TOOL TIME:............... 1.8 SECONDS
CHIP-TO-CHIP TIME (APPROX):...... 5 SECONDS
MAX TOOL DIAMETER:............... 5.31"
MAX.TOOL DIA. W/ADJACENT POCKETS EMPTY)
:................... 10.2"
MAX TOOL LENGTH:................. 19.7"
MAX TOOL WEIGHT:................. 66 LBS
TYPE OF SERVO DRIVES:............ DIGITAL AC MOTORS
RAPID TRAVERSE RATE:............. 1,575 IPM
MAX PROGRAMMABLE FEEDRATE:....... 1,575 IPM
X AXIS THRUST:........... 3,520 LBS
Y AXIS THRUST:........... 1,760 LBS
Z AXIS THRUST:........... 3,500 LBS
FLOOR SPACE REQUIRED:............ 146" X 250.5"
HEIGHT FROM BOTTOM OF BASE:...... 125.5"
TOTAL POWER REQ (MACHINE ONLY):.. 75 KVA
MACHINE WEIGHT:.................. 41,990 LBS
EQUIPPED WITH:
MAZATROL M-PLUS CONTROL
PREPARATION FOR MMS-B
COOLANT THROUGH THE SPINDLE
EIA/ISO CODE INPUT FUNCTION
USER MACRO W/100 VARIABLES
G65-G67
ZPC/CHANGE TO T-SLOT PALLETS
PMC PREPARATION
POSITIONS
80 TOOL CHAIN MAGAZINE
BARNES KLEEN-ALL CHIP REMOVAL
SYSTEM REAR
