MS MACHINING HMC-200
Type:
MACHINING CENTERS, HORIZONTAL, N/C & CNC (Incl Pallet Changers)
Manufacturer:
MS MACHINING
Model:
HMC-200
Condition:
Not Specified
Year:
1998
Stock #:
23615
Status:
Sold
Description:
AUTOCON CNC CNTRL; 48 TOOLS; 1 PALLET
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

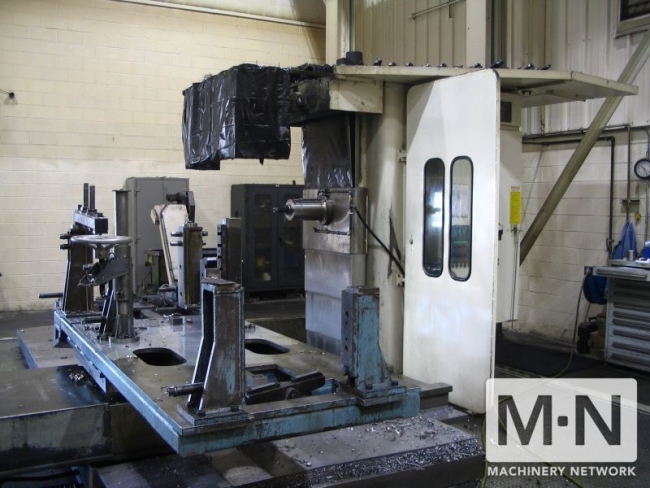

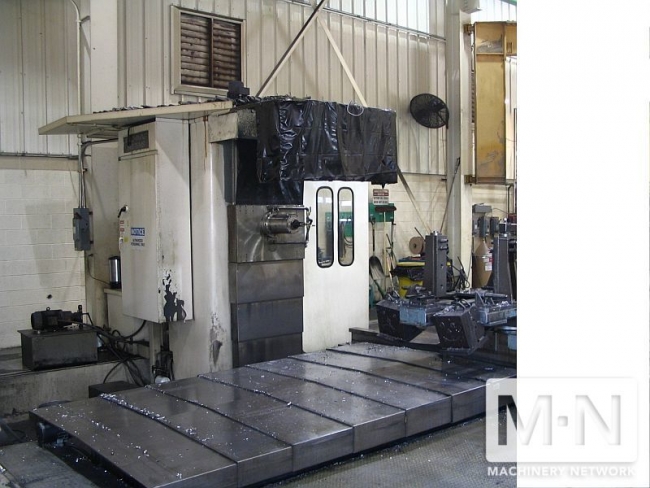

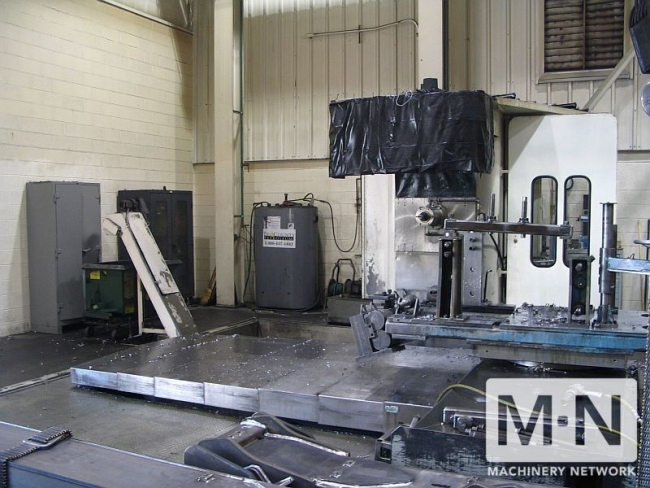

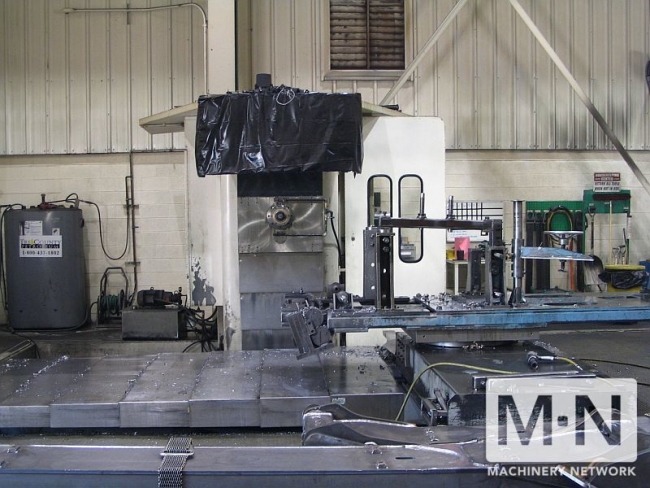

(1) USED MS MACHINING HMC-200 CNC HORIZONTAL MACHINING CENTER
NEW - 1998
SPECIFICATIONS:
TRAVELS X-AXIS: 120"
Y-AXIS: 58"
Z-AXIS: 58"
B-AXIS: 360,000 DEGREE
TABLE SIZE: 39" X 39"
PALLETS: 1
SPINDLE SPEED: 2400 RPM
CUTTING FEED RANGE: 100 IPM
RAPID TRAVERSE RATE: 250 IPM
TOOLS: 48
TOOL TAPER: CAT #50
SPINDLE MOTOR: 30 HP
MAX TOOL LENGTH: 24"
MAX TOOL DIAMETER: 10"
MAX TOOL WEIGHT: 50
TOOL CHANGE TIME: 8 SECONDS
CHIP-to-CHIP TIME: 13 SECONDS
MAX WEIGHT WORKPICE: 10000 LBS
MACHINE WEIGHT: 65000 LBS
EQUIPPED WITH:

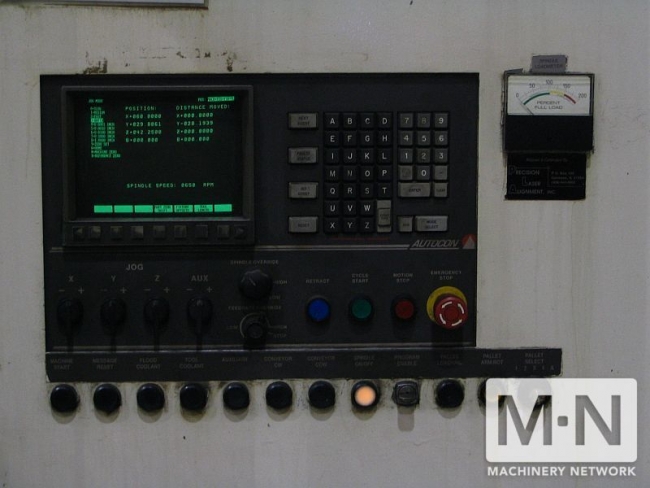

AUTOCON 50 CNC CONTROL
NEW - 1998
SPECIFICATIONS:
TRAVELS X-AXIS: 120"
Y-AXIS: 58"
Z-AXIS: 58"
B-AXIS: 360,000 DEGREE
TABLE SIZE: 39" X 39"
PALLETS: 1
SPINDLE SPEED: 2400 RPM
CUTTING FEED RANGE: 100 IPM
RAPID TRAVERSE RATE: 250 IPM
TOOLS: 48
TOOL TAPER: CAT #50
SPINDLE MOTOR: 30 HP
MAX TOOL LENGTH: 24"
MAX TOOL DIAMETER: 10"
MAX TOOL WEIGHT: 50
TOOL CHANGE TIME: 8 SECONDS
CHIP-to-CHIP TIME: 13 SECONDS
MAX WEIGHT WORKPICE: 10000 LBS
MACHINE WEIGHT: 65000 LBS
EQUIPPED WITH:
AUTOCON 50 CNC CONTROL
