IKEGAI 20"X60" A20

Type:

LATHES, ENGINE

Manufacturer:

IKEGAI

Model:

20"X60" A20

Condition:

Not Specified

Year:

1967

Stock #:

22663

Status:

Sold

Description:

20"x60", 11 3/8" OCS, 2 1/8" HTS, 10"&12" CHCKS

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

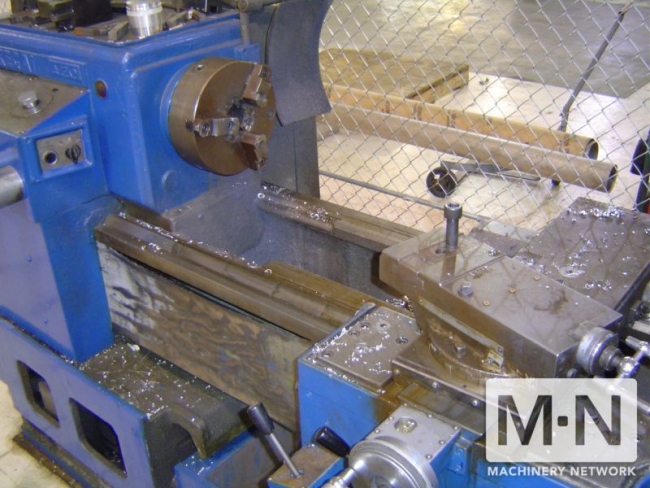

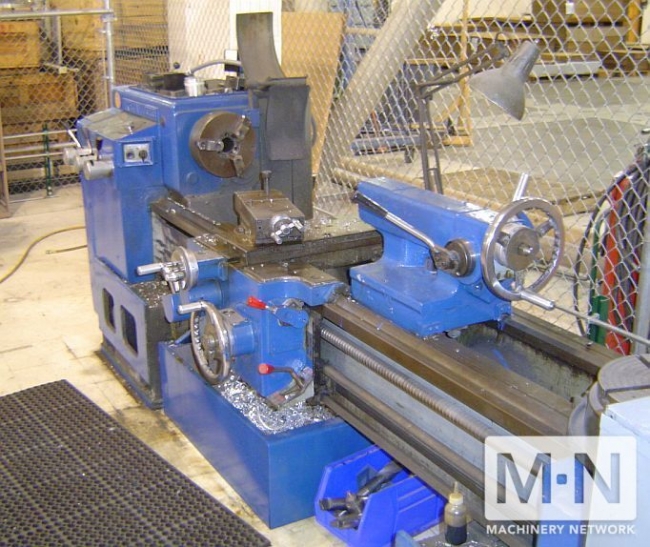

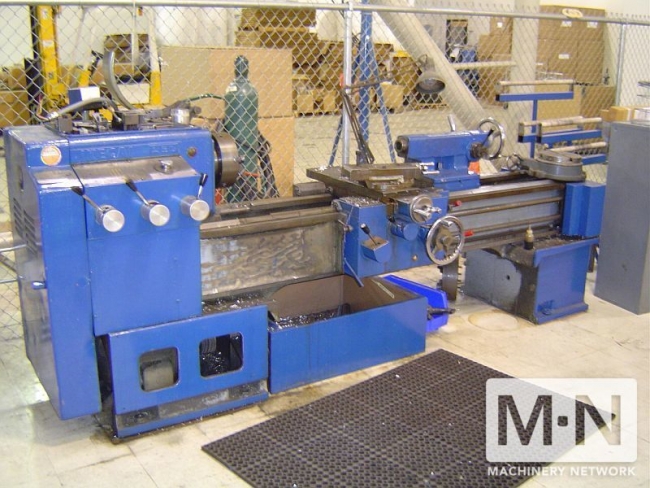

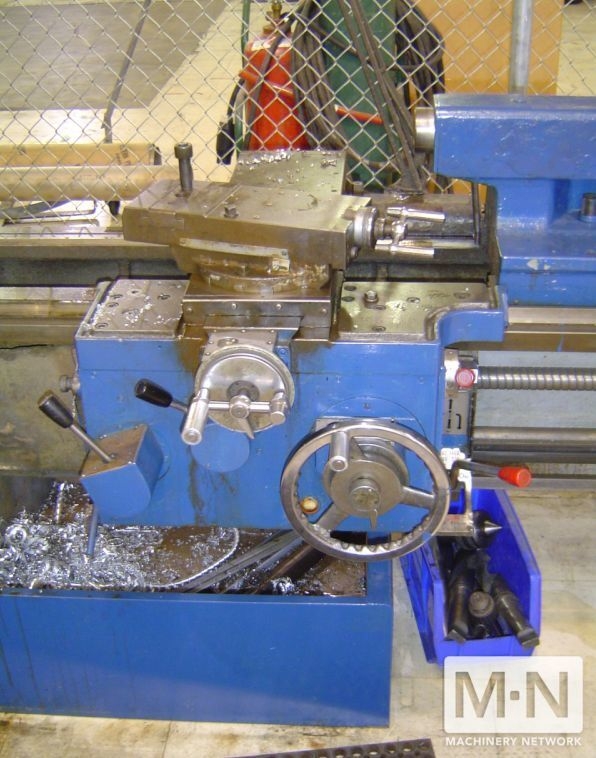

(1) USED 20"x60" IKEGAI MODEL A20 ENGINE LATHE
S/N: 10758T, NEW 1967

SPECIFICATIONS:
SWING OVER BED ....................... 20"
SWING OVER CROSS SLIDE ............... 11-3/8"
DISTANCE BETWEEN CENTERS ............. 60"
HOLE THRU SPINDLE .................... 2-1/8"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-6
SPINDLE SPEEDS (13) .................. 18 - 2,000 RPM
TAILSTOCK SPINDLE TAPER .............. #5 MORSE
TAILSTOCK SPINDLE TRAVEL ............. 5-7/8"
WIDTH OF BED ......................... 16-3/4"
FEEDS:
COARSE (24)........................ .035 - .5 IPR
NORMAL (24)........................ .0022 - .031 IPR
FINE (24).......................... .0015 - .02 IPR
THREADS:
INCH .......................... 9/16 - 80 TPI
METRIC ........................ .5 - 32 mm
DIMENSIONS ........................... 155" x 55" x 61"H APPROXIMATE WEIGHT ................... 5,700 LBS

EQUIPPED WITH:
- 10" 3-JAW CHUCK
- 12" 4-JAW CHUCK
- KDK QUICK CHANGE TOOL POST WITH HOLDERS
- INDUCTION HARDENED BEDWAYS
- MICROMETER CARRIAGE STOP
- SELF CONTAINED COOLANT SYSTEM & REMOVEABLE CHIP PAN
- 10 HP SPINDLE DRIVE MOTOR

*INSPECT IN SOUTHERN CALIFORNIA
