POREBA 39"X236" TR-100

Type:

LATHES, ENGINE

Manufacturer:

POREBA

Model:

39"X236" TR-100

Condition:

Not Specified

Year:

1972

Stock #:

20686

Status:

Sold

Description:

*sold* 39"x236", 5" hts, 50 HP

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

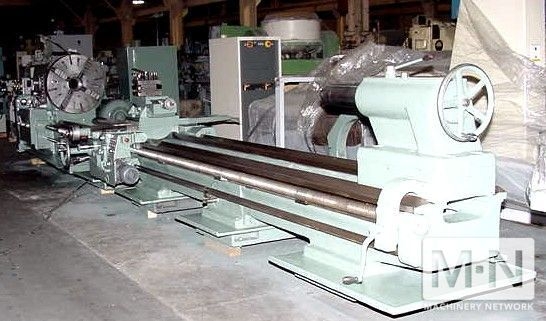

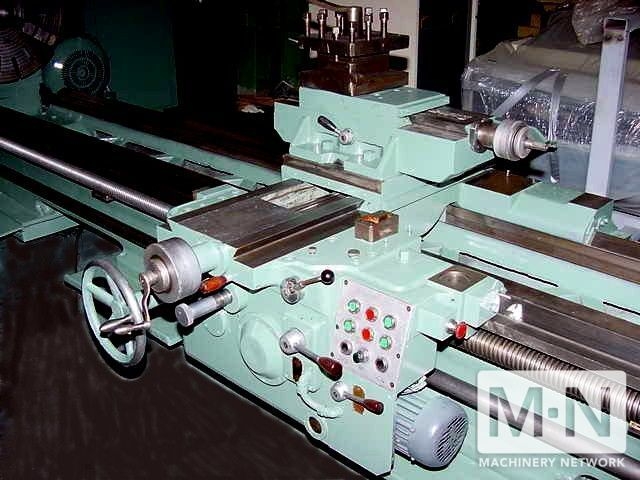

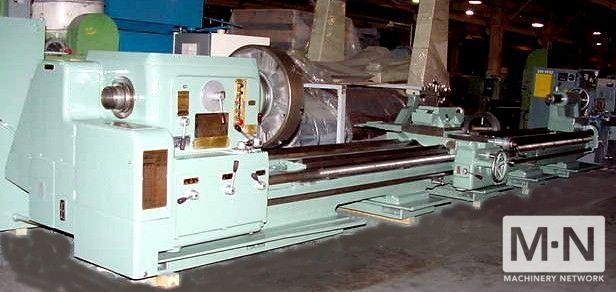

(1) USED 39"/49"x236" POREBA MODEL TR-100B/6M
ENGINE LATHE, S/N: 113955, NEW 1972

SPECIFICATIONS:
SWING OVER BED: 39 3/8"
SWING THRU GAP: 49 1/4"
SWING OVER CROSS SLIDE: 26 3/4"
DISTANCE BETWEEN CENTER: 236"
BED WIDTH: 26"
SPINDLE SPEEDS (21): 6.3-630 RPM
SPINDLE MOTOR: 50 HP
SPINDLE BORE: 5"
SPINDLE TAPER: A1-11
THREADING - INCH: 1/2-60 TPI
- METRIC: 1-120 MM/REV
FEEDS - LONGITUDINAL: .0035-400 IPR
- TRANSVERSE: .0017-200 IPR
MAX. WEIGHT BETWEEN CENTERS: 17,636 LBS
W/ 1 STEDAY REST: 22,500 LBS
W/ 2 STEADY RESTS: 26,455 LBS
DIMENSIONS: 28.5'x8'x5'H
ELECTRICS: 440V/3/60

EQUIPPED WITH:

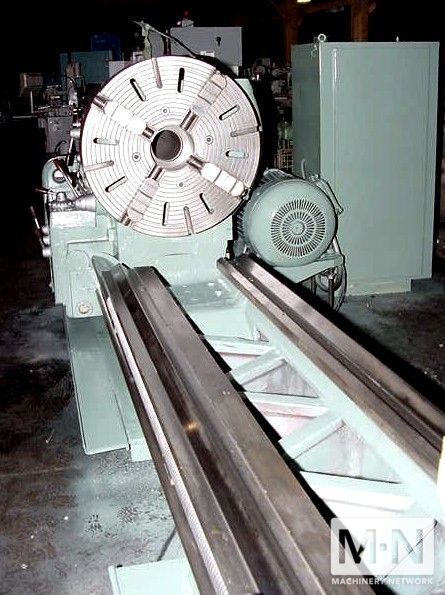

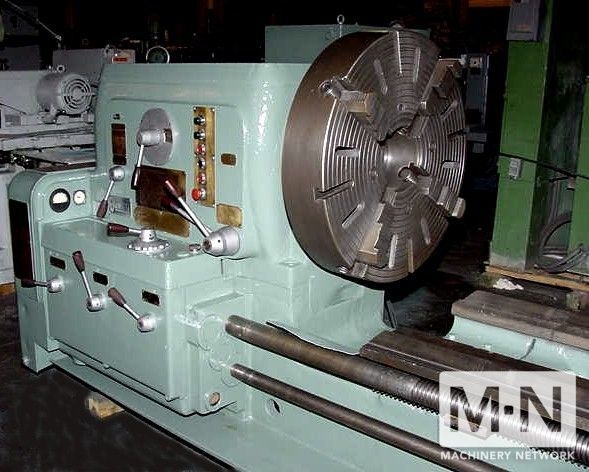

31 1/2" 4-JAW CHUCK W/5" BORE
15" 3 JAW CHUCK
(2) STEADY RESTS, 23.5" & 18" DIAM.
POWER RAPID TRAVERSE
SWIVELLING COMPOUND W/FOUR WAY TURRET TOOLPOST
REMOVABLE GAP
LIVE CENTERS

INSPECT UNDER POWER IN NEW JERSEY
LATHE IN EXCELLENT CONDITION!
