STAR SA-12

Type:

AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC

Manufacturer:

STAR

Model:

SA-12

Condition:

Not Specified

Year:

1999

Stock #:

31822

Status:

Sold

Description:

1/2" STAR SA-12, Fanuc 18iTA, 2Liv/6OD/4ID/4BW, LNS Tryton Loader

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

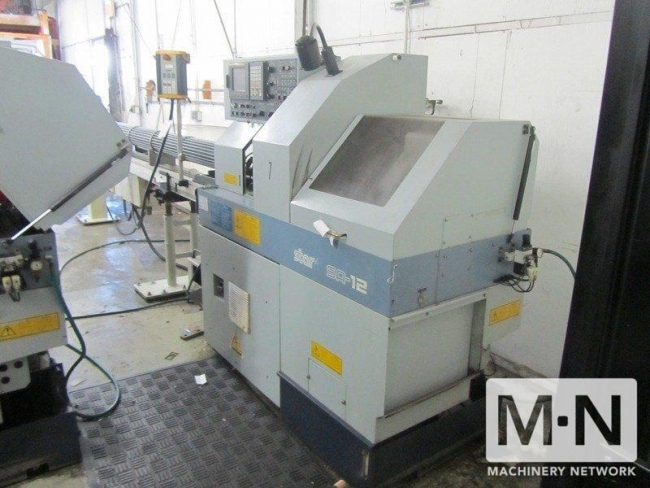

1) Used 1/2" Star SA-12 CNC Swiss Automatic Screw Machine
New 1999

Specifications:
Controllable Axes:.....................X, Y, Z, Z2

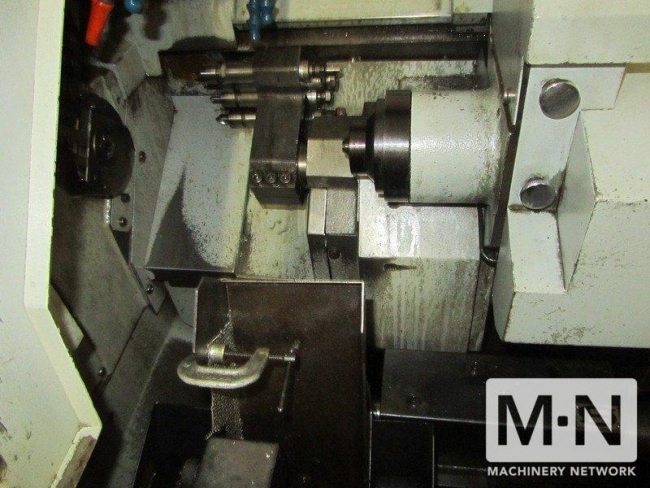

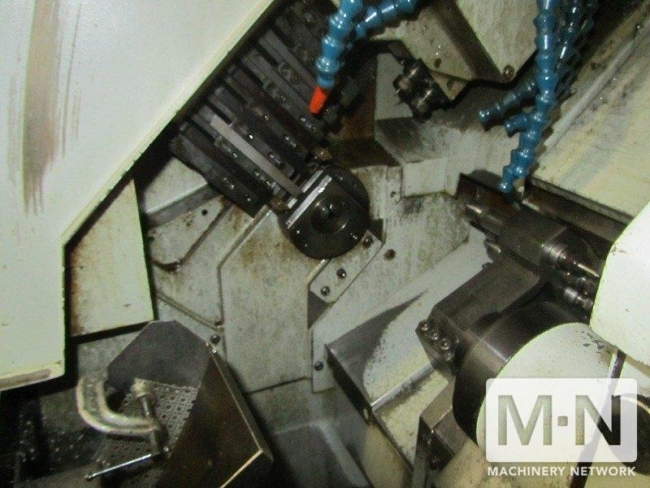

Combinations of 6-OD tools, 2-power driven tools for cross drill/mill, front
& rear facing 4-spindle attachment for simultaneous drilling

Max. Turning Diameter:..................1/2"
Max. Drilling Capacity:
Stationary Tool:....................9/32"
Power-driven Attachment:............5/32"
Main Spindle Speed:.....................500 - 12,000 rpm
Motor:.....................2.2 KW/3.7 KW
Indexing:..................15 degree
No. of Tools:...........................6 OD
........................................4 ID
........................................4 Backworking ID
........................................2 Cross Mill/Drill
Sub-spindle: Turning Diameter:..........1/2"
Speed:..........500 - 8,000 rpm
Motor: .........5 KW
Dimensions (approx.):...................83"l x 31"w x 65"h
Weight (approx.):.......................3,740 lbs
Machine:................................84" x 32" x 68" 3,800 lbs
Chip Pan:...............................32" x 16" 100 lbs
Barfeed:...............................208" x 20" x 46" 2,500 lbs

Equipped With (to be confirmed by buyer):
Fanuc 18iTA

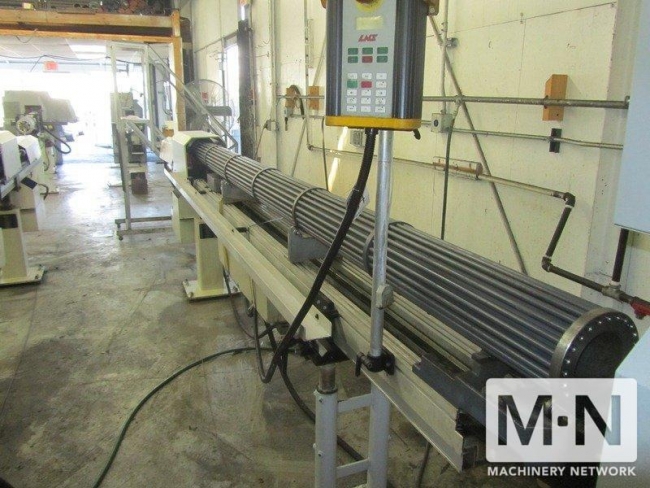

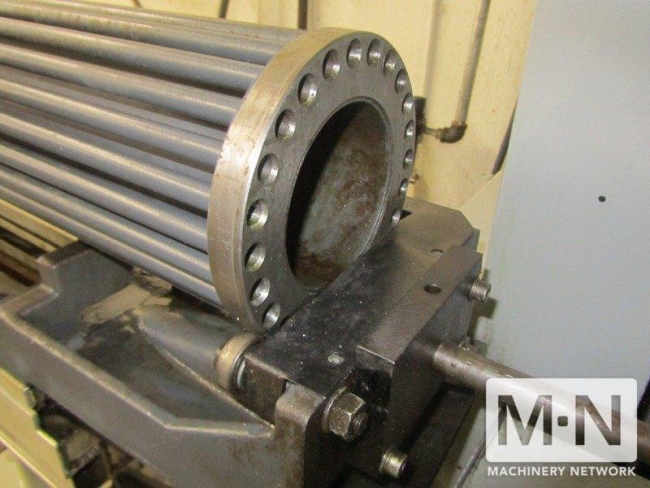

LNS Tryton SST-5 Gatling Style Loader w/ 24tube x 14mm diam barrel
