STAR SV32J
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
STAR
Model:
SV32J
Condition:
Not Specified
Year:
2000
Stock #:
31825
Status:
Sold
Description:

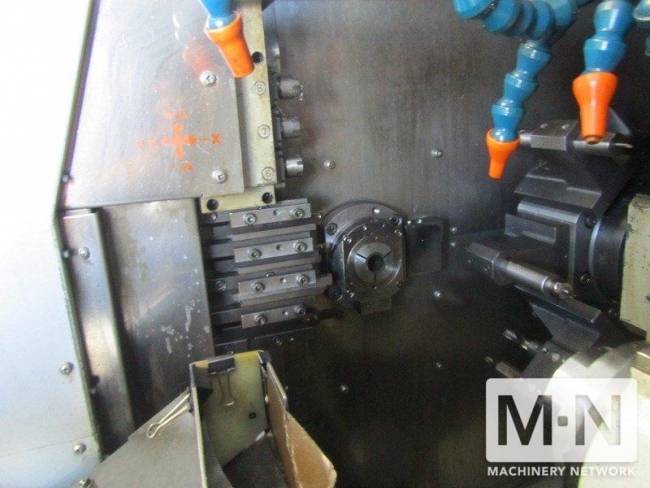

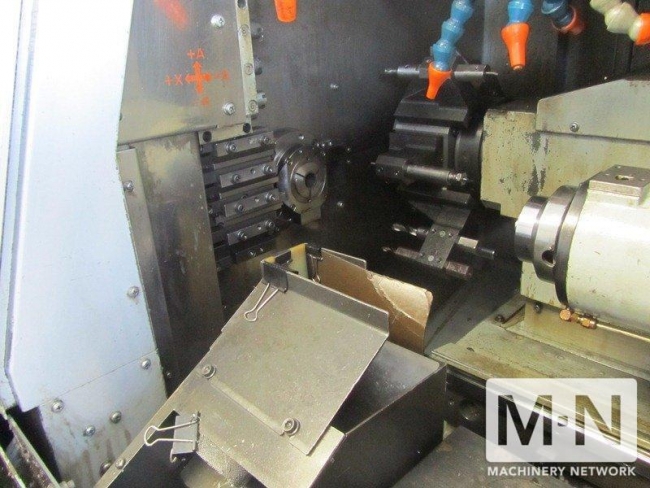

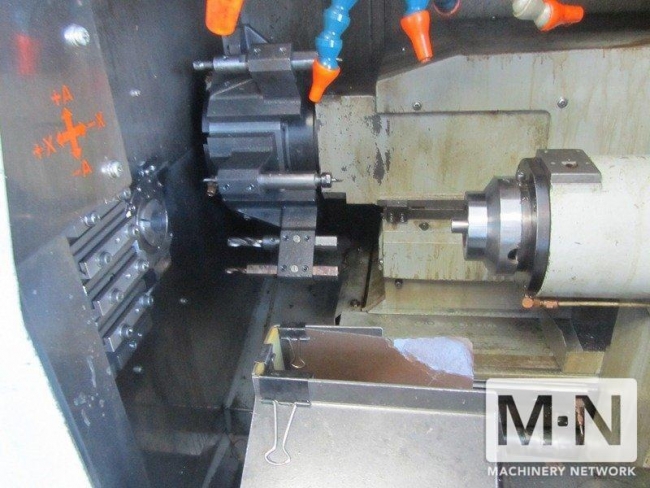

1 1/4" STAR SV32J, Fanuc 18iTA, Gang/Turret, 3 Live Tools, 8-Axis, LNS HYS
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

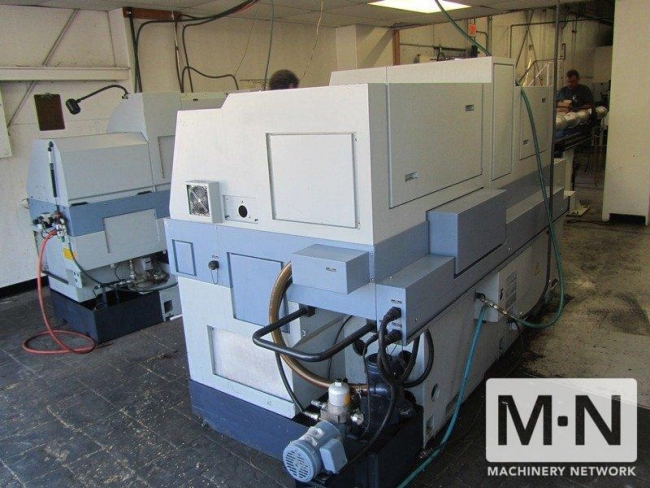

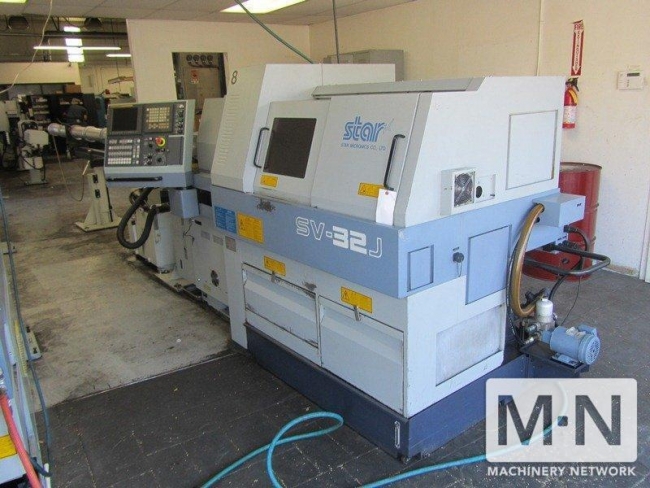

1) Used 1 1/4" Star SV32J CNC Automatic Screw Machine
New 2000
Specifications:
Max Turning Diameter:...................1-1/4"
Headstock Stroke:.......................12-13/64"
with gripping unit:.................11-4/5"
Headstock Spindle Speeds:...............350 - 7,000 rpm
Spindle Indexing:.......................15 deg
Drilling Capacity:Stationary Tool ......3/4"
Power Driven Tool....Gang Tool Post 5/16"
Tools:.................................4 tools+3 power-driven opt
Turret..............................8 stations
Tool Shank:.............................16 x 135mm
Turret..............................16 x 70mm
Tapping Capacity:Turret M...............12 x P1.75
Power Driven Tool....Gang Tool Post M6 x P1.0 opt
Milling Capacity:.......................25/64"
Max. Die Cutting Capacity:..............M12 x P1.75
Main Spindle Motor:.....................5.5kw /7.5kw (30 min)
Main Spindle Bore Diameter:.............1 1/2"
Tool Shank:.............................16 x 135mm
Turret..............................16 x 70mm
Gang Tool Post Power Driven Tool:Spindle Speed max. 6,000min opt
Motor...............................0.5kw (servo drive)
Power Consumption:......................8.0kva
Backworking Attachment:
Max. Chucking Cap.:....................1-1/4"
Drilling Capacity:.....................1/2"
Tapping Capacity:......................M10 x P1.5
Spindle Speeds:........................350 - 7000 rpm
Sub-spindle Motor:.....................2.2kw/3.7kw(15min)
Dimensions, approx (l x w x h):.........7' x 4' x 5.5'+
Weight (approx):........................7100 lbs.
Equipped with (to be confirmed by buyer):

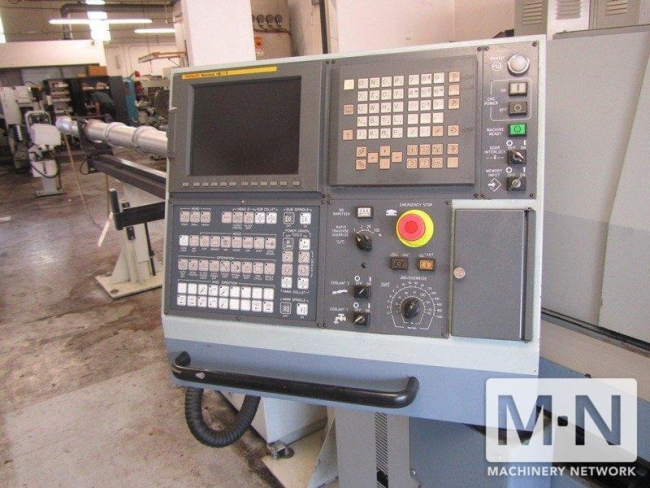

Fanuc 18i-TA Control

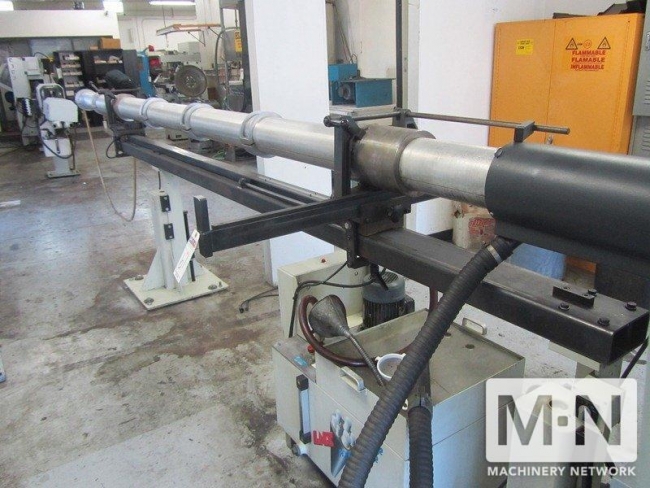

LNS HYS 6.32 Hydrodynamic Barfeed (S/N 0149)
Machine: 128" x 52" x 70" 7,100 lbs
Barfeed on stands: 200" x 36" x 48" 1,800 lbs
Barfeed Hydraulic Tank: 36" x 24" x 36", 750 lbs
Chip Pan: 52" x 44" x 22" 350 lbs
New 2000
Specifications:
Max Turning Diameter:...................1-1/4"
Headstock Stroke:.......................12-13/64"
with gripping unit:.................11-4/5"
Headstock Spindle Speeds:...............350 - 7,000 rpm
Spindle Indexing:.......................15 deg
Drilling Capacity:Stationary Tool ......3/4"
Power Driven Tool....Gang Tool Post 5/16"
Tools:.................................4 tools+3 power-driven opt
Turret..............................8 stations
Tool Shank:.............................16 x 135mm
Turret..............................16 x 70mm
Tapping Capacity:Turret M...............12 x P1.75
Power Driven Tool....Gang Tool Post M6 x P1.0 opt
Milling Capacity:.......................25/64"
Max. Die Cutting Capacity:..............M12 x P1.75
Main Spindle Motor:.....................5.5kw /7.5kw (30 min)
Main Spindle Bore Diameter:.............1 1/2"
Tool Shank:.............................16 x 135mm
Turret..............................16 x 70mm
Gang Tool Post Power Driven Tool:Spindle Speed max. 6,000min opt
Motor...............................0.5kw (servo drive)
Power Consumption:......................8.0kva
Backworking Attachment:
Max. Chucking Cap.:....................1-1/4"
Drilling Capacity:.....................1/2"
Tapping Capacity:......................M10 x P1.5
Spindle Speeds:........................350 - 7000 rpm
Sub-spindle Motor:.....................2.2kw/3.7kw(15min)
Dimensions, approx (l x w x h):.........7' x 4' x 5.5'+
Weight (approx):........................7100 lbs.
Equipped with (to be confirmed by buyer):
Fanuc 18i-TA Control
LNS HYS 6.32 Hydrodynamic Barfeed (S/N 0149)
Machine: 128" x 52" x 70" 7,100 lbs
Barfeed on stands: 200" x 36" x 48" 1,800 lbs
Barfeed Hydraulic Tank: 36" x 24" x 36", 750 lbs
Chip Pan: 52" x 44" x 22" 350 lbs
