WEILER E70X3000
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
WEILER
Model:
E70X3000
Condition:
Not Specified
Year:
2011
Stock #:
38222
Status:
Sold
Description:
28" X 118" , 8.5" spindle bore, 17" OCS, Siemens
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

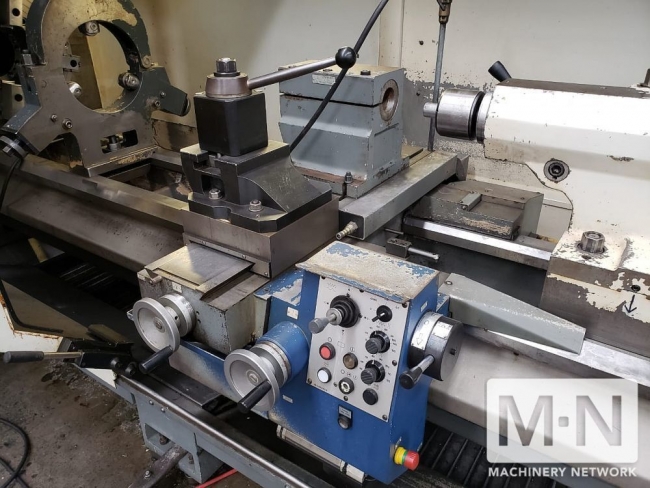

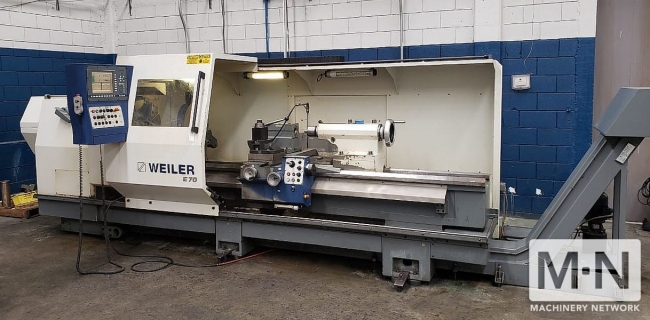

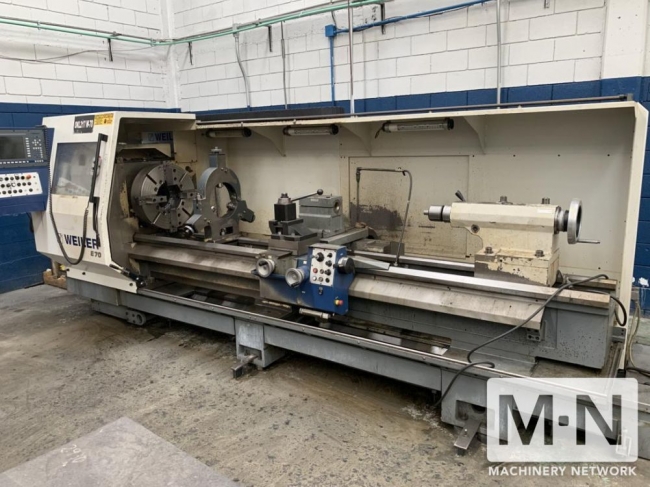

(1) Used Weiler E70x3000 CNC Hollow Spindle Flat Bed Lathe
New 2011
Specifications:
Swing: 28.35 Swing over cross slide: 17" Cross slide travel: 16.1" Distance between centers:
118"
Spindle - Bore : 8.5" - Motor: 40 - 50 HP - Speeds - low range: 1 - 280 RPM - Speed - high range: 4 - 900 RPM - Nose: A2-15 - Max torque: 3172 lb/ft Feed range: .0001 - 1.96 IPR Threading - Inch: 112 - 1/64 TPI - Metric: 0.1 - 2000 MM - Modular: 0.002" - 2.2" Tailstock - diameter: 4.5" - travel 8.9" - taper: 6MT Electrical requirements: 400V/3/60 Machine dimensions: 208"L x 98"W x 77"H Approx. weight: 15,000 lbs
Equipped with:

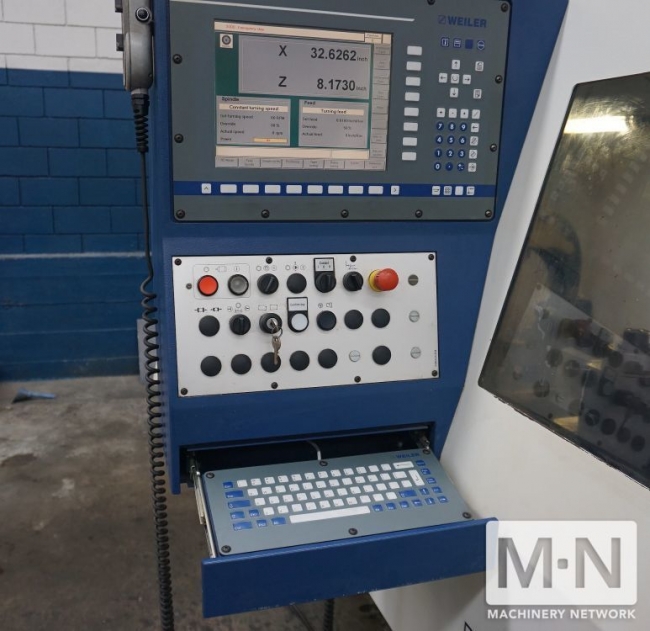

Siemens 840D SL CNC control
Teach-In function & electronic hand wheels

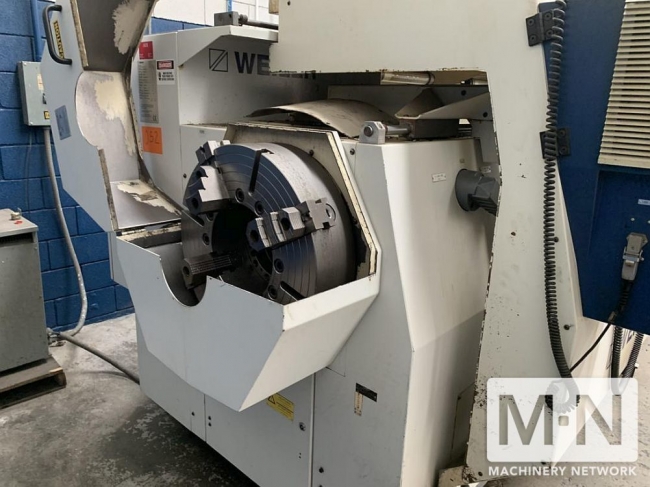

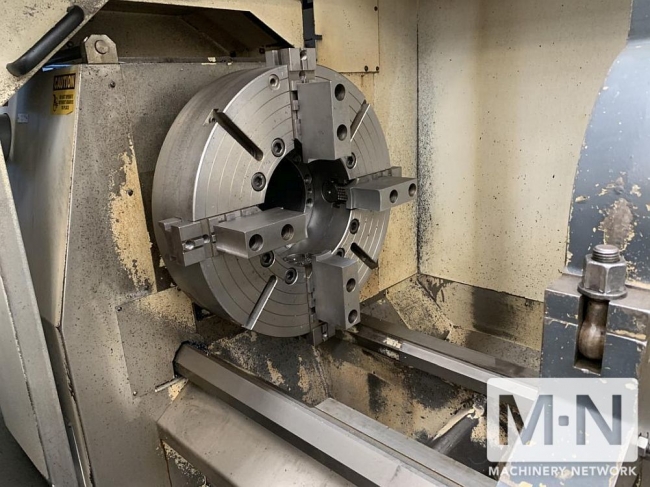

24" 4-Jaw chucks mounted front & rear
4-way Quick Change tool post
Boring bar holder
Steady rest
Chip conveyor
New 2011
Specifications:
Swing: 28.35 Swing over cross slide: 17" Cross slide travel: 16.1" Distance between centers:
118"
Spindle - Bore : 8.5" - Motor: 40 - 50 HP - Speeds - low range: 1 - 280 RPM - Speed - high range: 4 - 900 RPM - Nose: A2-15 - Max torque: 3172 lb/ft Feed range: .0001 - 1.96 IPR Threading - Inch: 112 - 1/64 TPI - Metric: 0.1 - 2000 MM - Modular: 0.002" - 2.2" Tailstock - diameter: 4.5" - travel 8.9" - taper: 6MT Electrical requirements: 400V/3/60 Machine dimensions: 208"L x 98"W x 77"H Approx. weight: 15,000 lbs
Equipped with:
Siemens 840D SL CNC control
Teach-In function & electronic hand wheels
24" 4-Jaw chucks mounted front & rear
4-way Quick Change tool post
Boring bar holder
Steady rest
Chip conveyor
