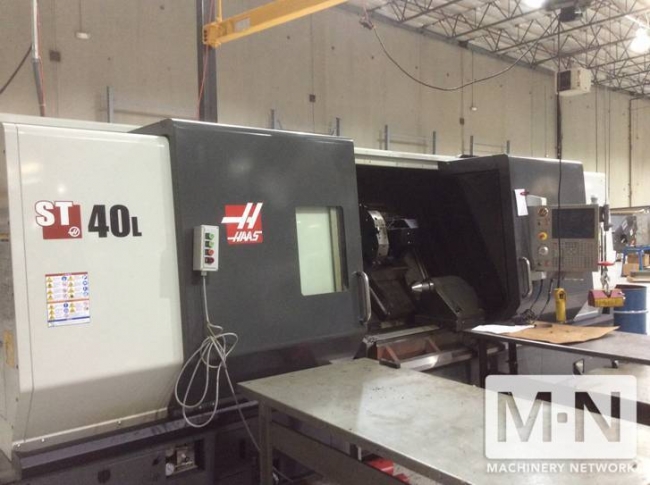

HAAS ST-40L
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HAAS
Model:
ST-40L
Condition:
Not Specified
Year:
2014
Stock #:
34281
Status:
Sold
Description:
HAAS ST-40L BIG BORE, 18" SELF CONTAINED CHUCK
Location:
Nevada, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

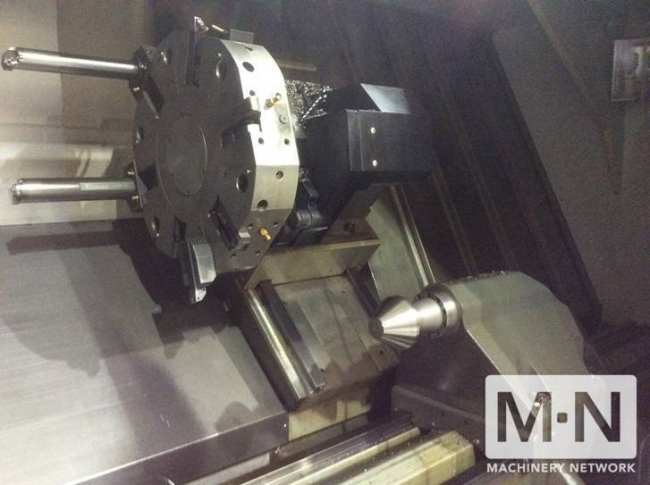

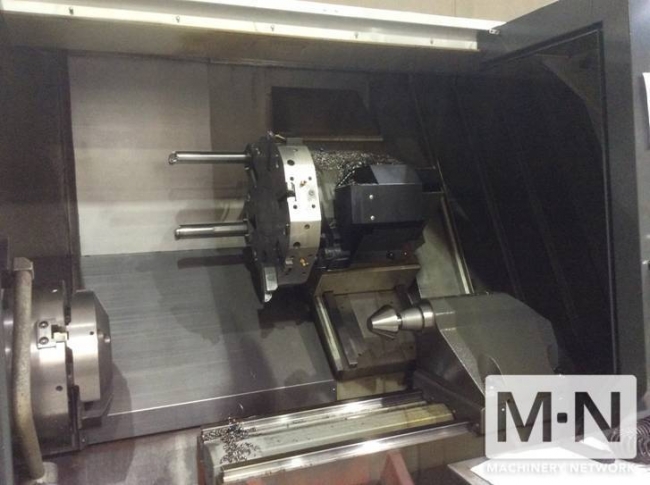

(1) HAAS ST40L WITH 7.0" BIG BORE CNC LATHE W/ LIVE TOOLING
NEW 2014 WITH SECOND YEAR HAAS WARRANTY INCLUDED !!
SPECIFICATIONS:
TURNING DIAMETER.................25.500"
TURNING LENGTH...................80.00"
MAXIMUM SWING....................34.500"
CHUCK DIAMETER...................18.00" (SELF CONTAINED)
BIG BORE OPTION..................7.0" ($24,595 Haas Option)
SPINDLE NOSE....................A2-11
RPM..............................1,400
HORSE POWER......................40 (included Upgrade w/ Big Bore)
GEAR BOX.........................2 SPEED
X AXIS TRAVEL....................17"
Z AXIS TRAVEL....................44"
RAPIDS...........................710 IPM
EQUIPPED WITH:
HYBRID BOT/VDI 12 STATIONS 6 VDI40+6BOT
VDI TOOL HOLDER KIT (Included with C axis Option)
HIGH TORQUE LIVE TOOLING WITH C AXIS ($29,995 Haas Option)
PROGRAMMABLE SERVO TAILSTOCK, MT5
HIGH PRESSURE COOLANT SYSTEM 300 PSI ($6,195 Haas Option)
AUTOMATIC TOOL SETTER ($4,195 Haas Option)
BELT TYPE CHIP CONVEYOR ($5,095 Haas Option)
AXIAL DRIVEN TOOL HOLDER, ER-32 ($1,995 Haas Option)
RADIAL DRIVEN TOOL HOLDER, ER-32 ($3,595 Haas Option)
USB PORT
COLOR REMOTE JOG HANDLE
RIGID TAPPING
MEMORY LOCK KEY SWITCH
15" COLOR LCD MONITOR
TOOL CART ($895 Haas Option)
1 BOLT ON 2.5" BORING BAR HOLDER ($595 Haas Option)
STEADY REST PROVISION ($7,495 Haas Option)
ATS 18" Self Contained Big Bore Air Chuck ($30,930 Option Price)
Jaw Jogging ($2,990 Haas Option)
VDI Tool Tray ($295 Haas Option)
Second Year Extended Warranty ($8,795 Haas Option)
LOW LOW HOURS-CALL TO INSPECT (525 Hours)
NEW REPLACEMENT COST ($296,070)
NEW 2014 WITH SECOND YEAR HAAS WARRANTY INCLUDED !!
SPECIFICATIONS:
TURNING DIAMETER.................25.500"
TURNING LENGTH...................80.00"
MAXIMUM SWING....................34.500"
CHUCK DIAMETER...................18.00" (SELF CONTAINED)
BIG BORE OPTION..................7.0" ($24,595 Haas Option)
SPINDLE NOSE....................A2-11
RPM..............................1,400
HORSE POWER......................40 (included Upgrade w/ Big Bore)
GEAR BOX.........................2 SPEED
X AXIS TRAVEL....................17"
Z AXIS TRAVEL....................44"
RAPIDS...........................710 IPM
EQUIPPED WITH:
HYBRID BOT/VDI 12 STATIONS 6 VDI40+6BOT
VDI TOOL HOLDER KIT (Included with C axis Option)
HIGH TORQUE LIVE TOOLING WITH C AXIS ($29,995 Haas Option)
PROGRAMMABLE SERVO TAILSTOCK, MT5
HIGH PRESSURE COOLANT SYSTEM 300 PSI ($6,195 Haas Option)
AUTOMATIC TOOL SETTER ($4,195 Haas Option)
BELT TYPE CHIP CONVEYOR ($5,095 Haas Option)
AXIAL DRIVEN TOOL HOLDER, ER-32 ($1,995 Haas Option)
RADIAL DRIVEN TOOL HOLDER, ER-32 ($3,595 Haas Option)
USB PORT
COLOR REMOTE JOG HANDLE
RIGID TAPPING
MEMORY LOCK KEY SWITCH
15" COLOR LCD MONITOR
TOOL CART ($895 Haas Option)
1 BOLT ON 2.5" BORING BAR HOLDER ($595 Haas Option)
STEADY REST PROVISION ($7,495 Haas Option)
ATS 18" Self Contained Big Bore Air Chuck ($30,930 Option Price)
Jaw Jogging ($2,990 Haas Option)
VDI Tool Tray ($295 Haas Option)
Second Year Extended Warranty ($8,795 Haas Option)
LOW LOW HOURS-CALL TO INSPECT (525 Hours)
NEW REPLACEMENT COST ($296,070)
