HAAS TL-2
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
HAAS
Model:
TL-2
Condition:
Not Specified
Year:
2016
Stock #:
37397
Status:
Sold
Description:
3" spindle bore, 48" dist between centers, Rigid tapping, 10" -3jaw manual chuck
Location:
Ontario, Canada
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

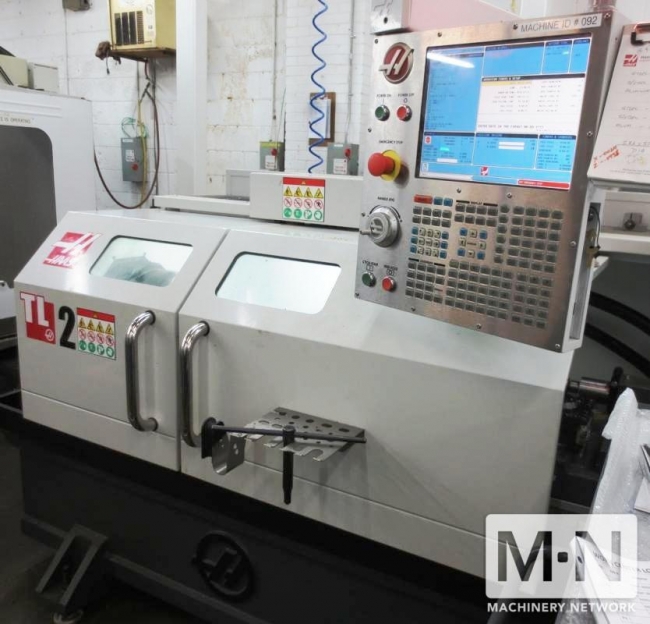

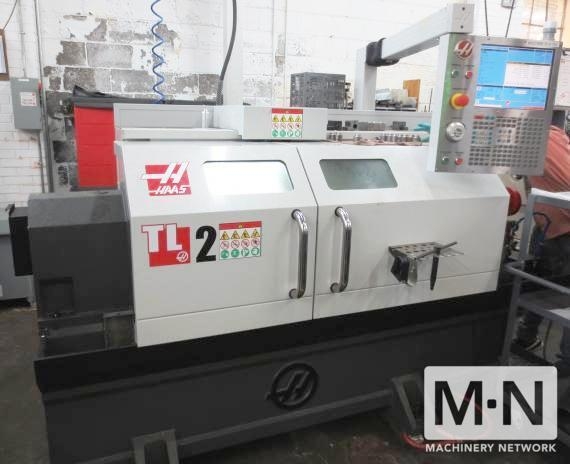

(1) HAAS TL-2 CNC LATHE
NEW 2016
SPECIFICATIONS:
SWING OVER APRON......................20"
SWING OVER CROSS SLIDE................11"
DISTANCE BETWEEN CENTERS..............48"
SPINDLE BORE..........................3"
MAX. CUTTING DIA. ( VARIES W/TURRET )..16"
X-AXIS TRAVEL..........................8"
Z-AXIS TRAVEL.........................48"
RAPIDS ON X-AXIS......................450"/MIN.
RAPIDS ON Z-AXIS......................450"/MIN
MAX. THRUST X.........................3,894 LBS.
MAX. THRUST Z.........................1,947 LBS.
SPINDLE SPEEDS........................2000 RPM
SPINDLE MOTOR.........................10 HP

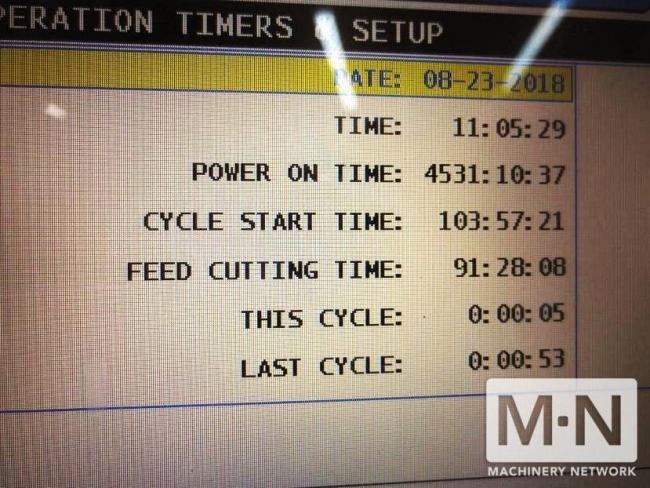

* MACHINE IS IN LIKE NEW CONDITION WITH
APPROX. 100 HOURS *
EQUIPPED WITH:

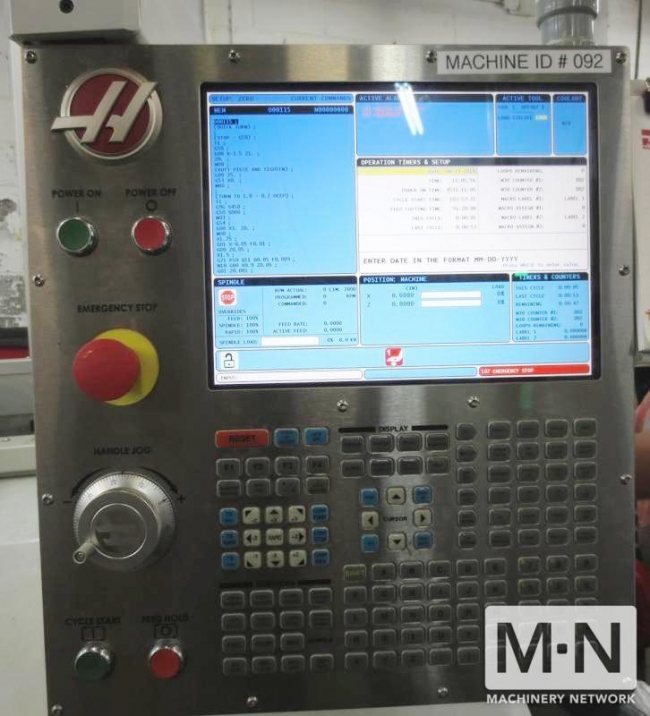

HAAS CNC CONTROL
TT4 ; 4-STATION AUTOMATIC TURRET FOR 3/4" TURNING TOOLS
RIGID TAPPING
INTUITIVE PROGRAMMING SYSTEM
15" LCD MONITOR
10" 3-JAW MANUAL CHUCK
MANUAL TAILSTOCK, MT4 MANUAL QUILL
WORKLIGHT
COOLANT PUMP KIT
MANUAL; HANDWHEELS
NEW 2016
SPECIFICATIONS:
SWING OVER APRON......................20"
SWING OVER CROSS SLIDE................11"
DISTANCE BETWEEN CENTERS..............48"
SPINDLE BORE..........................3"
MAX. CUTTING DIA. ( VARIES W/TURRET )..16"
X-AXIS TRAVEL..........................8"
Z-AXIS TRAVEL.........................48"
RAPIDS ON X-AXIS......................450"/MIN.
RAPIDS ON Z-AXIS......................450"/MIN
MAX. THRUST X.........................3,894 LBS.
MAX. THRUST Z.........................1,947 LBS.
SPINDLE SPEEDS........................2000 RPM
SPINDLE MOTOR.........................10 HP
* MACHINE IS IN LIKE NEW CONDITION WITH
APPROX. 100 HOURS *
EQUIPPED WITH:
HAAS CNC CONTROL
TT4 ; 4-STATION AUTOMATIC TURRET FOR 3/4" TURNING TOOLS
RIGID TAPPING
INTUITIVE PROGRAMMING SYSTEM
15" LCD MONITOR
10" 3-JAW MANUAL CHUCK
MANUAL TAILSTOCK, MT4 MANUAL QUILL
WORKLIGHT
COOLANT PUMP KIT
MANUAL; HANDWHEELS
